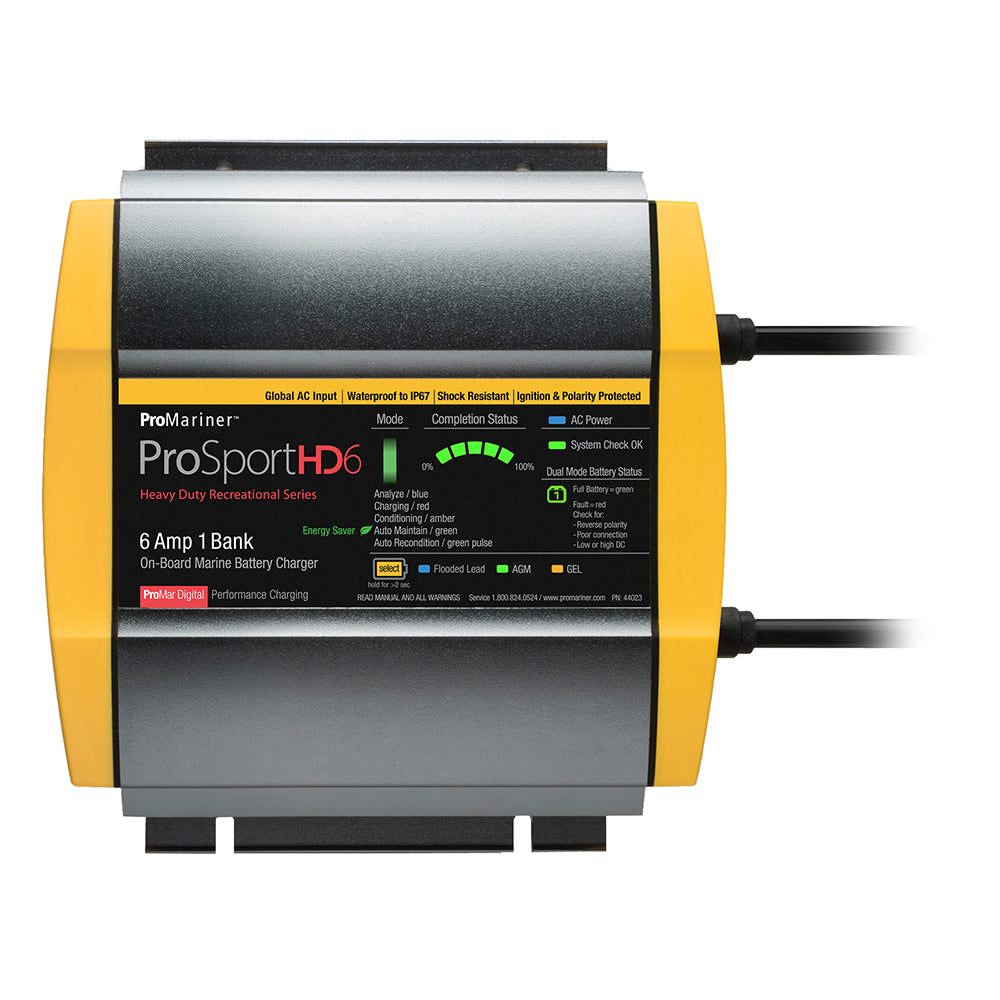

ProMariner ProSportHD 6 Global Gen 4 - 6 Amp - 1 Bank Battery Charger

The ProSportHD 6 Global Gen 4 is a robust 6 Amp, 1 Bank Battery Charger designed specifically for marine and boating applications. Engineered with a tri-surface heatsink design, it ensures efficient and rapid charging while maintaining optimal battery health.

Advanced Charging Technology

ProSportHD Generation 4 features a microprocessor-controlled charging system that delivers precise and fast charging. Its tri-surface heatsink design optimizes cooling, allowing the charger to maintain true rated amp output during charge mode. This heavy-duty yet lightweight design is perfect for the demanding environments of marine applications.

Smart Digital Features

Equipped with an enhanced microprocessor and sophisticated software, the ProSportHD 6 Global Gen 4 offers a range of digital features:

• Charge Completion Monitor: Fuel gauge-style display provides real-time charge status.
• Charge Mode Selection: Three digitally selectable performance profiles for Flooded (lead acid), AGM, and GEL batteries. HP AGM profile is exclusive to the ProSportHD 20 Dual.
• Fault Indicators: Individual indicators alert you to any battery or charger issues.
• Fully Automatic 5-Stage Charging: Enhances battery performance and extends battery life through a comprehensive charging process.

Energy Efficiency

The charger’s Auto-Maintain Energy Saver Mode monitors battery status and only maintains charge when necessary, significantly reducing AC power consumption. This ensures your batteries remain in optimal condition without wasting energy.

Durable and Reliable Construction

Designed for harsh marine environments, the ProSportHD 6 Global Gen 4 is built with industrial-grade jacketed DC and AC power cables. These cables feature molded strain reliefs and wire splitters for added durability and ease of installation.

User-Friendly Display and Controls

The expanded LED display offers a multi-functional status bar with:

• Completion Status Gauge: Displays the charge completion in a fuel gauge style.
• Multi-Stage Mode Indicators: Four-color LED status bar indicates different charging stages.
• System and Battery Status: Real-time indicators for system checks and individual battery status.
• Battery Type Indication: Easily identify the selected battery type.

Safety and Protection

The ProSportHD 6 Global Gen 4 includes multiple built-in safety features to protect both the charger and your batteries:

• Dual inline waterproof fuses
• Reverse polarity protection
• Over-temperature protection
• Over-current and over-voltage protection
• Ignition protection

Certified to Marine UL 1236 standards, and listed by CEC, DOE, and FCC Class B, ensuring top-notch safety and reliability.

Technical Specifications

Feature	Specification
Charging Banks	1
Portable	No
Charger Output Voltage	12V
Charger Output - Amps	6A
Charger Input - Voltage	120V
DC Voltage Systems	12V
No. of Batteries	1
AC & DC Cable Length	6'
Size	7.9" x 7.7" x 2.9"
Weight	3.8 lbs
AC In	100-240V AC 50/60Hz
AC Plug	IEC C14
Box Dimensions	6"H x 9"W x 10"L
Box Weight	4.7 lbs
UPC	031669440234

Installation and Operation

The ProSportHD 6 Global Gen 4 comes pre-wired with 6’ AC and DC cables, making installation straightforward and hassle-free. Whether you're upgrading your current system or setting up a new one, this charger integrates seamlessly into your marine setup.

Battery Compatibility

Compatible with a wide range of marine batteries, including:

• Group 24–31 Flooded Batteries
• AGM Batteries
• HP AGM Batteries
• GEL Batteries

Warranty

The ProSportHD 6 Global Gen 4 comes with a 3-Year Warranty, ensuring peace of mind and confidence in your purchase.
