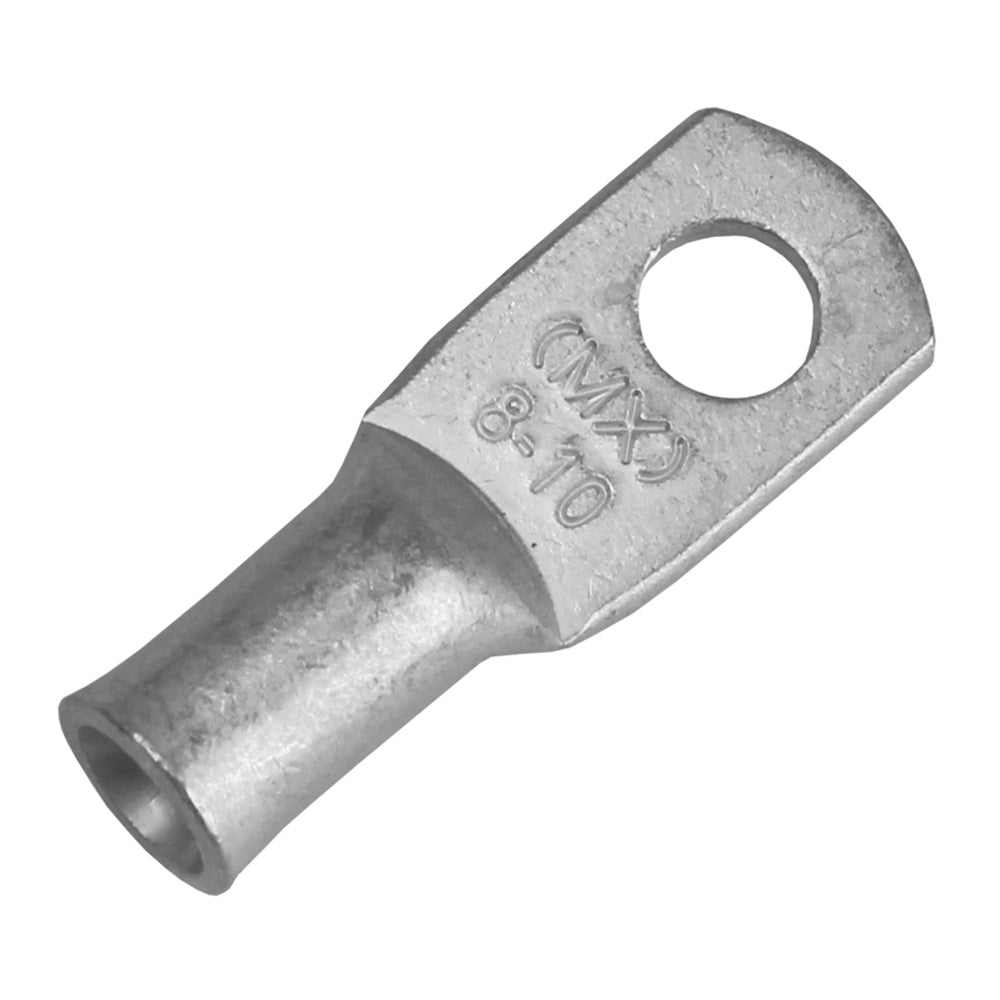

Pacer Tinned Lug 8 AWG - #10 Stud Size - 10 Pack

Ensure reliable and durable electrical connections on your marine vessel with our Tinned Lug 8 AWG - #10 Stud Size, available in a convenient 10-pack. Specifically designed for the harsh marine environment, these closed-end lugs provide superior performance and longevity, making them an essential component for any boating electrical system.

Why Choose Tinned Lug 8 AWG?

Creating a strong and waterproof connection is crucial for marine applications. Our closed-end lugs are tin-plated and feature seamless construction, eliminating exposed seams that can corrode in saltwater environments. When combined with epoxy heat shrink, these lugs fully envelop the conductor, ensuring that your connections remain protected against the elements.

Installation is straightforward: simply strip your wire to the appropriate length, slide the lug over the exposed conductor ensuring the insulation meets the lug's edge, and crimp using the correct tool. For added durability, apply epoxy-lined heat shrink. Our lugs are compatible with wire sizes ranging from 8 AWG to 4/0 AWG and come in various stud sizes to meet your specific needs.

Product Features

• ✔️ Tin Plated for corrosion resistance
• ✔️ No Exposed Seams for enhanced durability
• ✔️ Rated for 600V, suitable for high-power applications
• ✔️ Made from Seamless 99.9% Copper Tubes for higher conductivity
• ✔️ Designed for Stranded Copper Wires ensuring secure connections
• ✔️ Larger Pad Area for better electrical contact
• ✔️ Cable Size and Stud Hole Stamped on Pad for easy identification
• ✔️ Crimp or Solder capable for versatile installation
• ✔️ Controlled Flare for easy cable insertion
• ✔️ Tight Barrel to Pad Transition for longer usable barrel length

Compliance and Standards

• 🔹 E.T.P. (Electrolytic Tough Pitch) CDA-110
• 🔹 ASTM-B-152 Copper rated at 100% conductivity
• 🔹 UL & CSA Approved
• 🔹 RoHS Compliant
• 🔹 Exceeds SAE Conductivity Standards J163 & J1811

Specifications

Attribute	Details
Wire AWG	8
Stud Size	#10
Length	1.187”
Width	0.438”
Clearance	0.344”
Package Size	10
Heat Shrink	No
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.15 lbs
UPC	840248205917

Installation Guide

1. Strip your wire or cable to the appropriate length.
2. Slide the closed-end lug over the exposed conductor, ensuring the insulation meets the lug’s edge.
3. Crimp the lug using the correct crimping tool for a secure connection.
4. For added protection, apply epoxy-lined heat shrink to fully envelop the connection.

Additional Resources

For more detailed information, download our comprehensive brochure:

Brochure (PDF)

Watch our installation video to see the lugs in action:

If you need assistance selecting the right closed-end lug for your marine electrical system, our Pacer experts are here to help. Contact us today with any questions you may have.
