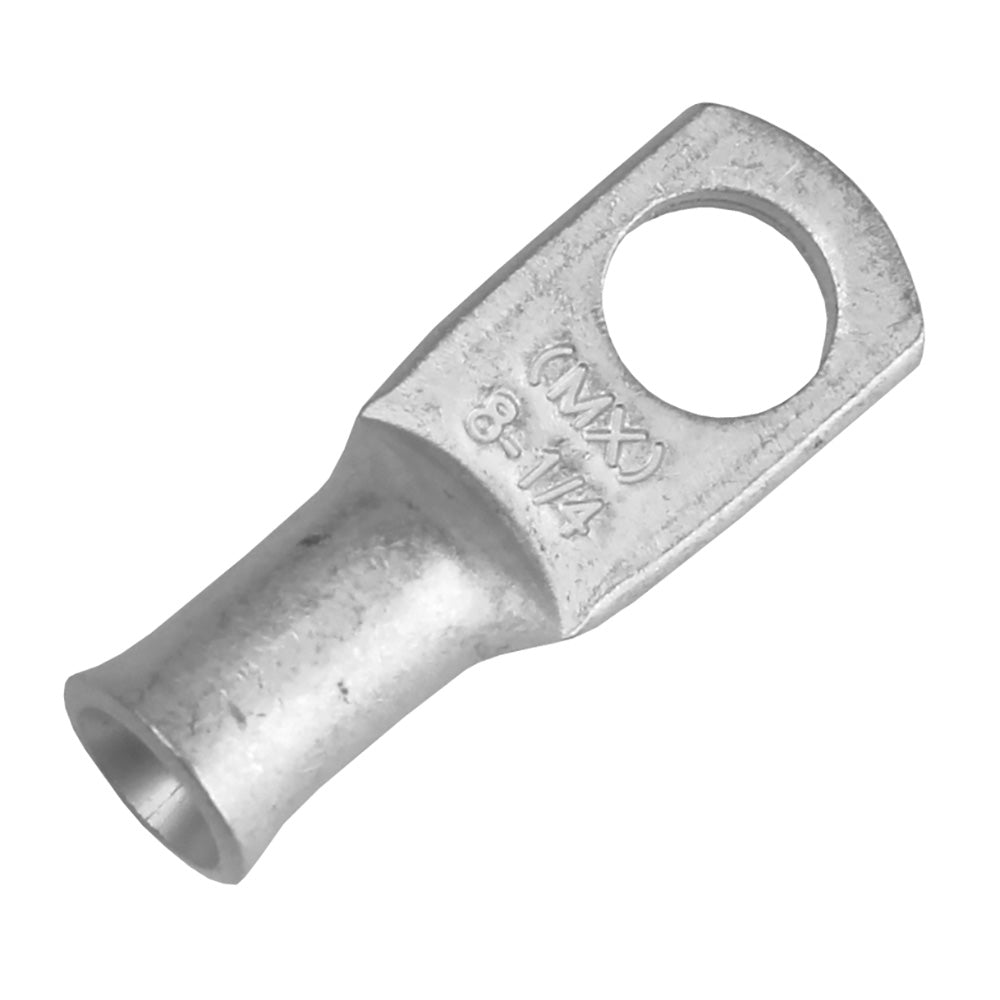

Pacer Tinned Lug 8 AWG - 1/4" Stud Size - 10 Pack

Ensure reliable and waterproof electrical connections on your vessel with our Tinned Lug 8 AWG closed-end lugs. Specifically designed for marine applications, these lugs provide exceptional durability and corrosion resistance, making them the perfect choice for boating enthusiasts seeking long-lasting performance in harsh marine environments.

Superior Marine-Grade Connection

Creating a robust connection is crucial in marine electrical systems. Our closed-end lugs offer not only strength but also longevity, thanks to their tin-plated construction and seamless design. The absence of exposed seams ensures that connections remain watertight, protecting your electrical system from the elements. When combined with epoxy-lined heat shrink tubing, these lugs fully envelop the conductor, eliminating any exposed areas and providing maximum protection against moisture and salt corrosion.

Easy Installation

Installing our Tinned Lug 8 AWG lugs is straightforward:

1. Strip your wire or cable to the appropriate length.
2. Slide the lug over the exposed wire, ensuring the insulation stops at the edge of the lug.
3. Crimp the lug securely using the proper tool.
4. For added durability, apply epoxy-lined heat shrink tubing over the connection.

This simple process ensures a secure and waterproof connection, ideal for the demanding conditions of marine environments.

Key Features

• Tin Plated: Provides excellent corrosion resistance in marine settings.
• No Exposed Seams: Ensures waterproof connections.
• 600V Rated: Suitable for high-voltage applications.
• High Conductivity: Made from seamless tubes of 99.9% copper for superior electrical performance.
• Designed for Stranded Wires: Optimized for flexibility and durability.
• Larger Pad Area: Enhances contact surface for better electrical connection.
• Stamped Information: Cable size and stud hole size are clearly marked on the pad.
• Versatile Crimping: Can be crimped or soldered for secure installation.
• Controlled Flare: Allows for easy cable insertion.
• Tight Barrel to Pad Transition: Provides a longer usable barrel length for flexible installation.

Compliance and Certifications

Our Tinned Lug 8 AWG lugs meet stringent industry standards, ensuring reliability and safety:

Compliance	Description
E.T.P. (Electrolytic Tough Pitch) CDA-110	Ensures high purity copper for excellent electrical conductivity.
ASTM-B-152	Copper rated at 100% conductivity for optimal performance.
UL & CSA Approved	Meets safety standards for electrical components.
RoHS Compliant	Environmentally friendly with restricted hazardous substances.
SAE Conductivity STD J163 & J1811	Exceeds standards for electrical conductivity and performance.

Product Specifications

Specification	Details
Wire Gauge	8 AWG
Stud Size	1/4”
Length	1.187”
Width	0.438”
Clearance	0.344”
Package Size	10 Pack
Type	Closed-End Lugs
Box Dimensions	1"H x 3"W x 4"L
Weight	0.2 lbs
UPC	840248209878

Additional Resources

For more detailed information, please refer to our Brochure (PDF).

Why Choose Pacer for Your Marine Electrical Needs?

Pacer is dedicated to providing top-quality electrical components tailored for marine and boating applications. Our closed-end lugs are crafted with precision and the highest standards to ensure that your marine electrical system remains safe, efficient, and reliable even in the most challenging conditions. Trust Pacer to deliver the excellence your marine projects deserve.
