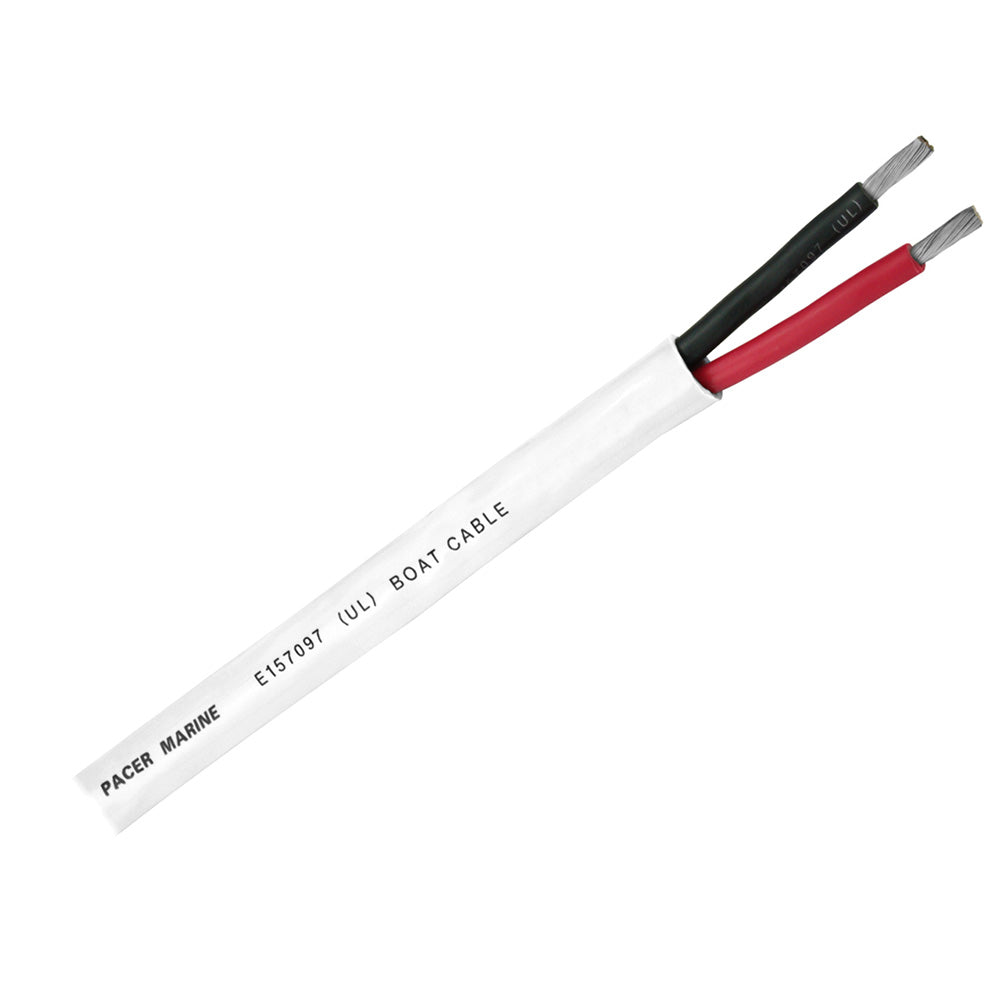

Pacer Round Duplex 2 Conductor Cable - 100' - 14/2 AWG - Red, Black

Enhance your marine electrical systems with our high-performance Duplex 2 Conductor Cable. Crafted specifically for boating professionals, this 100-foot, 14/2 AWG cable delivers unparalleled durability, flexibility, and longevity, ensuring reliable performance in the harshest marine environments.

Why Choose Our Duplex 2 Conductor Cable?

Designed and manufactured in-house in Sarasota, FL, USA, our Duplex Boat Cable stands out with its finely stranded, Type III tinned copper conductors. This construction not only provides maximum flexibility but also effectively prevents corrosion, making it ideal for both AC and DC marine applications.

Superior Flexibility and Corrosion Resistance

The tinned copper conductors are annealed finely stranded, meeting ASTM B172 Class K standards. This allows the cable to withstand frequent bending and knotting without compromising its integrity. The proprietary PVC jacket further enhances flexibility while preventing moisture accumulation by eliminating voids through a meticulous extrusion process.

Easy Installation and Maintenance

Our Duplex Boat Cable features a talcum powder coating on the interior wires, facilitating easy removal of the outer jacket. This thoughtful design simplifies installation and maintenance, making it a preferred choice among boating professionals.

Key Features

• 14 AWG duplex boat cable
• 100 feet of high-quality cable
• Two stranded, tinned copper conductors
• Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Exceptional durability, flexibility, and longevity
• Proprietary insulation for maximum protection
• Designed for easy installation and long-term reliability

Technical Specifications

Specification	Details
Conductor Colors	Black & Red
Conductor Stranding	41/0.0100
Jacket Color	White
Jacket Thickness	0.035" for 2 conductors
Nominal Cable O.D.	0.225" x 0.370" for 2 conductors
Color	Black/Red
Gauge	14/2 AWG
Length	100 feet
Box Dimensions	6"H x 10"W x 10"L
Weight	10.2 lbs
UPC	840248215879

Performance Characteristics

• Conductor: Annealed Fine Stranded Tinned Copper
• Insulation: Flexible, color-coded PVC rated for -20°C to 105°C
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Voltage Rating: 600 V
• Resistance: Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Ideal Applications

• DC circuits on boats and marine vessels
• Low voltage AC applications in marine environments
• Electrical wiring for boats, yachts, and other watercraft

Compliance and Standards

• UL Standard 1426
• RoHS Compliant
• ABYC: E-11.14
• Coast Guard: 33 CFR part 183
• UL Compliant

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
