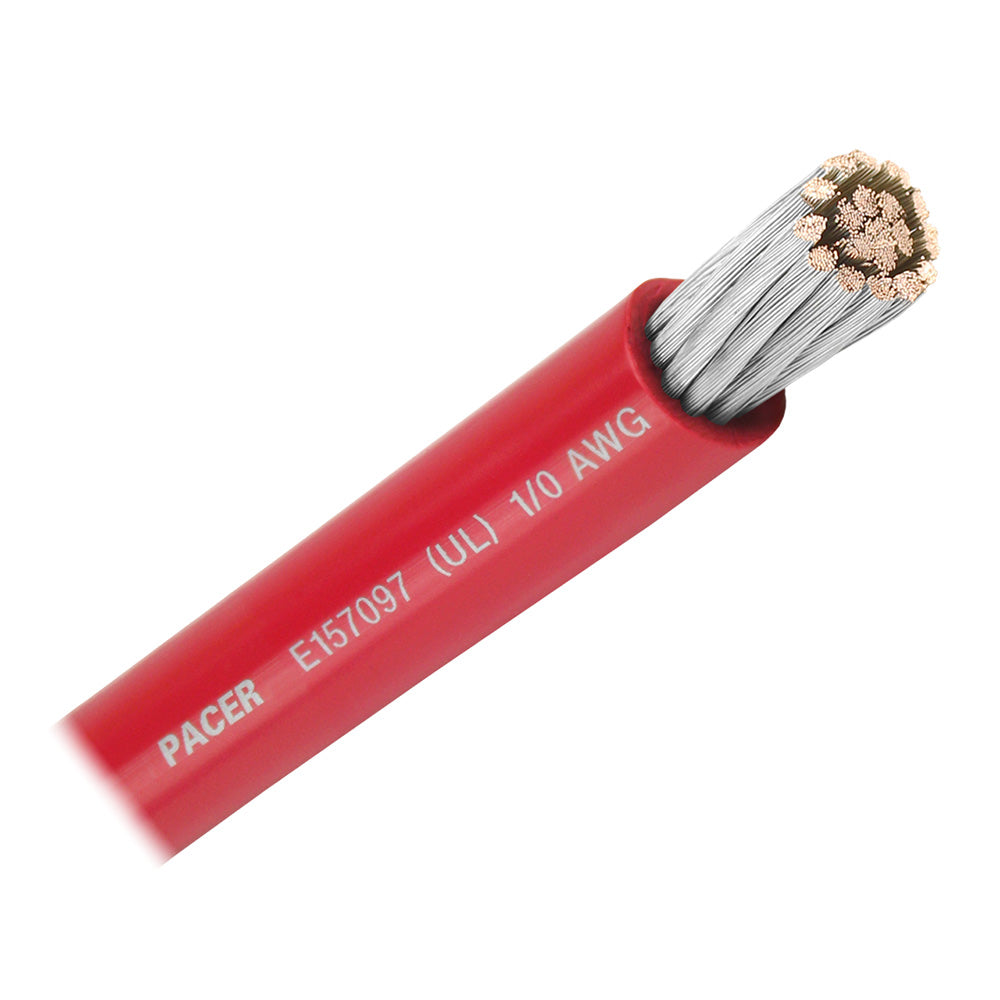

Pacer Red 1/0 AWG Battery Cable - 50'

Pacer’s Red 1/0 AWG Marine Battery Cable is engineered for reliability and performance in the most demanding marine environments. Manufactured in-house in Sarasota, FL, USA, this UL-approved cable ensures superior quality and longevity, making it the ideal choice for your boating and marine electrical needs.

Superior Quality and Durability

Pacer’s marine battery cable is crafted from Type III Class K tinned copper, offering excellent resistance to corrosion. This helps extend the life of the cable, even in harsh marine conditions. The proprietary PVC jacket provides a durable and flexible insulation, allowing for easy installation in tight and confined spaces with sharp turns. The combination of flexibility and toughness makes this cable perfect for marine installations where maneuverability is crucial.

Key Features

• Easy to strip, bend, and route for hassle-free installation
• Exceptional flexibility with a durable PVC jacket, ideal for tight spaces
• High-amperage capacity to support demanding marine equipment

Applications

Perfect for a wide range of marine electrical applications, including:

• Connecting batteries or generators to starters, grounds, switches, windlasses, inverters, and other high-amperage equipment
• Powering essential boat systems and accessories

Technical Specifications

Specification	Details
AWG	1/0
Color	Red
Length	50 ft.
Conductor Stranding	19x 56/0.0100
Insulation Thickness	0.080
Outer Diameter	0.600
Circular Mils	106400
Cross-Sectional Area (mm²)	53.9
Approximate Weight	450 lb/m
Box Dimensions	13"H x 14"W x 14"L
Weight	27.9 lbs
UPC	840248204224

Performance Characteristics

• Conductor: Annealed stranded tinned copper ASTM B172 Class K
• Insulation: Flexible, color-coded PVC rated for -20 °C to 105 °C
• Temperature Rating: 105 °C dry, 75 °C wet, 60 °C oil
• Voltage Rating: 600 V
• Resistance To: Acid, alkali, abrasion, flame, gasoline, oil, and moisture

Compliance and Certifications

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW
• CSA: TEW
• ABYC: E-11.15
• Coast Guard: 33 CFR part 183 Subpart 1

Additional Resources

For more detailed information, please refer to our brochure (PDF).
