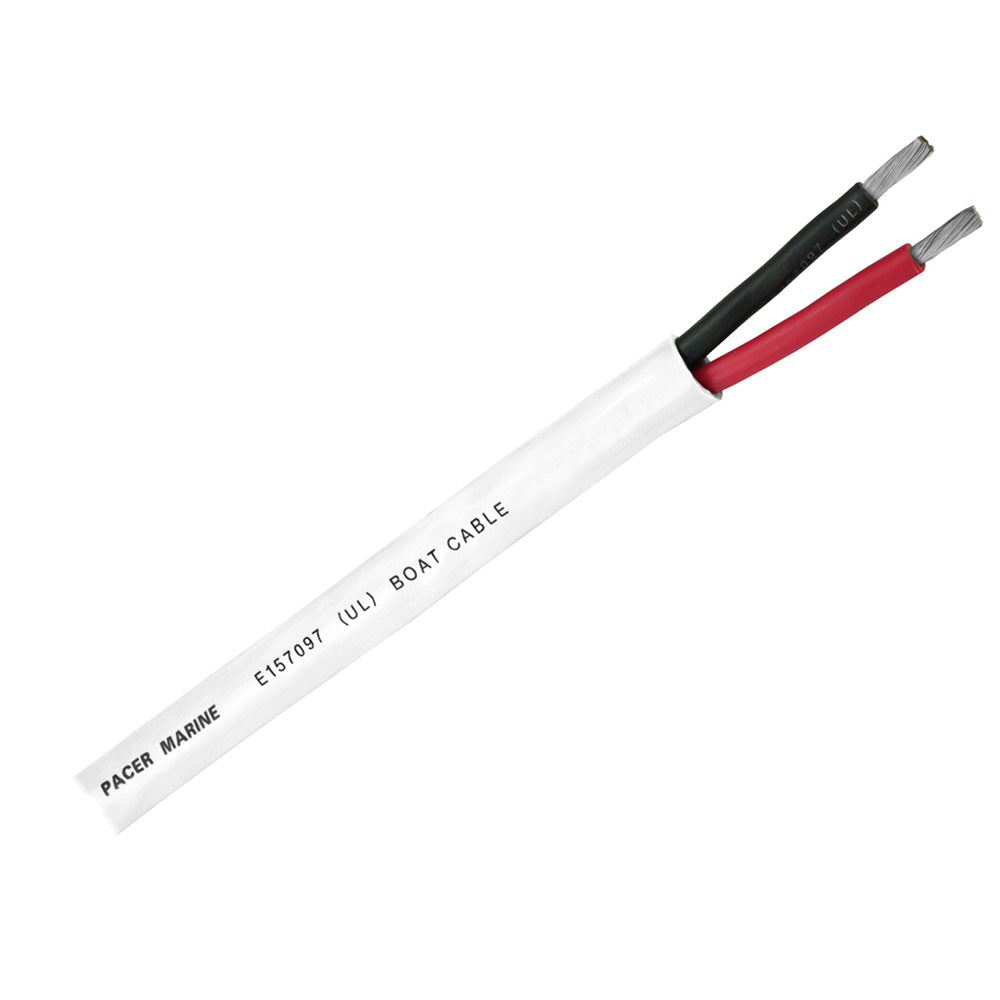

Pacer Duplex 2 Conductor Cable - 250' - 14/2 AWG - Round Cable - Red, Black

Enhance your marine electrical systems with our high-quality Duplex 2 Conductor Cable. Engineered for durability and flexibility, this 14/2 AWG cable is perfect for both AC and DC applications on your boat, ensuring reliable performance in even the harshest marine environments.

Key Features

• 14 AWG duplex boat cable for robust electrical connections
• Generous 250 feet length to accommodate various marine setups
• Two stranded, tinned copper conductors for optimal conductivity and corrosion resistance
• Annealed finely stranded tinned copper compliant with ASTM B172 Class K standards
• Exceptional flexibility allows for easy installation and knot-tying without compromising performance
• Proprietary PVC insulation prevents moisture ingress and enhances durability
• Internal talcum powder coating simplifies jacket removal for maintenance
• Preferred choice among boating professionals for its longevity and reliability

Technical Specifications

Specification	Details
Conductor Colors	Black & Red
Gauge	14/2 AWG
Length	250 feet
Jacket Color	White
Jacket Thickness	0.035 inches for 2 conductors
Nominal Cable O.D.	0.225" x 0.370" for 2 conductors
Box Dimensions	7" H x 10" W x 10" L
Weight	15.7 lbs

Performance Characteristics

• Conductor: Annealed fine stranded tinned copper for superior flexibility and conductivity
• Insulation: Color-coded PVC rated for -20°C to 105°C, ensuring safety and reliability
• Temperature Rating: 105°C in dry conditions, 75°C when wet, and 60°C in oil environments
• Voltage Rating: 600 V, suitable for a wide range of marine electrical systems
• Resistance: Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture, providing enhanced protection

Ideal Applications

• Power distribution in boats and marine vessels
• Low voltage AC and DC electrical systems
• Engine wiring and lighting applications
• Marine electronics installations

Regulatory Compliance

• Compliant with UL Standard 1426
• RoHS Compliant, ensuring environmentally safe materials
• ABYC Certification: E-11.14
• Coast Guard Approved: 33 CFR part 183
• UL Compliant for safety and performance standards

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
