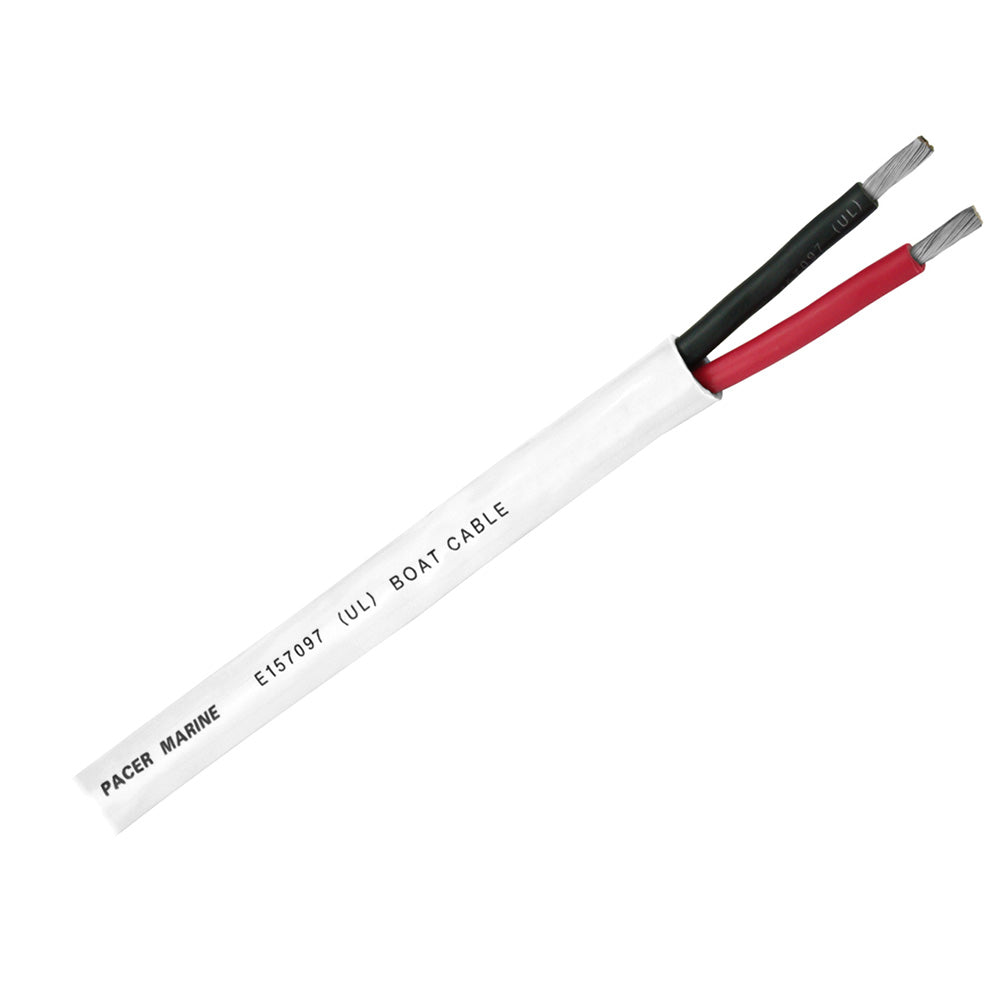

Pacer Duplex 2 Conductor Cable - 100' - 16/2 AWG - Round Cable - Red, Black

Engineered for the demanding marine environment, Pacer’s Duplex 2 Conductor Cable offers unparalleled flexibility and durability. Whether you're installing in tight spaces or exposed areas, this high-quality cable ensures reliable performance and longevity for all your boating electrical needs.

Key Features

• 16 AWG duplex configuration with two conductors
• 100 feet of premium marine-grade cable
• Stranded, tinned copper conductors for enhanced corrosion resistance
• Annealed finely stranded tinned copper ASTM B172 Class K
• Exceptional flexibility allows easy installation in confined spaces
• Built to withstand the harshest marine environments without compromising durability
• Proprietary high-performance insulation for superior protection
• Capable of being tied into a knot without affecting performance
• Trusted by boating professionals for ease of installation and long-lasting design

Technical Specifications

Specification	Details
Conductor Gauge	16/2 AWG
Length	100 feet
Number of Conductors	2
Conductor Colors	Black & Red
Conductor Stranding	26/.0100
Jacket Color	White
Jacket Thickness	0.035" for 2 conductors
Nominal Cable O.D.	0.200" x 0.330"
Box Dimensions	7" H x 7" W x 7" L
Weight	6.8 lbs
UPC	840248215862

Performance Characteristics

• Conductor: Annealed Fine Stranded Tinned Copper
• Insulation: Flexible, color-coded PVC suitable for temperatures from -20°C to 105°C
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Voltage Rating: 600 V
• Resistance To: Acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications

Perfect for both DC circuits and low voltage AC applications, this two-conductor boat cable is ideal for a variety of marine electrical installations, including lighting, navigation systems, and power distribution on your vessel.

Compliance and Certifications

• UL Standard 1426 certified
• RoHS compliant
• ABYC E-11.14 certified
• Coast Guard compliant with 33 CFR part 183
• Overall UL compliant

Additional Resources

For more detailed information, please refer to our downloadable resources:

• Quick Guide (PDF)
• Brochure (PDF)
