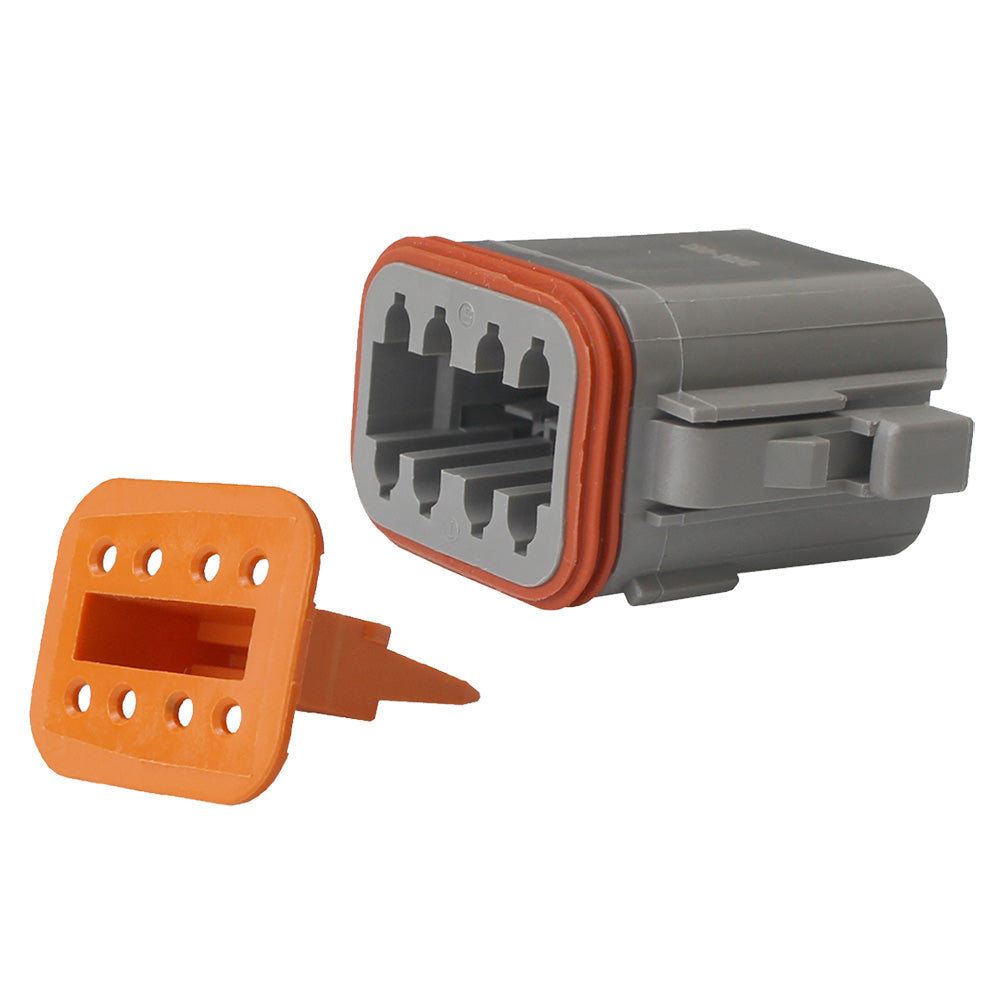

Pacer Deutsch DT Plug Wedge Lock Kit - 8 Position - 5 Pack

Ensure your marine electrical systems remain secure and reliable with the Deutsch DT Plug & Wedge Lock Kit. Specifically designed for the demanding conditions of boating and marine environments, this kit provides waterproof and vibration-resistant connections essential for safe and long-lasting performance at sea.

Key Features

• Available in kits with 6, 8, or 12 cavities, each containing 5 housings and 5 wedge locks
• Compatible with 20-14 AWG applications using size 16 contacts rated for up to 13 Amps
• Environmentally sealed to protect against moisture and harsh marine conditions
• Durable housing made from plastic reinforced with glass fiber for enhanced strength
• Easy to install, connect, and disconnect, making it ideal for field use aboard vessels

Applications in Marine Settings

• Perfect for wire-to-wire connections in boats and marine vessels
• Enclosed connectors provide field-proven reliability and rugged quality necessary for marine applications
• Suitable for various electrical systems on boats, including navigation, communication, and power distribution

Product Characteristics

• Wedgelocks ensure precise contact alignment and secure retention, preventing accidental disconnections
• Redundant silicone seals offer double protection against water ingress
• Hand-insertable and removable contacts allow for easy maintenance and customization
• Operating temperature range of -55°C to 125°C, suitable for diverse marine climates

Compliance and Certifications

• Ingress Protection (IP) Level: IP67 – fully protected against dust and temporary immersion in water
• Compliant with EU RoHS/ELV directives, ensuring environmentally safe materials
• Standard UL-94 recognized for flammability resistance

Technical Specifications

Attribute	Details
Number of Cavities	8
Cavity Style	Plug (socket)
Package Size	5
Housing	Rectangular Plug, Plastic reinforced with glass fiber
Contact Size	16 (13 Amp)
Wire Size	20-14 AWG
Operating Temperature	-55°C to 125°C

Download Brochure (PDF)

For expert advice or questions about integrating the Deutsch DT Plug & Wedge Lock Kit into your marine electrical systems, contact our knowledgeable team today.
