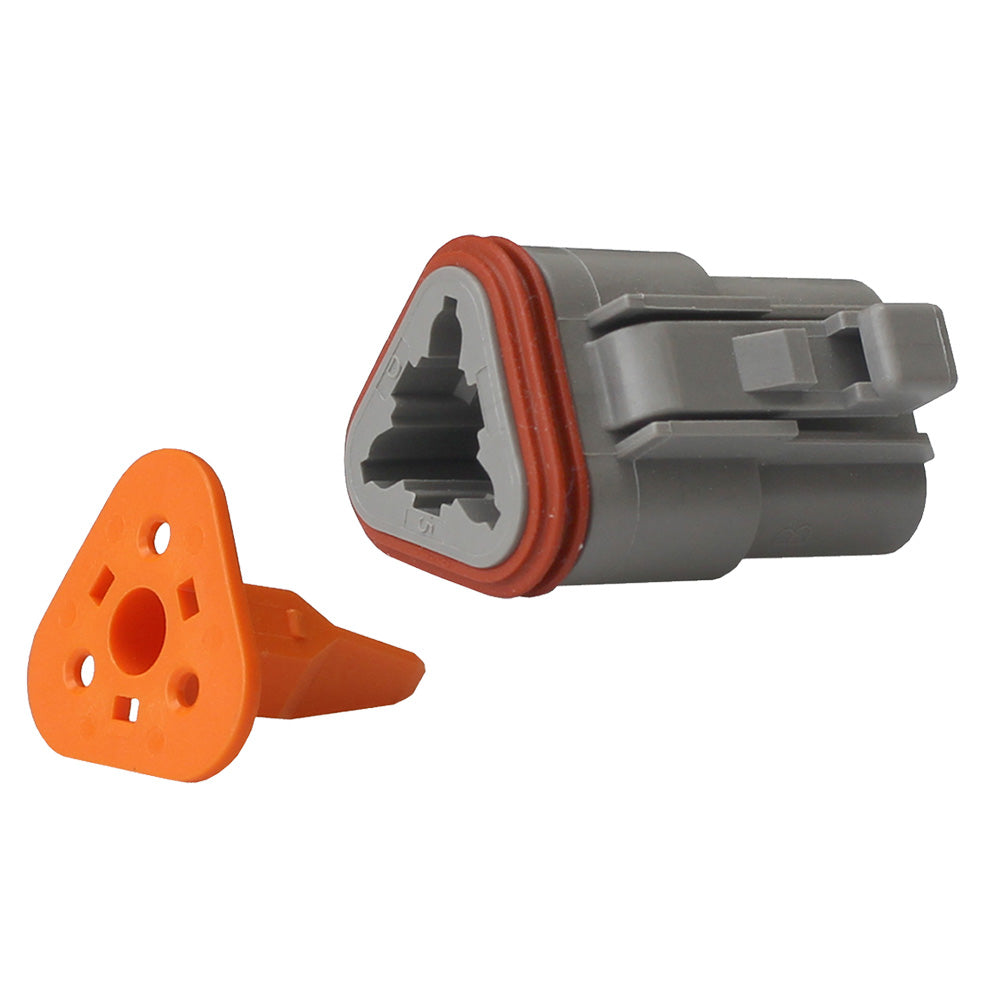

Pacer Deutsch DT Plug Wedge Lock Kit - 3 Position - 10 Pack

Ensure the reliability and durability of your boat’s electrical systems with the Deutsch DT Plug & Wedge Lock Kit. Specifically engineered for marine environments, these connectors provide secure, waterproof connections that withstand the harsh conditions of boating, including exposure to water, vibrations, and shocks. Perfect for marine applications, the DT series connectors simplify installation and maintenance, making them an essential component for any boating enthusiast.

Features

• Includes housing (10 pieces) and wedge lock (10 pieces) for kits with 2, 3, or 4 cavities
• Designed for easy installation, connection, and disconnection in the field
• Environmentally sealed to protect against moisture and corrosion
• Durable construction ensures long-lasting performance in marine settings

Applications

• Wire-to-wire electrical connections on boats and marine vessels
• Enclosed connectors provide field-proven reliability and rugged quality
• Ideal for marine electronics, navigation systems, and other onboard electrical components

Characteristics

• Wedgelocks ensure precise contact alignment and secure retention
• Redundant silicone seals provide extra protection against water ingress
• Hand-insertable and removable contacts for easy maintenance and customization

Compliances

• Ingress Protection (IP) Level: IP67 – Completely dust-tight and protected against temporary immersion in water
• EU RoHS/ELV compliant, ensuring environmentally safe materials
• Standard UL-94 recognized for flammability resistance

Specifications

Number of Cavities	3
Cavity Style	Plug (socket)
Package Size	10
Housing	Rectangular Plug, Plastic reinforced with glass fiber
Contact Size	16 (13 Amp)
Wire Size	20-14 AWG
Operating Temperature	-55°C to 125°C

For comprehensive details, refer to the Brochure (PDF).
