Pacer Deutsch 6 AWG DTHD Power Plug Receptacle w/Pin Socket

Enhance your marine electrical systems with the Deutsch 6 AWG DTHD Power Plug & Receptacle. Designed specifically for the demanding environment of boating, this rugged connector ensures reliable and secure power connections, essential for heavy-duty marine applications. Its environmentally sealed and compact design makes installation straightforward, providing a dependable alternative to traditional splicing methods.

Key Features

• Environmentally sealed disconnectable power wire splicing
• Handles 60-100 Amps at 125°C
• Simple and quick installation process
• Field serviceable for easy maintenance

Ideal Applications

• Wire-to-wire connections in marine electrical systems
• Enclosed connectors that deliver field-proven reliability and rugged quality
• Power distribution in boats, yachts, and other marine vessels

Product Characteristics

• Redundant silicone seals for enhanced protection against moisture and corrosion
• Hand-insertable contacts allow for flexible and secure connections
• Compact design saves space in tight marine environments

Compliance and Standards

• Ingress Protection (IP) Level: IP67 – dust-tight and protected against temporary immersion
• Compliant with EU RoHS/ELV directives for environmentally friendly materials

Technical Specifications

Specification	Details
Deutsch Series	DTHD
Wire Range	6 AWG
Connector Types	Plugs & Receptacles

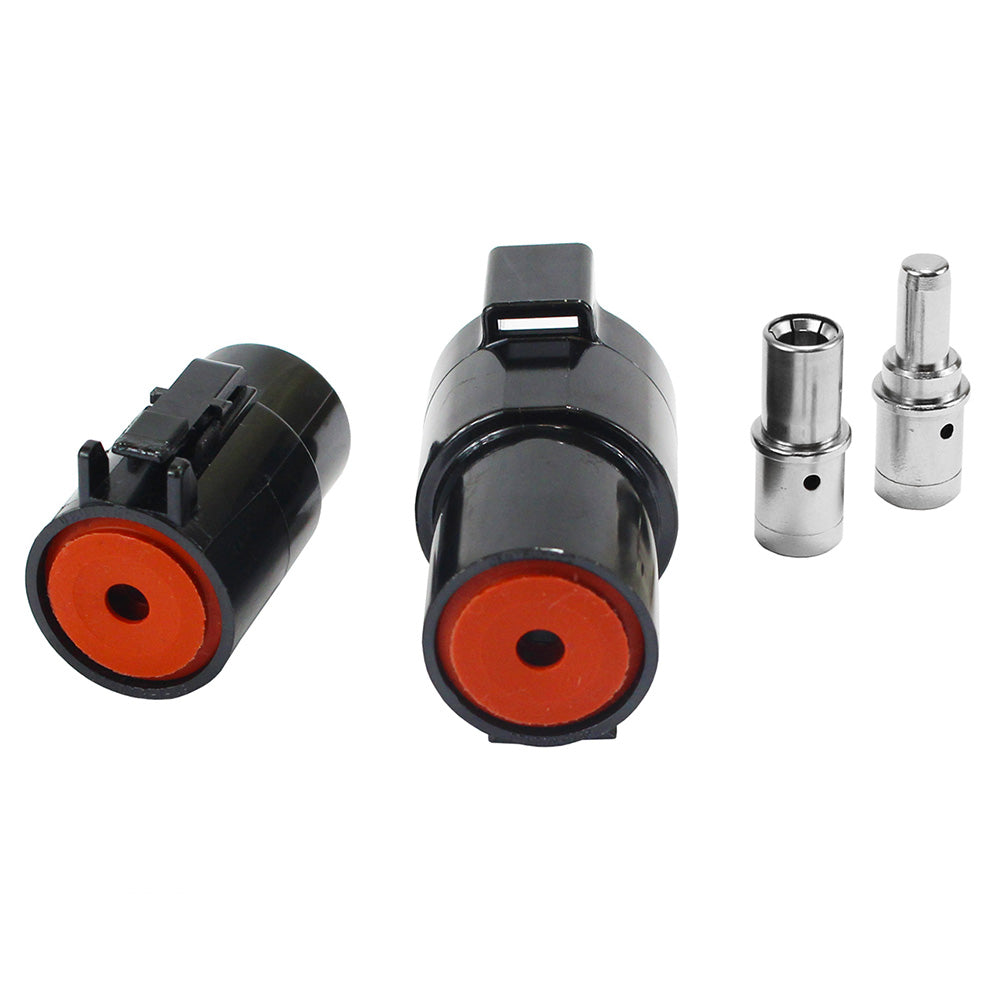

Kit Contents	1 x DTHD Plug 1 x Size 4 Socket 1 x DTHD Receptacle 1 x Size 4 Pin 2 x Reducer Crimp Sleeves for 10 or 8 AWG

Why Choose Deutsch DTHD for Your Marine Needs?

The Deutsch DTHD series is renowned in the marine industry for its durability and performance. Whether you're upgrading your boat’s electrical system or performing routine maintenance, these connectors offer the reliability you need to keep your vessel powered and safe. Trust in Deutsch’s legacy of excellence to provide secure and efficient power connections for all your marine applications.

Download Brochure (PDF)
