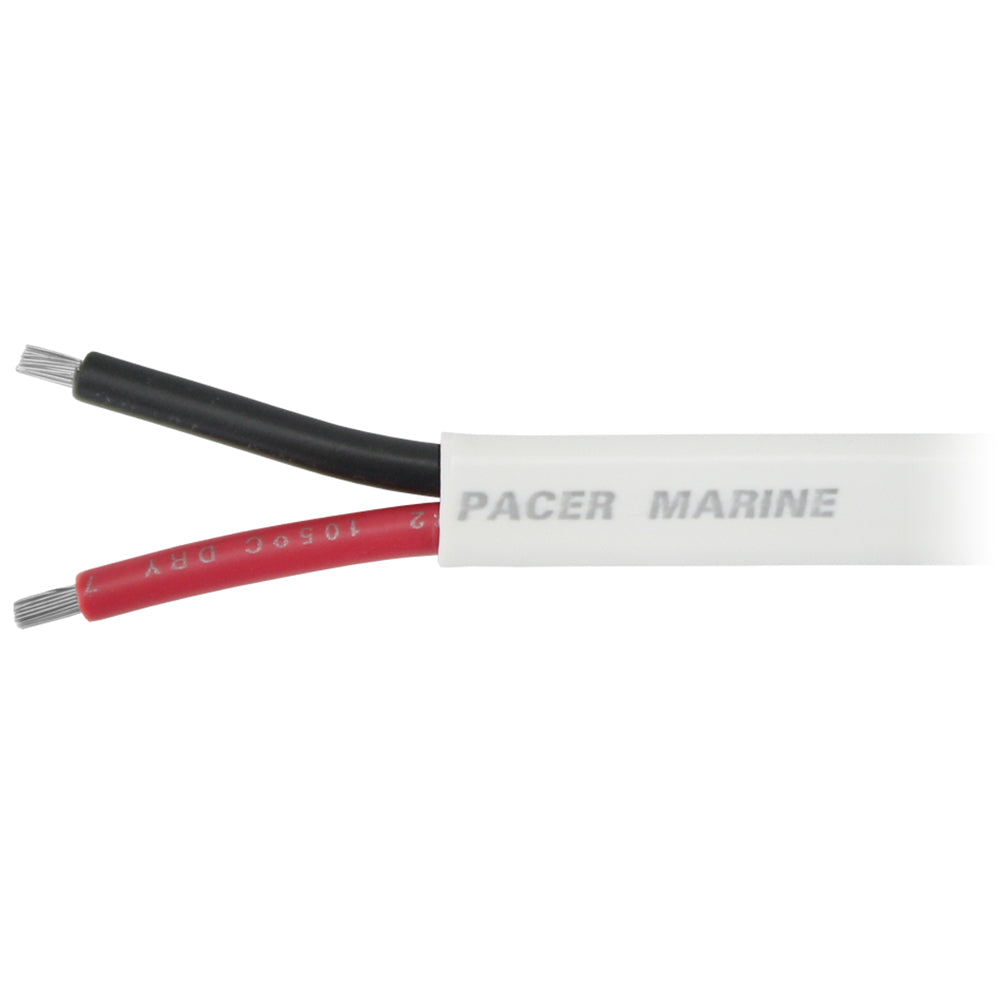

Pacer 12/2 AWG Duplex Cable - Flat Cable - Red/Black - 250'

Introducing our top-quality 12/2 AWG Duplex Boat Cable, designed specifically for marine and boating applications. This durable and flexible cable ensures reliable performance in both AC and DC circuits, making it an essential component for your vessel’s electrical system.

Product Overview

The 12 AWG Duplex Boat Cable is meticulously manufactured in-house in the USA by Pacer, ensuring the highest standards of quality and durability. Constructed with finely stranded, Type III tinned copper conductors, this cable offers exceptional flexibility and resistance to corrosion, perfect for the harsh marine environment.

The robust PVC jacket not only provides flexibility but also prevents moisture accumulation by eliminating gaps during the extrusion process. A talcum powder coating inside the jacket allows for easy removal of the outer layer, enhancing the cable's suitability for marine use.

Pacer’s marine wire surpasses industry requirements, meeting and exceeding the standards set by UL, ABYC, and NMMA, ensuring safety and reliability for your marine electrical systems.

Key Features

• Extruded exterior cable insulation with no gaps
• Highly flexible, color-coded wire insulation for easy identification
• Stranded, tinned copper conductors for enhanced durability and corrosion resistance
• Annealed finely stranded tinned copper, ASTM B172 Class K
• Resistance to acids, alkalis, abrasion, flame, gasoline, oil, and moisture

Compliance Standards

• UL Standard - 1426
• U.S.C.G - 33 CFR part 183
• ABYC - E-11.14

Technical Specifications

Specification	Details
Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC (-20 °C to 105 °C)
Voltage Rating	600 V
Resistance	Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture
Number of Conductors	2
Type of Cable	Duplex

Product Details

Specification	Details
Color	Red/Black
Gauge	12/2 AWG
Length	250 feet
Box Dimensions	7"H x 10"W x 10"L
Weight	22.1 lbs
UPC	840248200332

Note: Sold as an individual unit.

Additional Resources

Download Brochure (PDF)
