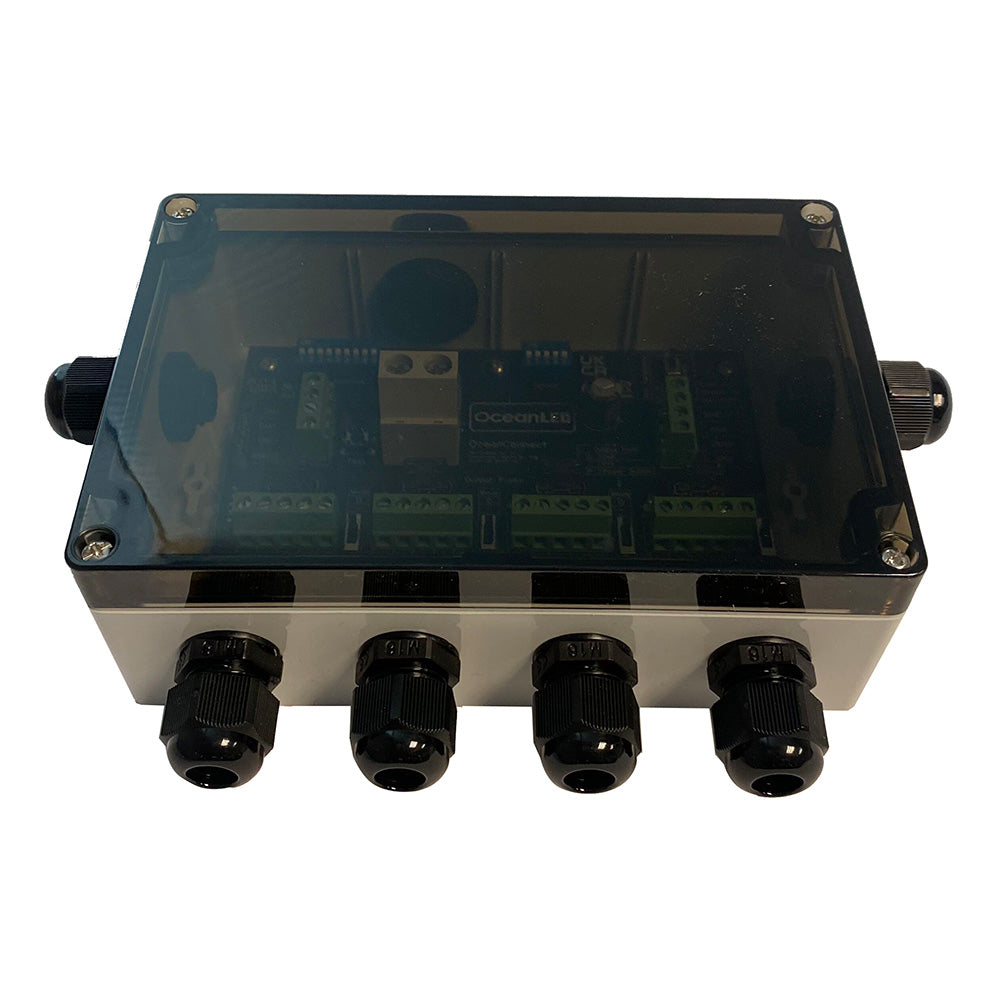

OceanLED OceanConnect Junction Box

Enhance your marine lighting setup with the OceanConnect Junction Box, a robust and waterproof solution designed specifically for the demanding conditions of marine and boating environments. This DMX-controlled, low-voltage DC junction box ensures reliable power distribution and seamless control of your vessel's lighting systems.

Key Features

• Waterproof Design: Rated IP66, the OceanConnect is built to withstand harsh marine conditions, ensuring longevity and reliability.
• DMX-Controlled: Seamlessly integrate with your DMX controller for precise lighting management and dynamic effects.
• Low-Voltage DC Operation: Compatible with 9–32V DC systems, making it versatile for various marine applications.
• Power Distribution: Provides one power input and four individually switched fused power outputs, each rated at 6 amps.
• Scalable Lighting: Supports powering and individually addressing up to four OceanLED X-Series DMX-controlled lights.

What’s Included

• 1x OceanConnect unit, including 4x 7.5A blade fuses
• 4x mounting screws
• 1x twin entry cable grommet
• 4x blanking plugs

Technical Specifications

Voltage	12/24V DC (Max 32V DC)
Input/Output Cable Glands	1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
Power Input Terminals Wire Gauge	8-20 AWG
DMX Terminals Wire Gauge	12-28 AWG
Light Outputs	4x individually fused 6 Amp each (DMX & Power)
DMX Input	1x DMX Input (Connects to DMX Controller)
DMX Output	1x DMX Output (Links Junction Boxes in Chain)
DMX Terminator	Onboard DMX terminator with on/off switch

Physical Specifications

Dimensions	228mm x 174mm x 60mm (9" x 6.8" x 2.3")
Enclosure	IP66-Rated Polycarbonate
Weight	270g

Ideal for Marine Lighting Applications

The OceanConnect Junction Box is perfect for powering and controlling your boat’s lighting systems, ensuring bright and reliable illumination for all your marine adventures. Whether you're upgrading your existing setup or planning a new installation, the OceanConnect provides the flexibility and durability needed in a marine environment.
