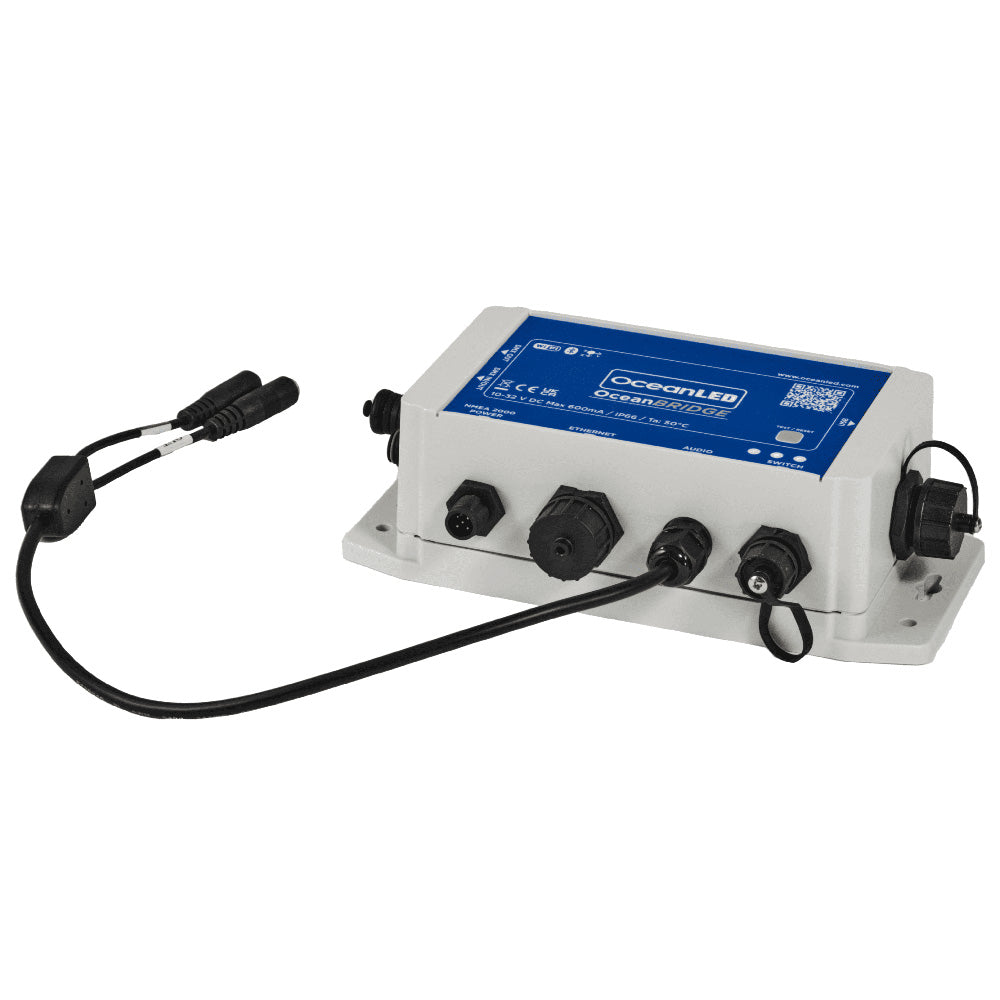

OceanLED OceanBridge Control Unit

The OceanBridge Control Unit revolutionizes marine lighting by providing comprehensive, multizone control for all your boat's lights. Whether you're navigating calm waters or enjoying a lively evening on deck, OceanBridge ensures your lighting setup is both versatile and easy to manage from your preferred device.

Ultimate Control at Your Fingertips

The patented OceanBridge is a state-of-the-art lighting controller designed specifically for boats. It seamlessly integrates with your Multi-Function Display (MFD), smartphone, or tablet, giving you complete command over the entire OceanLED range and most third-party DC-powered lights. Adjust colors, synchronize with music, create dynamic transitions, manage brightness, and utilize OceanLED's unique movement-to-color feature effortlessly.

Perfect for All Boat Types

Whether you own a small rib, a large sport fishing vessel, a sailing yacht, or a motor cruiser, OceanBridge is tailored to meet your lighting needs. Its compact design ensures quick and easy installation without occupying much space. Control your lights via an MFD or, if your boat lacks an MFD, use the integrated Wi-Fi module to manage everything directly from your smartphone or tablet.

Customizable Scenes & Zones

OceanBridge allows you to create up to 10 lighting zones and 10 customizable scenes, making it adaptable to any vessel size. Save your favorite lighting colors and modes, and assign them to specific zones for effortless ambiance changes. Enhance your setup with OceanLED's sweep scene mode for a dynamic ‘Knight Rider’ effect, and add up to four instant-on switches to tailor control to particular areas of your boat.

Expand Your Lighting System

With the ability to manage up to 64 DMX or on/off lights simultaneously, OceanBridge offers extensive control even for non-OceanLED lights. Utilize splitters to expand the system to over 150 lights, ensuring your entire vessel is illuminated precisely as you desire. The system's NMEA 2000 compatibility and MFD network connectivity guarantee seamless plug-and-play integration.

Intelligent Lighting Features

Enhance your boating experience with OceanBridge’s intelligent lighting commands:

• Music Sync: Connect via AUX or Bluetooth to sync your underwater and onboard lights with your favorite tunes, adjusting to bass, midtones, and treble.
• Movement Integration: The built-in gyroscope sensor allows lights to change in response to your boat's movements, creating a dynamic lighting environment.
• Timer Function: Schedule specific lighting scenes to activate at designated times, perfect for dawn, dusk, or nighttime cruising.

Universal Compatibility

OceanBridge is compatible with all major MFD brands, including Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno. No matter your boat's make or the lighting system you use, OceanBridge serves as the ultimate control solution, ensuring accessibility and ease of use across all platforms.

Key Features

• Color Control
• Expandable System
• Touch-Sensitive Interface
• Universal Compatibility
• 10 Dynamic Scenes
• 10 Lighting Zones
• Dynamic Audio Control
• Wave Motion Mode

Technical Specifications

Specification	Details
Water Protection Rating	IP66
Power Consumption	6W (500mA @12V DC)
Operating Voltage	12/24V DC (Max 32V DC)
Power Input	NMEA 2000 Connector Port
Input Cable Glands	IP68
Output Cable Glands	IP68
Wi-Fi	Built-In
External Switch Inputs	Supports Four External Switch Inputs
Bluetooth	Built-In
On-board Sensors	Gyroscope Sensor & Thermal Sensor
Operating Temperature	-10°C to 50°C ambient
Network Connections	NMEA 2000 connection & Ethernet connection
Audio	1 x Audio-In 3.5mm | 1 x Audio-Out 3.5mm

Physical Specifications

Specification	Details
Dimensions	210mm x 91mm x 65mm
Weight	490g
Material	Robust Polycarbonate

Download the Owner's Manual (PDF)
