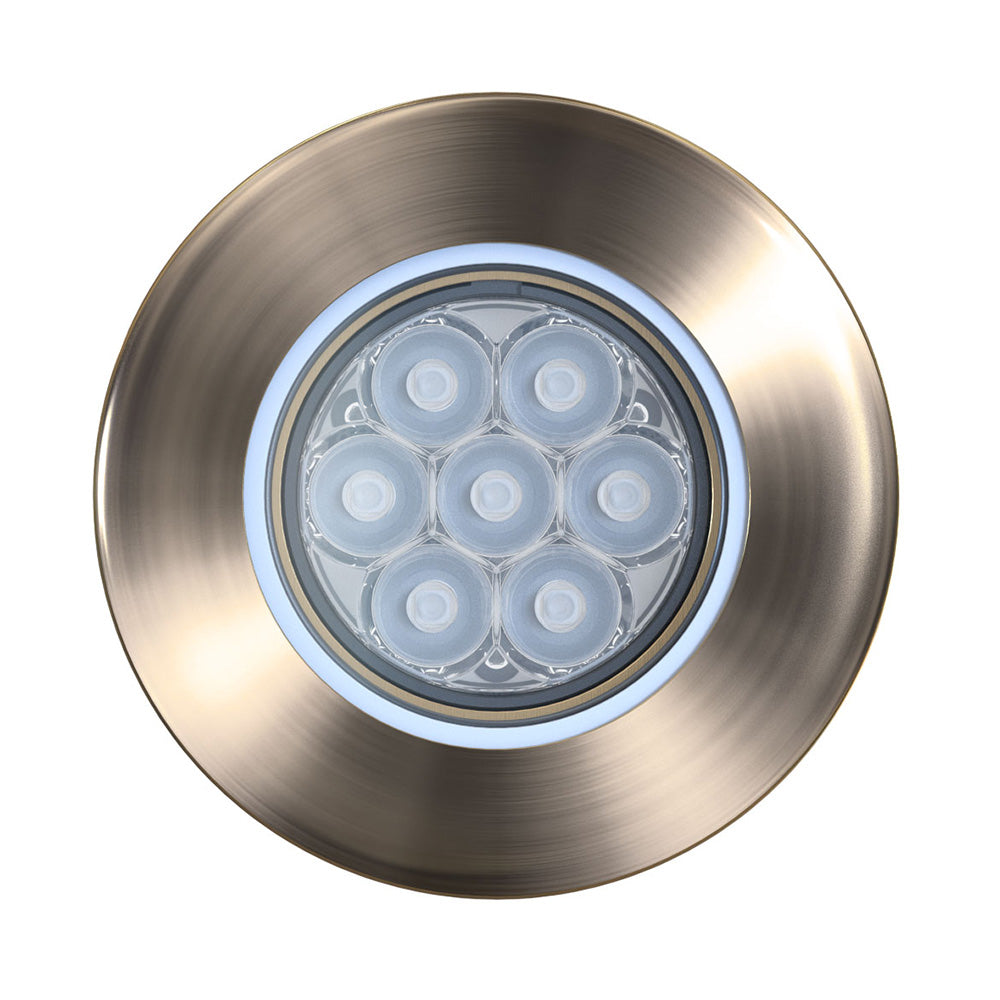

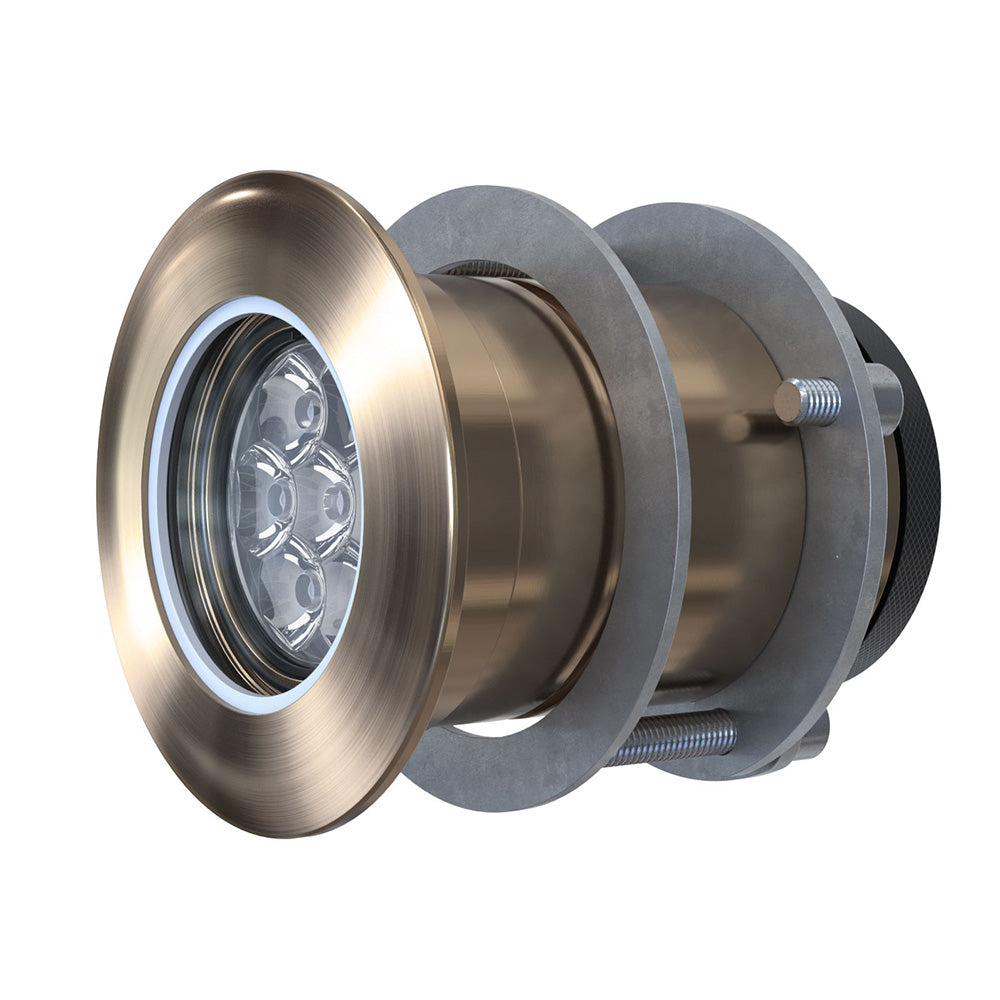

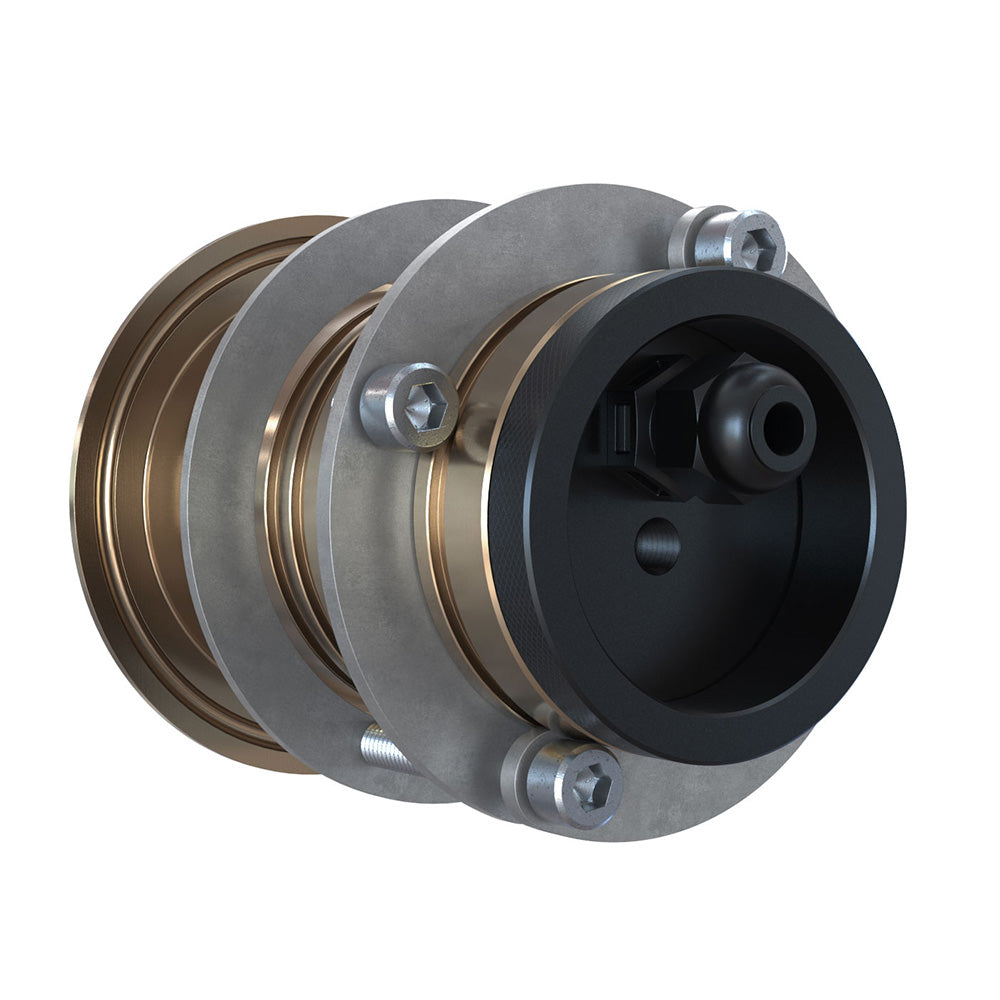

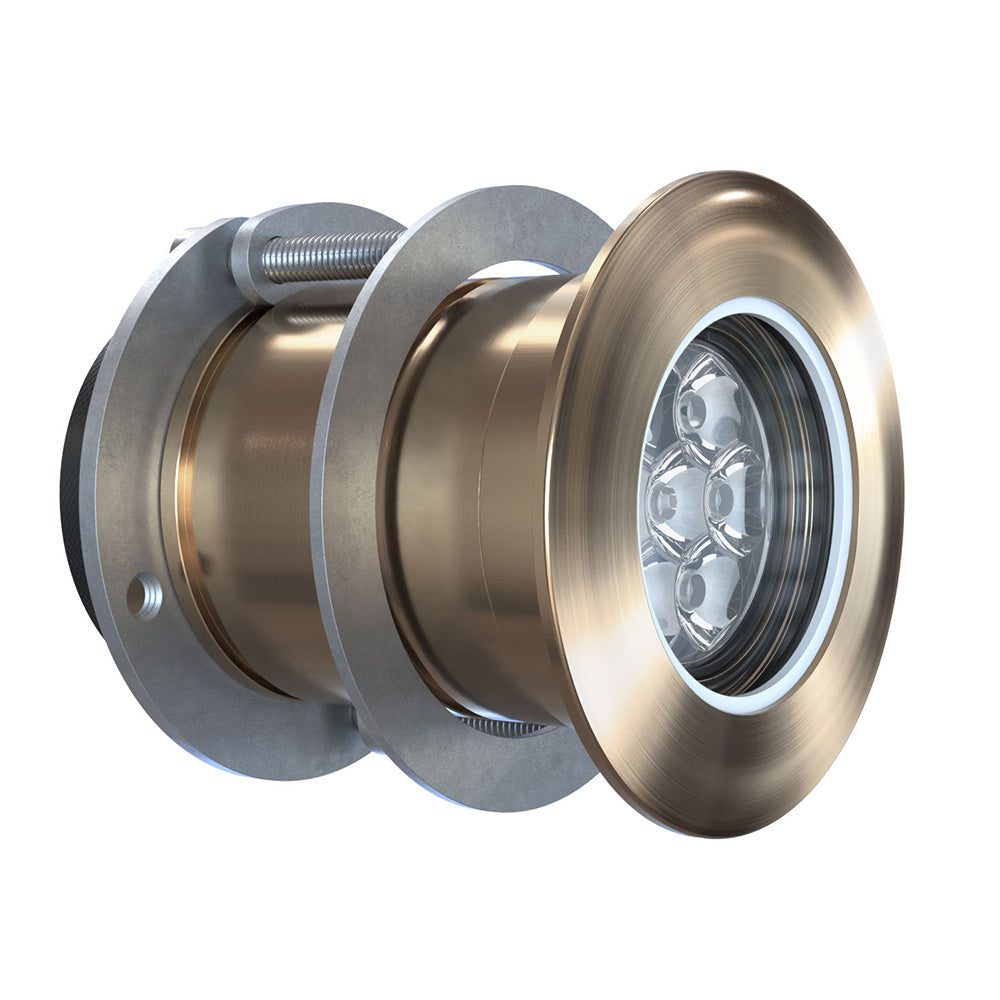

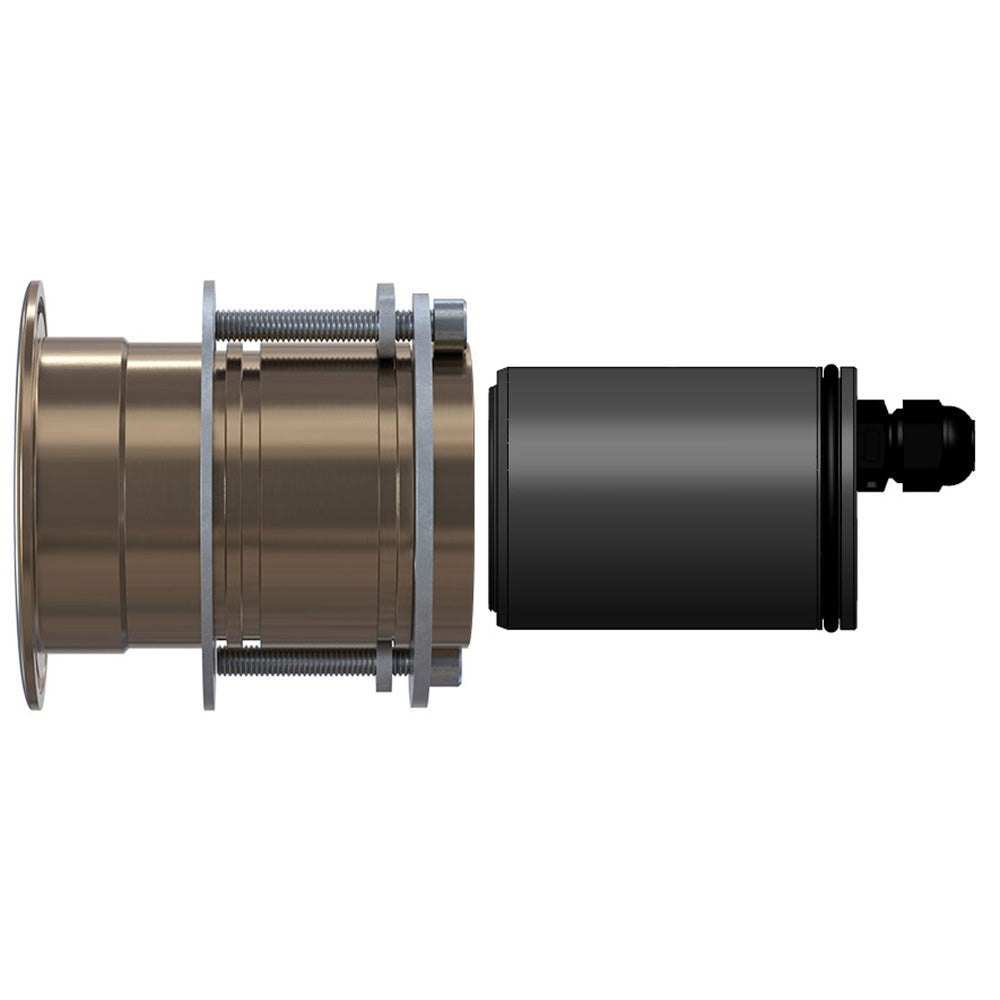

OceanLED Explore E2 Narrow Beam - Ultra White
OceanLED Explore E2 Narrow Beam - Ultra White is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Explore E2 Narrow Beam - Ultra White is a cutting-edge marine lighting solution designed for boat enthusiasts seeking superior performance and versatility. Compact yet powerful, the E2 delivers exceptional illumination in tight installation spaces without compromising on durability or premium features.
Versatile Beam Options
Choose between the Explore Series' signature wide-angle beam (90° x 20° Elliptical) for broad illumination or the new narrow “laser” beam shape (20° Circular) to achieve your desired lighting effect. This flexibility allows you to tailor your lighting setup to suit various boating conditions and preferences.
Advanced Water Ingress Protection
Engineered with full IP69k Certification, the Explore E2 offers the highest level of water protection. Additionally, the rear of the light is safeguarded against temporary submersion, ensuring reliable performance even in rough seas and wave-flooded stern areas.
Effortless XFM Removal
The E2 maintains the same XFM capabilities as larger models, allowing you to remove the light body for maintenance or upgrades easily, without the need to haul your boat. This feature enhances convenience and minimizes downtime.
Seamless Control
Manage your Explore E2 lights effortlessly using the third-party switch or push-button control of your choice, integrating seamlessly with your existing marine electrical systems.
Key Features
- Elliptical 90° / 20° Wide Beam Option
- Circular 20° Narrow Beam Option
- Up to 3000 Fixture Lumens for powerful illumination
- Compact design with built-in driver
- Ultra-low profile outer bezel for a sleek appearance
- IP69k Certified with in-hull temporary submersion protection
Technical Specifications
| Specification | Details |
|---|---|
| Fixture Lumens | 3000 |
| Beam Angle (Wide) | 90° / 20° Elliptical |
| Beam Angle (Narrow) | 20° Circular |
| IP Rating | IP69k |
| Operating Voltage DC | 10-30V DC |
| Current / Amp Draw (DC) | 3.5A@12V DC / 1.5A@24V DC |
| Driver Type | Internal |
| Correlated Color Temp | 6500k (White) |
| Rear Temporary Submersion Protection | Yes |
| Fish Strobe | Yes |
| Anti-fouling Properties | Tritonium coated lens |
| LED Manufacturer | CREE |
| CE Approved | Yes |
Mounting Recommendations
| Recommendation | Details |
|---|---|
| Boat Size | Up to 20m (65’) |
| Transom / Hull Spacing | 1 - 1.5m (3-5’) |
| Installation Depth Below Waterline | 25-30cm (10-12”) |
| Maximum Hull Thickness | 60mm (2.4”) |
Physical Specifications
| Dimension | Details |
|---|---|
| Total Weight | 0.8kg (1.76lbs) |
| Total Diameter (Including Bezel) | 80mm (3.15”) |
| Diameter Of Body | 59mm (2.32”) |
| Profile Of Fixture | 3.5mm (0.14”) |
| Overall Length | 101.5mm (4”) |
| Minimum Space Required Inside The Hull | 172mm (6.78”) |
| Hole Cut-Out | 60mm (2.37”) |
| Mounting Tube / Bezel Material | AB2 Aluminium Bronze |
| Light Body Material | AB2 |
| Lens | Glass |
| Optics (Wide Beam Option) | Hybrid Collimated |
| Optics (Narrow Beam Option) | Collimated |
Additional Resources
