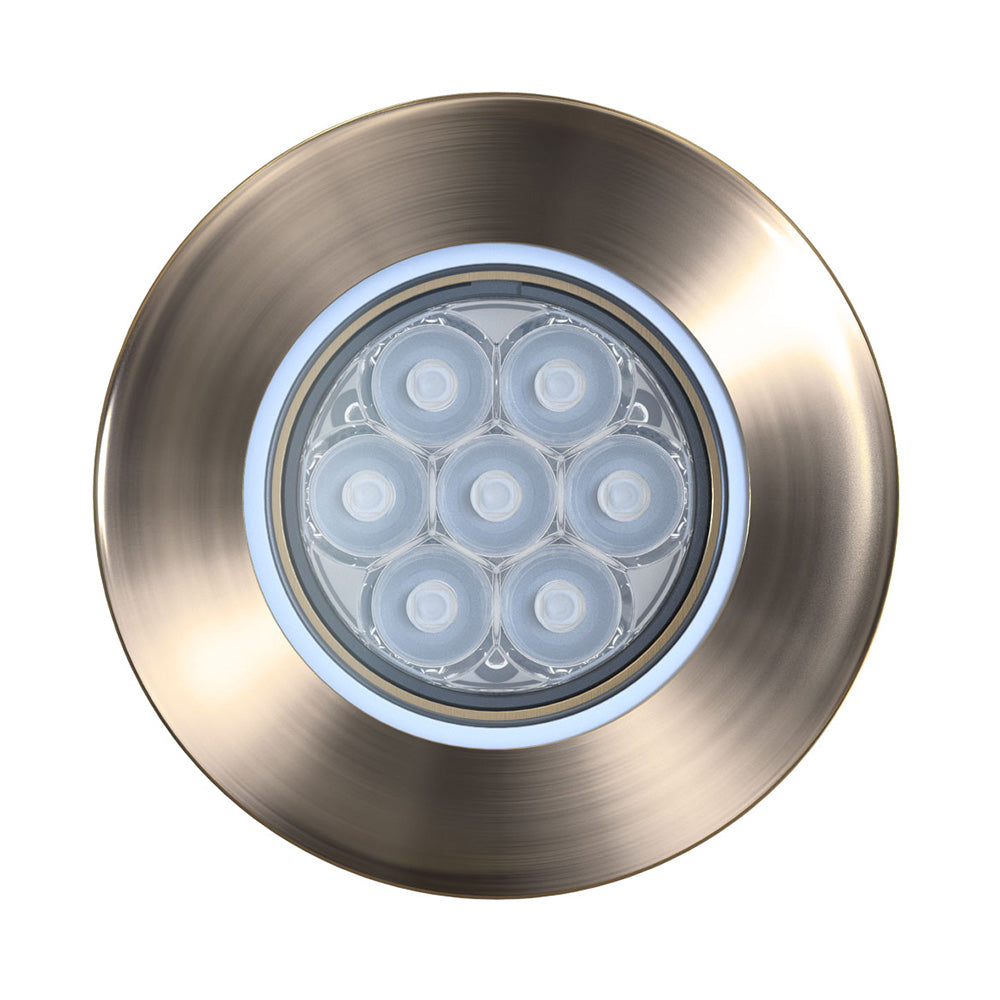

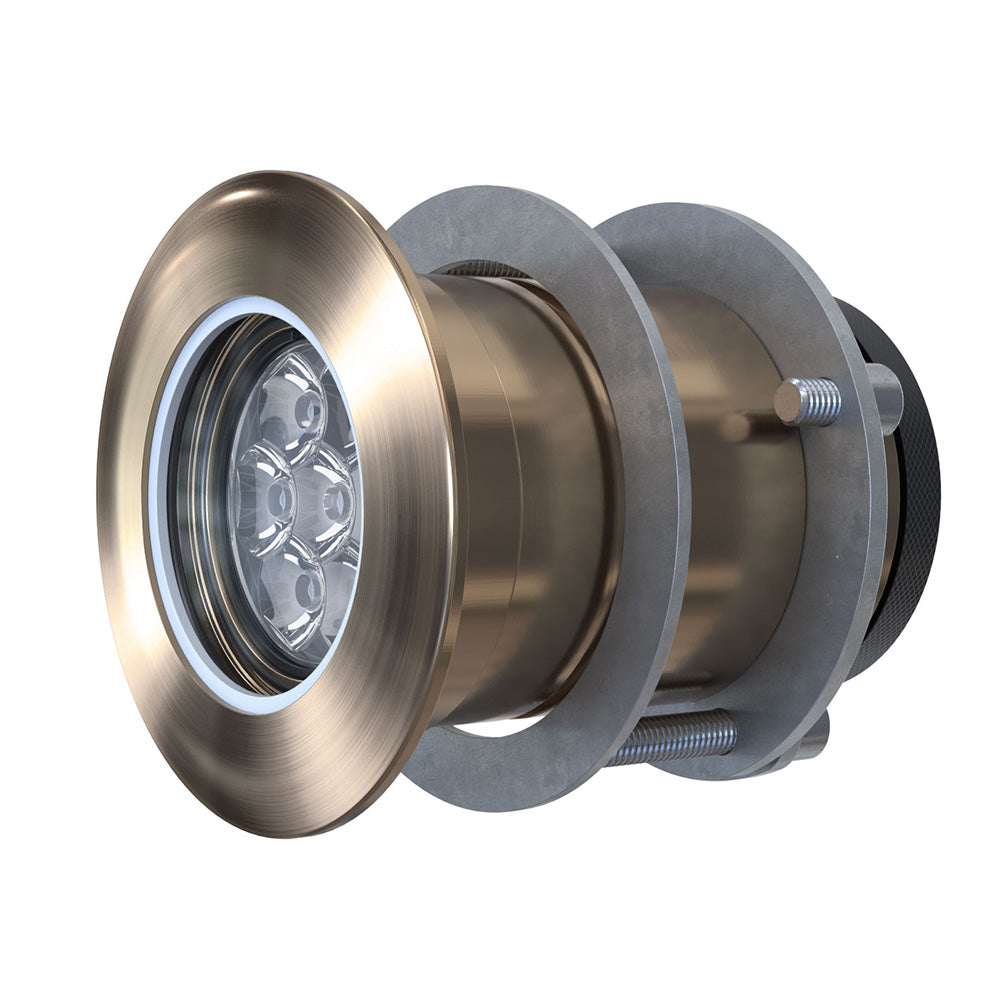

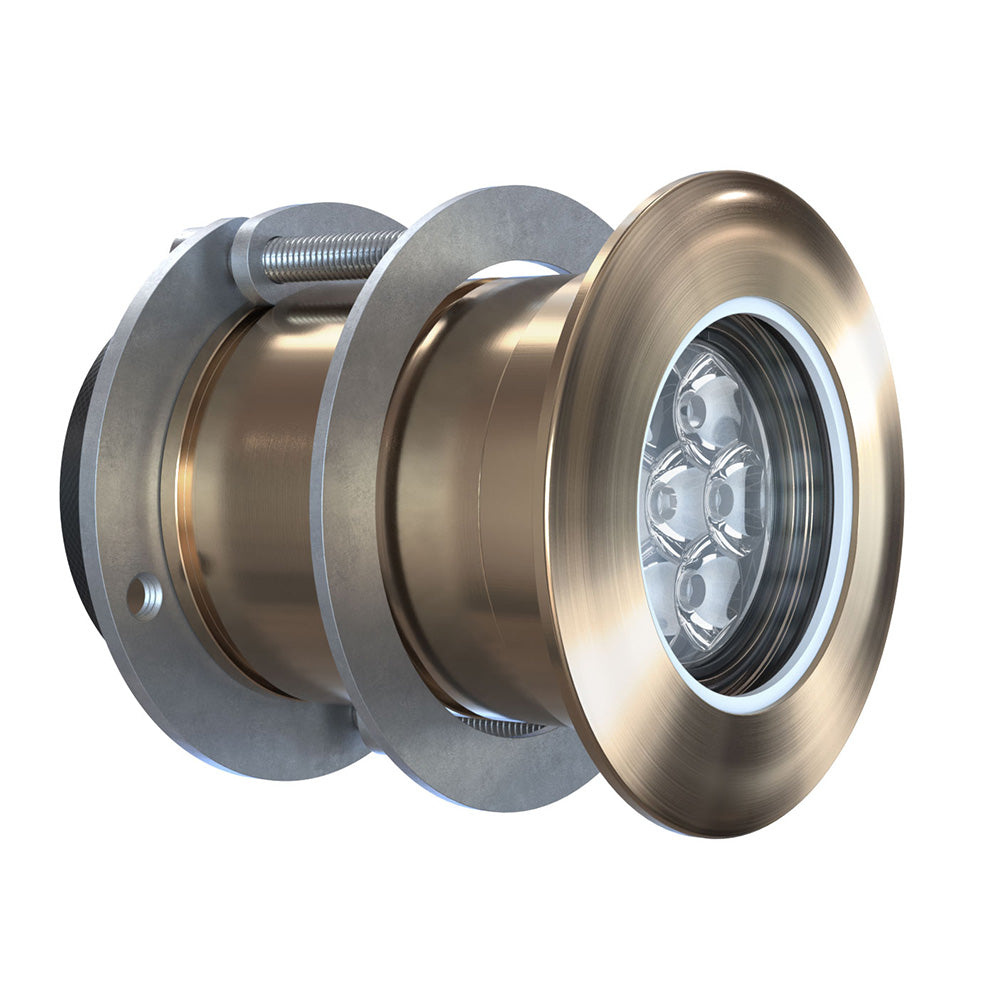

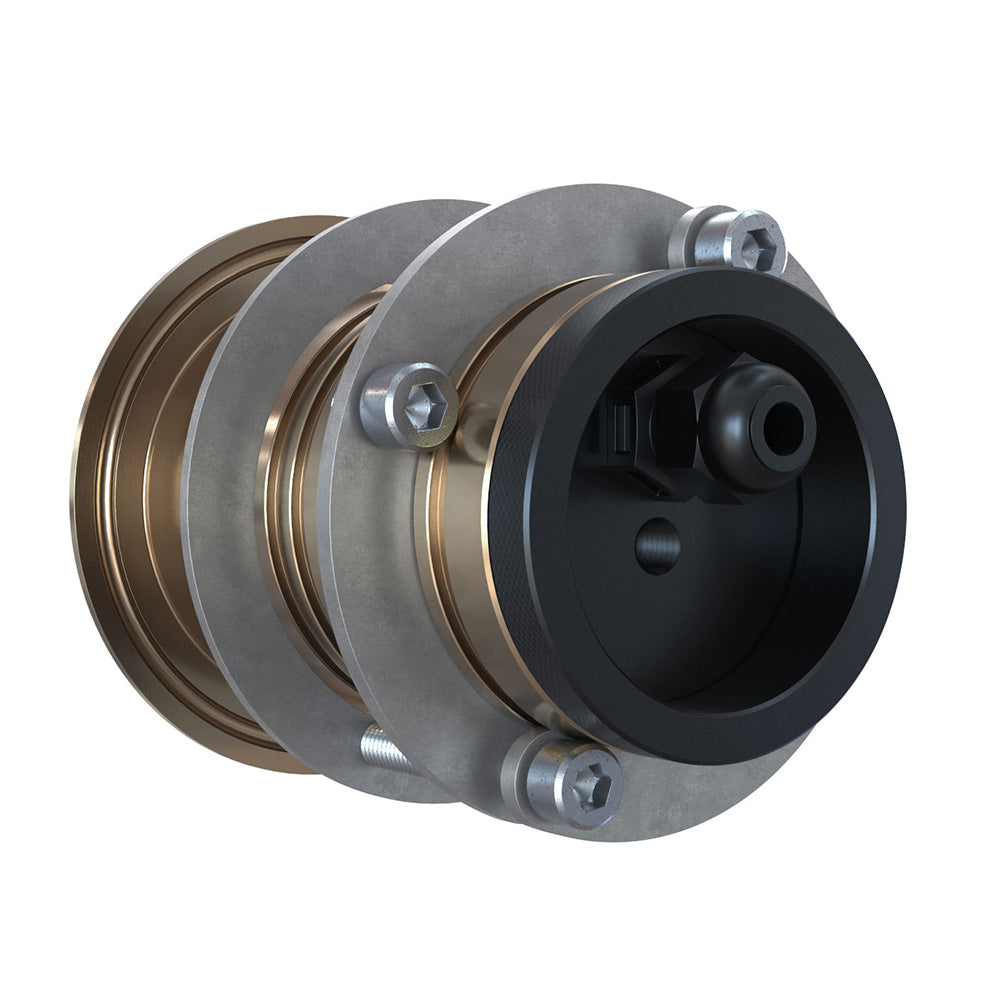

OceanLED Explore E2 Narrow Beam - Midnight Blue
OceanLED Explore E2 Narrow Beam - Midnight Blue is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Explore E2 Narrow Beam in Midnight Blue is the perfect lighting solution for marine enthusiasts seeking high-performance, compact, and versatile lights for their vessels. Designed for tight installation spaces, the E2 delivers the exceptional build quality and premium features found in our larger Explore range, ensuring reliable illumination in any marine environment.
Key Features
- Dual Beam Options: Choose between the Explore Series wide-angle beam (90° x 20° Elliptical) or the new narrow “laser” beam shape (20° Circular) to achieve your desired lighting effect.
- High Luminosity: Provides up to 3000 fixture lumens, ensuring bright and clear visibility on the water.
- Compact Design: Designed with a compact form factor and built-in driver, making it ideal for boats with limited space.
- Ultra-Low Profile: Features an ultra-low profile outer bezel for a sleek and unobtrusive appearance.
- Advanced Water Protection: Rated IP69k, offering the highest level of water ingress protection, including rear temporary submersion protection for added safety in rough seas.

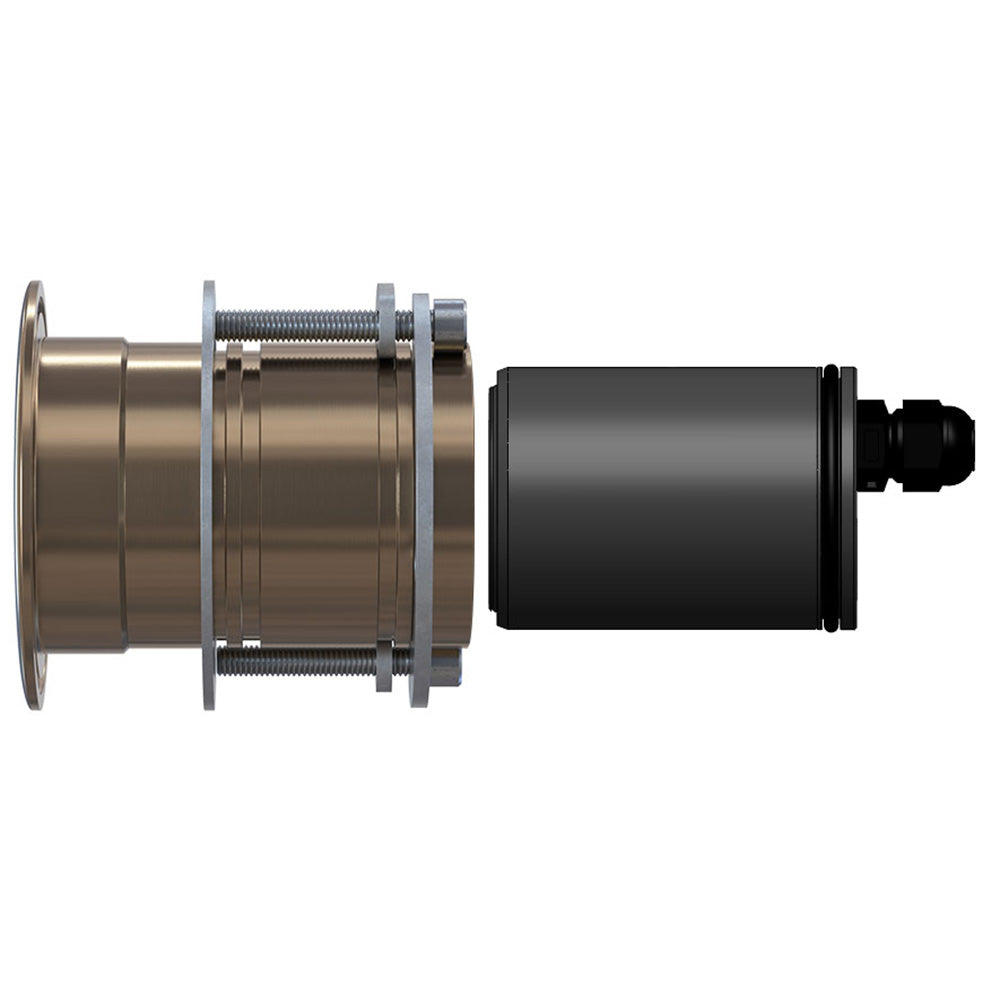

- Easy Maintenance: Equipped with XFM Removal capabilities, allowing you to remove the light body for maintenance or upgrades without needing to haul the boat.
- Flexible Control: Compatible with third-party switches or push buttons of your choice for seamless integration into your boat’s electrical system.
- Durable Construction: Features a Tritonium coated lens for anti-fouling properties and robust AB2 Aluminium Bronze materials for longevity.
- Fish Strobe: Includes a fish strobe function to attract fish, enhancing your fishing experience.
Specifications
| Specification | Details |
|---|---|
| Fixture Lumens* | 3000 |
| Beam Angle (Wide) | 90° / 20° Elliptical |
| Beam Angle (Narrow) | 20° Circular |
| IP Rating | IP69k |
| Operating Voltage (DC) | 10-30V DC |
| Current / Amp Draw (DC) | 3.5A @ 12V DC / 1.5A @ 24V DC |
| Driver Type | Internal |
| Correlated Color Temperature | 6500K (White) |
| Rear Temporary Submersion Protection | Yes |
| Fish Strobe | Yes |
| Anti-fouling Properties | Tritonium Coated Lens |
| LED Manufacturer | CREE |
| CE Approved | Yes |
Mounting Recommendations
- Boat Size: Suitable for vessels up to 20m (65’).
- Transom / Hull Spacing: Requires 1 - 1.5m (3-5’) spacing.
- Installation Depth Below Waterline: 25-30cm (10-12”).
- Maximum Hull Thickness: 60mm (2.4”).
Physical Specifications
| Dimension | Measurement |
|---|---|
| Total Weight | 0.8kg (1.76lbs) |
| Total Diameter (Including Bezel) | 80mm (3.15”) |
| Diameter Of Body | 59mm (2.32”) |
| Profile Of Fixture | 3.5mm (0.14”) |
| Overall Length | 101.5mm (4”) |
| Minimum Space Required Inside The Hull | 172mm (6.78”) |
| Hole Cut-Out | 60mm (2.37”) |
| Material (Mounting Tube / Bezel) | AB2 Aluminium Bronze |
| Material (Light Body) | AB2 |
| Lens | Glass |
| Optics (Wide Beam Option) | Hybrid Collimated |
| Optics (Narrow Beam Option) | Collimated |
