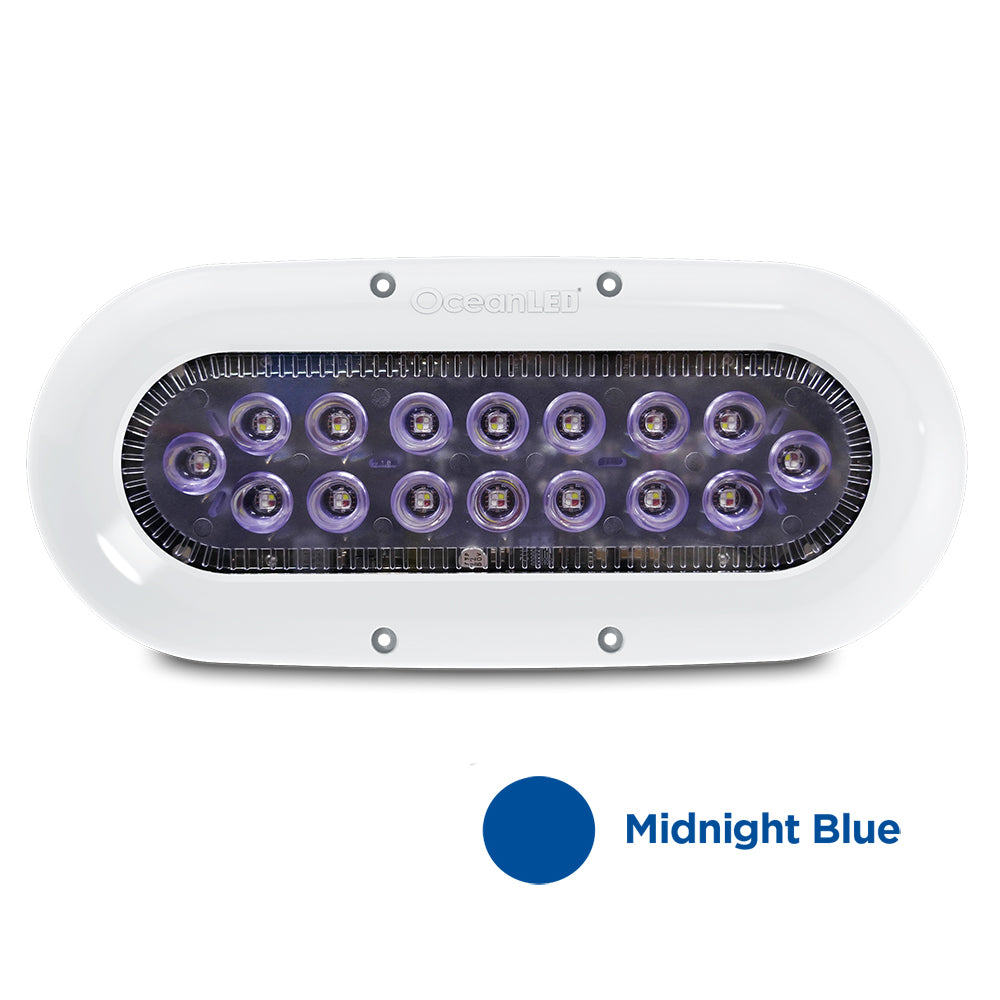

Ocean LED X-Series X16 - Midnight Blue LEDs
Ocean LED X-Series X16 - Midnight Blue LEDs is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The OceanLED X-Series X16 in Midnight Blue offers exceptional brightness and durability for marine enthusiasts. Designed for both cruising and fishing, this LED fixture enhances your boating experience by providing superior illumination, allowing you to extend your time on the water with family and friends.
Key Features
- High Brightness: Delivers an impressive 5,800 Lumens, ensuring outstanding visibility even in low-light conditions.
- Wide Beam Angle: A 60° circular beam provides extensive water penetration, lighting up large areas with ease.
- Compact Design: Low-profile construction for seamless installation without compromising on performance.
- Color Versatility: Choose between Midnight Blue, Ultra White, or customize with any color from the RGBW spectrum.
- Fish-Strobe Mode: Engages a randomized strobe pattern to attract bait fish, increasing your chances of a successful catch.
- Easy Installation: Requires only a 12.5mm hole in the hull and four screws, making it ideal for DIY enthusiasts.
- Low Maintenance: Tritonium-coated lens prevents marine growth, allowing for effortless cleaning.
Performance and Illumination
The X-Series X16 is engineered to deliver exceptional lighting performance. With a total of 16 high-quality CREE LEDs, it produces a focused 60° beam that penetrates deeply into the water, providing clear visibility up to 100 feet in perfect conditions. Whether navigating at night or searching for fish, the X16 ensures you have the light you need for a safe and enjoyable experience.
Color Options
Customize your lighting to suit your preferences and needs:
- Single Color: Available in Midnight Blue or Ultra White.
- RGBW Spectrum: Select any color from the RGBW spectrum and toggle between colors using the DMX controller or smartphone app for limitless customization.
Enhanced Fishing with Fish-Strobe Mode
Maximize your fishing efficiency with the Fish-Strobe mode. This feature emits a randomized strobe pattern proven to attract bait fish, increasing your chances of a successful catch. Simply activate the mode to enhance your fishing experience effortlessly.
Easy Installation
The X16 is designed for hassle-free installation:
- Drill a 12.5mm hole through the hull.
- Run the cable through the hole.
- Secure the fixture with four screws.
- Connect to a 12V power source, and you're ready to illuminate your vessel.
No bonding or complex procedures are required, making it perfect for both professional installations and weekend DIY projects.
Durability and Maintenance
Built to withstand the harsh marine environment, the X16 features a Tritonium-coated lens that resists marine growth. Maintenance is simple—just wipe the lens with a cloth to keep it clear. The chemically resistant optical polymer construction ensures longevity and reliable performance with minimal upkeep.
Technical Specifications
| Specification | Details |
|---|---|
| Light Output Equivalent To | 150 Metal Halide |
| Fixture Lumens* | 4,500 |
| Total Lumens | 5,800 |
| Beam Angle | 60° Circular |
| LED Life Expectancy | 40,000 Hours |
| Operating Voltage (DC) | 9 - 32 V DC |
| Operating Voltage (AC Optional) | 3.2A @ 12V DC - 1.5A @ 24V DC |
| Light Penetration (Avg. Water Quality) | 40' (12M) |
| Light Penetration (Perfect Water Quality) | 100' (30M) |
| Driver Type | Internal |
| Color Options | Ultra White, Midnight Blue, Colors |
| Correlated Color Temperature | 6500 K - 450 nm |
| IP Rating | IP68 |
| Fish Strobe | Yes |
| Anti-Fouling Properties | Tritonium Coated Lens |
| LED Manufacturer | CREE |
| Warranty | 2 Years |
Mounting Recommendations
| Recommendation | Details |
|---|---|
| Boat Size | Up to 65' (20M) |
| Transom / Hull Spacing | 2-4' (0.5-1.2M) |
| Transom Quantity | 2-6 |
| Hull Quantity | 4-8" (10-20cm) |
| Maximum Hull Thickness | N/A |
| Installation Depth (to top of fixture) | 300mm below waterline |
| In-Water Fitting | No |
Physical Specifications
| Specification | Details |
|---|---|

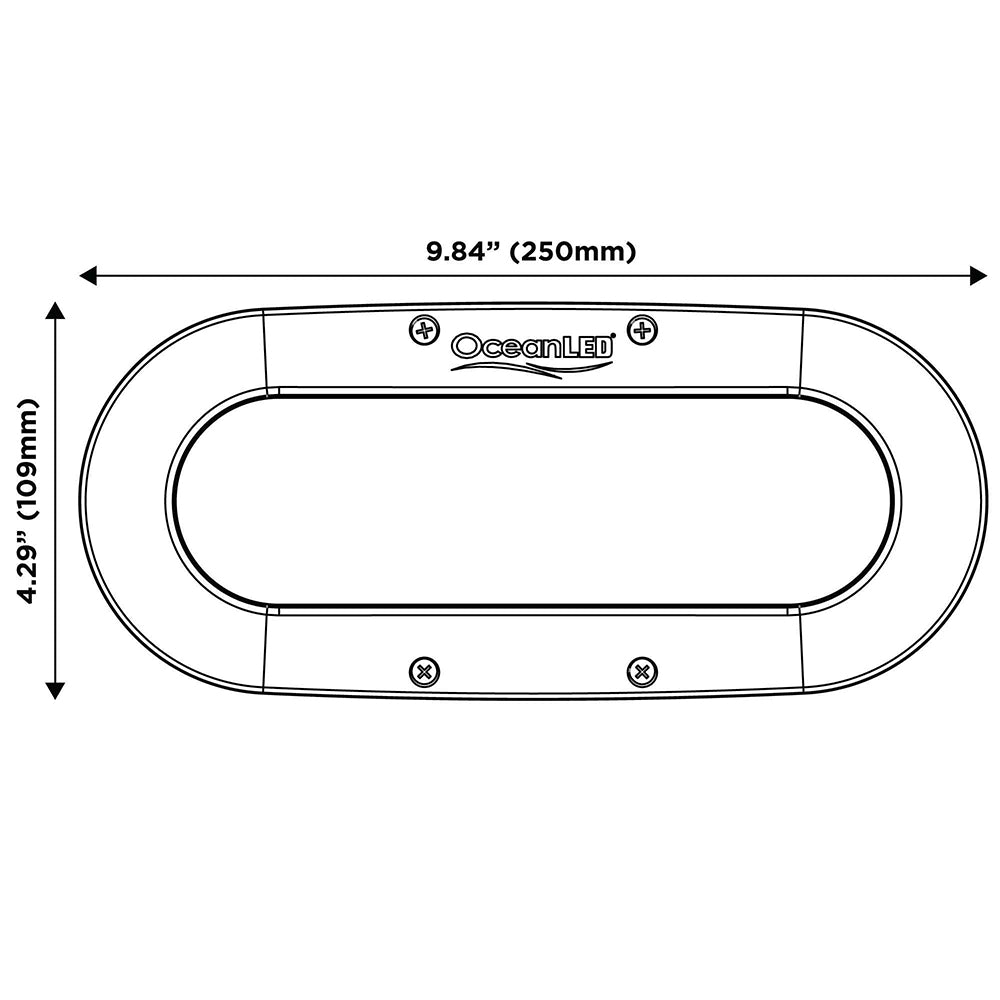

| Size | 9.84" (250mm) x 4.29" (109mm) |

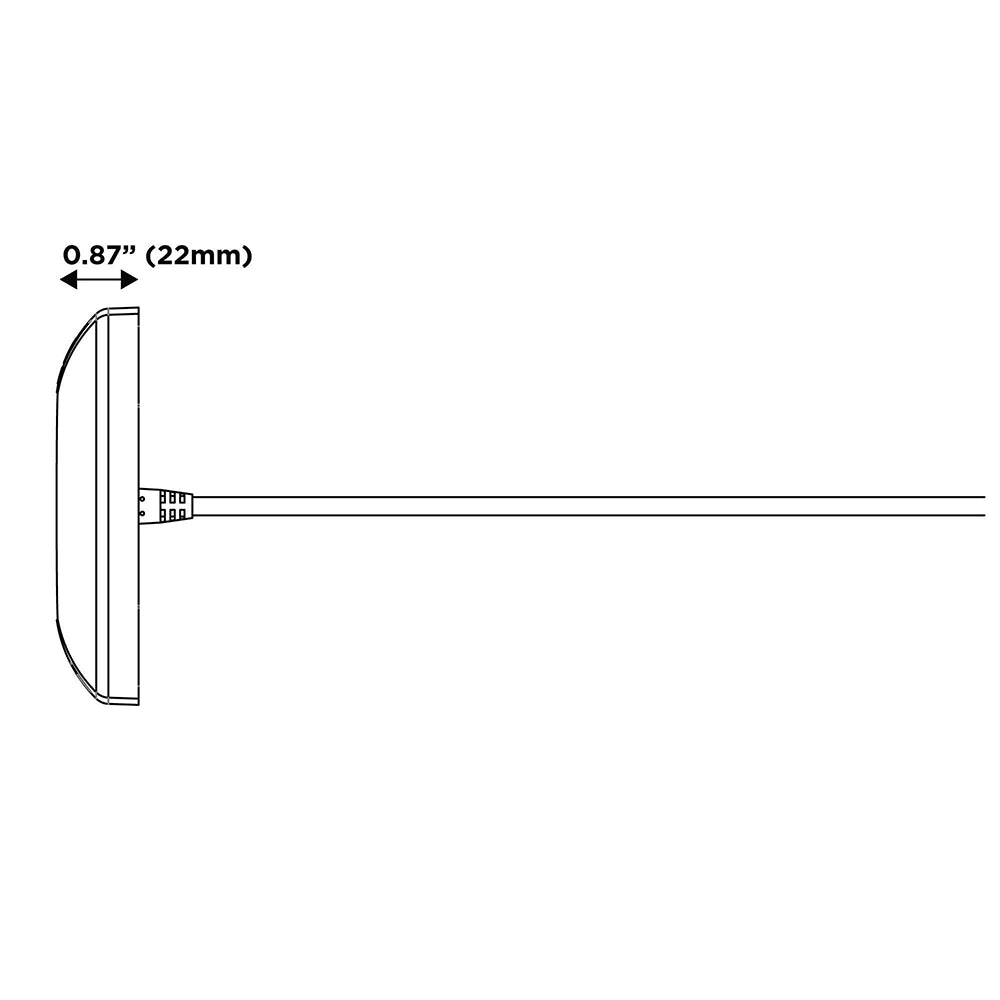

| Depth | 0.86" (22mm) |
| Total Weight (Including Driver) | 0.50kg |
| Extension Cable Length | 9-7/64' (3M) |
| Hole Cut-Out for Cable Entry | 1/2" (12.5mm) |
| Material | Chemically Resistant Optical Polymer |
| Lens Material | Pilkington Optiwhite |
| Body Construction | Machined (First Release) |
| Bezel Material | Plastic |
| Bezel Options | Stainless Steel Bezel Optional |
| Bezel Color | White |
| Optics | Collimator |
| Number of LEDs | 16 |
| Certification | EMC Approved, CE Approved |
Additional Specifications
- Mounting Style: Surface
- Color: Blue
- Material: Polymer
- Box Dimensions: 3"H x 5"W x 11"L
- Weight: 1.2 lbs
- UPC: 5051803007289
