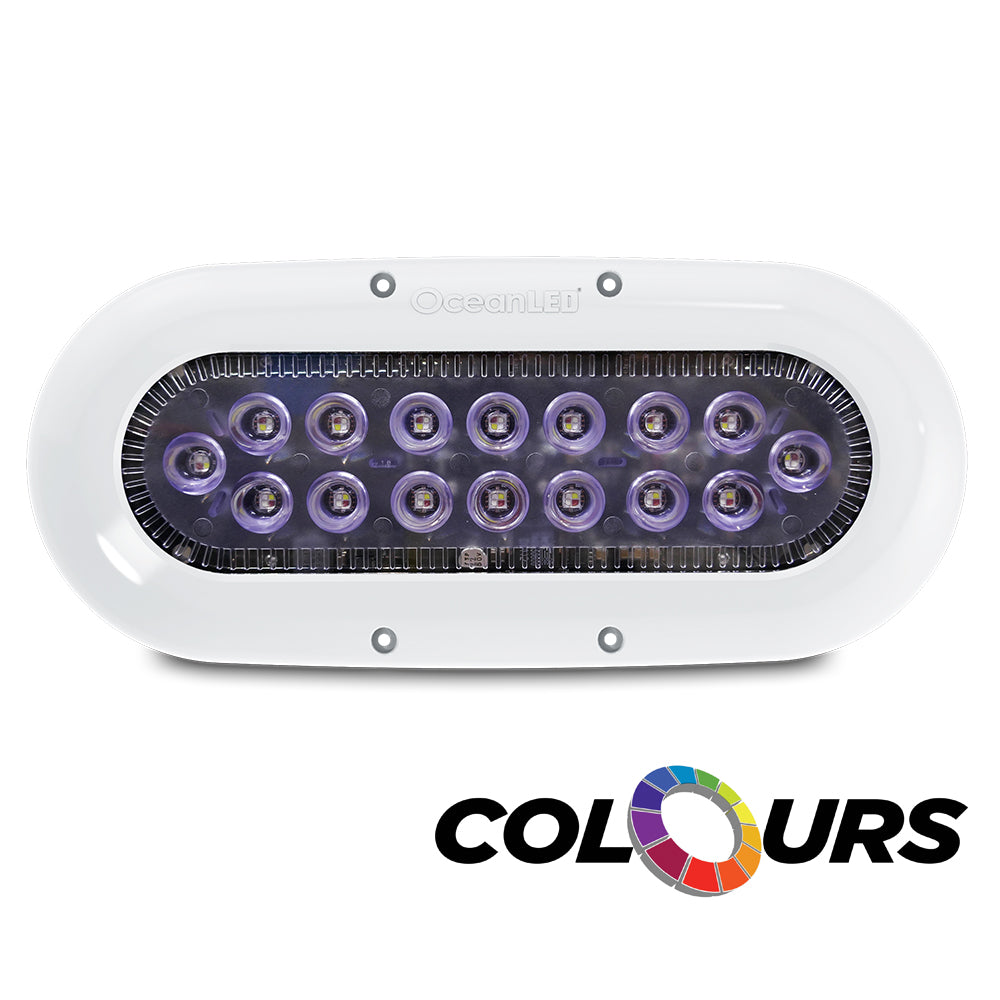

Ocean LED X-Series X16 - Colors LEDs
Ocean LED X-Series X16 - Colors LEDs is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The OceanLED X-Series X16 delivers exceptional brightness and versatile lighting options tailored for boating enthusiasts. Whether you're navigating open waters or casting lines for a fishing adventure, the X16 ensures your vessel is illuminated with style and efficiency, enhancing your time on the water with family and friends.
Key Features
- High Lumens Output: Boasting up to 5,800 lumens, the X16 offers unparalleled brightness in a compact design.
- Versatile Beam Angle: A 60° circular beam provides extensive water penetration, lighting up large areas for optimal visibility.
- Customizable Colors: Choose from single color options in Midnight Blue or Ultra White, or opt for the RGBW spectrum to create dynamic lighting effects via the DMX controller or smartphone app.
- Fish-Strobe Mode: Engage the randomized strobe pattern to attract bait fish, increasing your chances of a successful catch.
- Easy Installation: The low-profile design requires only a 12.5mm hole for cable routing and simple screw mounting, making it ideal for DIY installations.
- Low Maintenance: The Tritonium-coated lens allows for effortless cleaning by simply wiping away marine growth.
Technical Specifications
| Parameter | Details |
|---|---|
| Light Output Equivalent | 150 Metal Halide |
| Fixture Lumens* | 4,500 |
| Total Lumens | 5,800 |
| Beam Angle | 60° Circular |
| LED Life Expectancy | 40,000 hours |
| Operating Voltage DC | 9 - 32 V DC |
| Operating Voltage AC (Optional) | 3.2A @ 12V DC - 1.5A @ 24V DC |
| Light Penetration (Average Water) | 40' (12M) |
| Light Penetration (Clear Water) | 100' (30M) |
| Driver Type | Internal |
| Color Options | Ultra White, Midnight Blue, Full Color RGBW |
| Correlated Color Temperature | 6500 K - 450 nm |
| IP Rating | IP68 |
| Fish Strobe | Yes |
| Anti-Fouling Properties | Tritonium Coated Lens |
| LED Manufacturer | CREE |
Physical Specifications
| Parameter | Details |
|---|---|

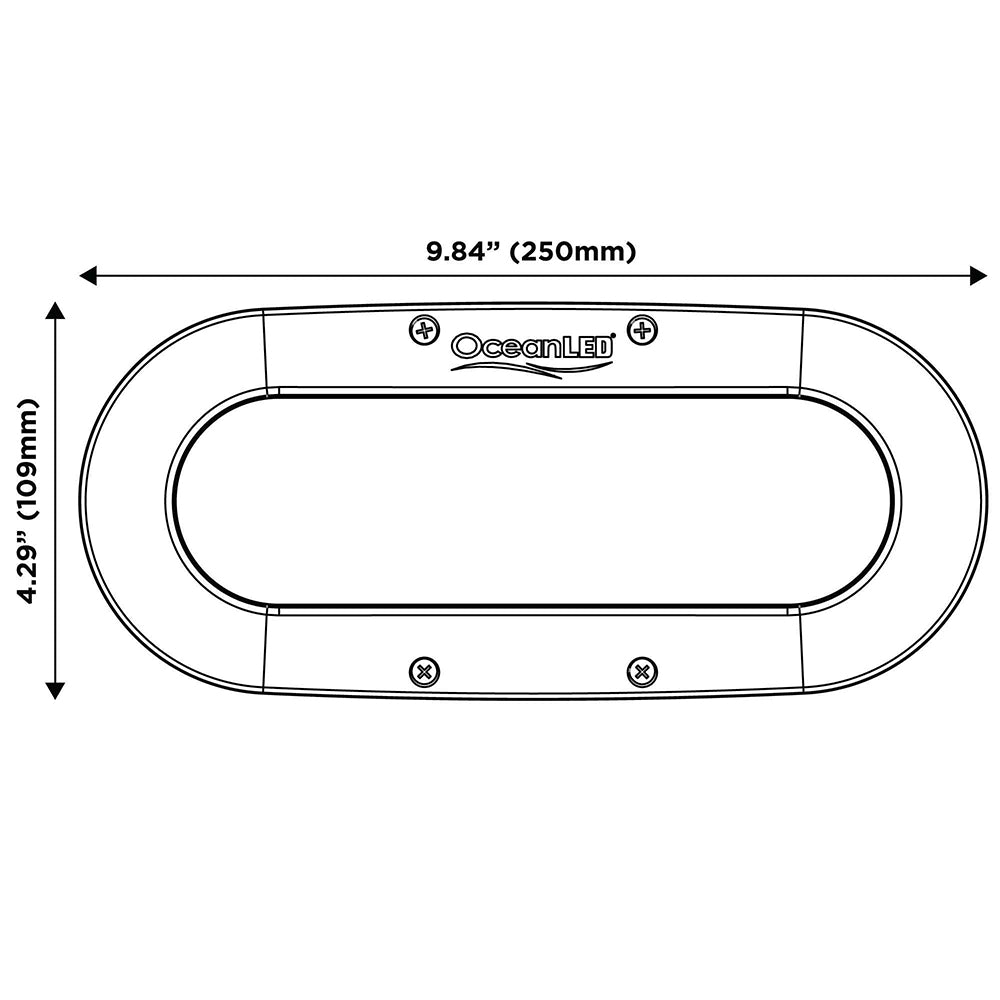

| Dimensions | 9.84" (250mm) x 4.29" (109mm) |

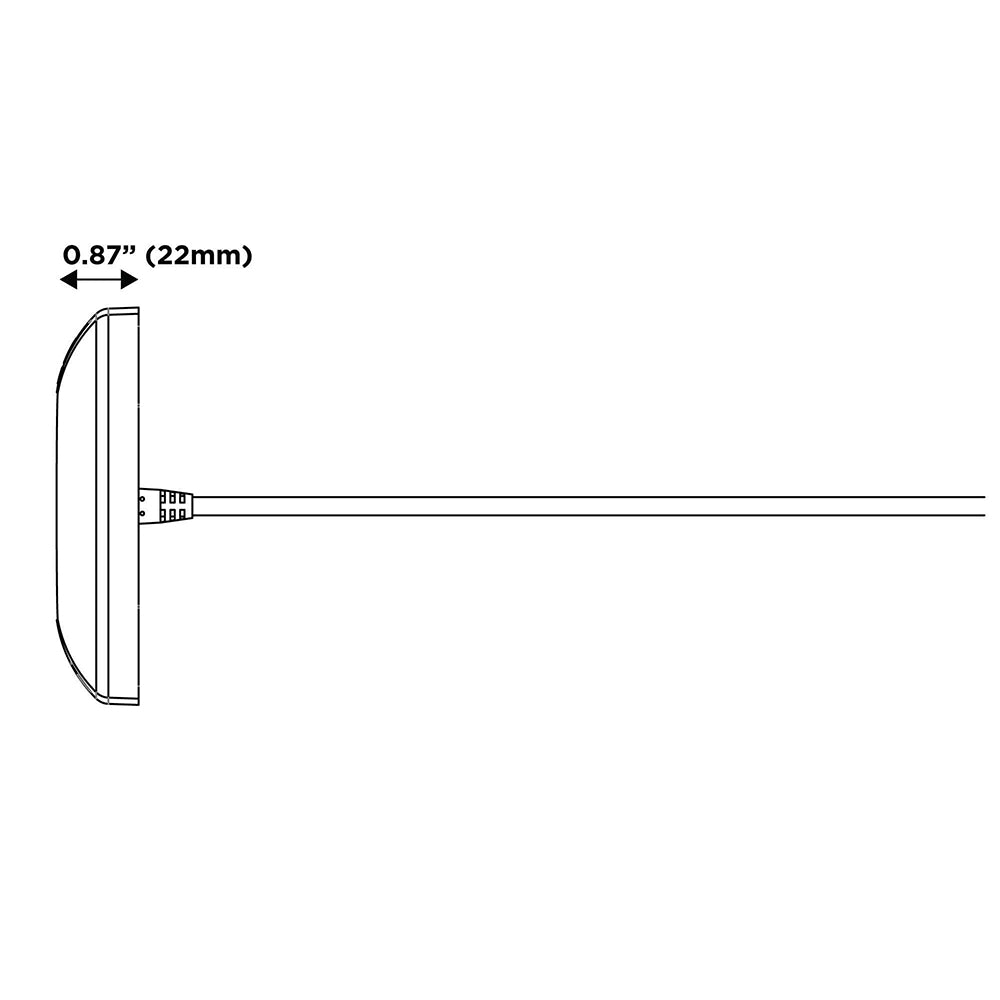

| Depth | 0.86" (22mm) |
| Weight | 0.50kg (including electrical driver) |
| Extension Cable Length | 3M (Standard Hard Wired) |
| Hole Cut-Out | 1/2" (12.5mm) |
| Material | Chemically Resistant Optical Polymer |
| Lens Material | Pilkington Optiwhite |
| Body Construction | Machined (First Release) |
| Bezel Material | Plastic (Stainless Steel Bezel Optional) |
| Bezel Color | White |
| Optics | Collimator |
| Number of LEDs | 16 |
| Certification | EMC Approved, CE Approved |
Mounting Recommendations
- Boat Size: Suitable for vessels up to 65' (20M)
- Transom/Hull Spacing: 2-4' (0.5-1.2M)
- Transom Quantity: 2-6
- Hull Quantity: 4-8" (10-20cm)
- Installation Depth: 300mm below the waterline
- In-Water Fitting: Not required
Warranty
- Duration: 2 Years
