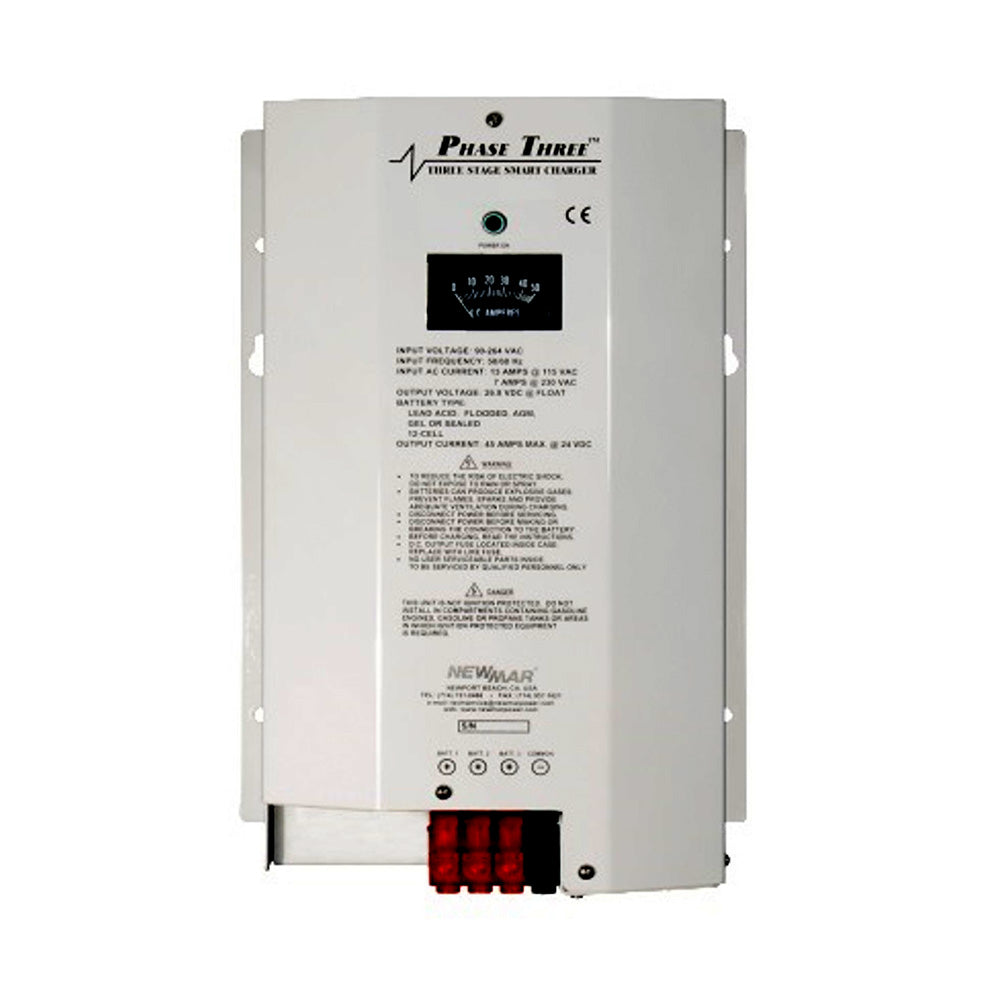

Newmar PT-24-8W Battery Charger

The PT-24-8W Battery Charger offers state-of-the-art smart charging technology tailored for 24-volt marine electrical systems. Perfect for workboats, military and commercial vessels, as well as recreational boats, this charger ensures efficient battery conditioning, maximizing performance and prolonging battery life.

Smart Marine Charging Technology

Specially designed for marine environments, the PT-24-8W interacts intelligently with your boat’s batteries. It delivers an optimized three-stage charging process—bulk, absorption, and float—facilitating rapid recovery and conditioning. This not only enhances battery performance but also extends battery lifespan, making it an essential component for reliable marine electrical systems.

Versatile Battery Compatibility

The charger features a selector switch that adjusts the output voltage to accommodate different battery types, including gel-cell, flooded lead-acid, and AGM batteries. This ensures that each battery type receives the precise charging requirements for optimal performance and longevity.

Temperature Compensation for Optimal Charging

Equipped with an optional temperature compensation sensor, the PT-24-8W automatically adjusts the output voltage based on ambient temperature changes. This feature maintains ideal charging conditions in varying marine climates, protecting your batteries from temperature-related stress and ensuring consistent performance.

Durable Marine-Grade Construction

Built to withstand the harsh conditions of the marine environment, the charger is housed in a rugged stainless steel case with a durable white powder coat finish. The internal circuitry is coated with polyurethane, providing maximum corrosion resistance and ensuring long-term reliability aboard your vessel.

Features

• 24-volt marine battery charger model
• Intelligent three-stage charging: bulk, absorption, float
• Selector switch for gel-cell, flooded lead-acid, and AGM batteries
• Multiple isolated output banks with ammeter for monitoring total output current
• Optional temperature compensation sensor for adaptive voltage control
• Current limiting to prevent overloading and potential damage
• Can function as a standalone power supply without a battery connection
• Robust stainless steel housing with white powder coat finish
• Polyurethane-coated internal circuitry for corrosion resistance
• Protection features include: Current Limiting, Thermal Protection, Forced Air Cooling, and Drip Shield
• Compatible with PT-MCU for enhanced control and monitoring of charging operations
• ABS-approved for marine battery charging and power supply applications

Technical Specifications

Parameter	Details
Input Voltage (VAC)	85 – 264 V (50-60 Hz)
Input Current @ Full Load	2.8 A @ 115 VAC, 1.4 A @ 230 VAC
Power Factor	0.98 @ 115V, 0.93 @ 230V
Maximum Output Current	8 A
Output Banks	3
Battery Capacity (Amp-Hours)	16 – 80 Ah
Operating Temperature Rating	-10°C to +60°C
Case Dimensions (H x W x D)	11.2” x 7.7” x 4.75” (28.4 x 19.6 x 12.1 cm) With Dripshield: +1.1” height, +0.92” depth
Weight	8 lbs / 4 kg
Optional Temperature Sensor Models	TCS-12/24
Remote Panel Model	RP
Compliance Certifications	CG, CE, ABS

Temperature Performance

Aspect	Details
Operating Temperature Range	-10°C to +60°C
Derating	Linearly derates from 100% at 40°C to 60% at 60°C

Charging Voltage Settings

Battery Type	Charge Voltage @ 50% Load (VDC)	Float Voltage @ 0.5 A Load (VDC)
Gel-Cell	28.0	27.2
Flooded/AGM	28.4	26.8

Compliance and Certifications

• UL 1950 (per DNB report)
• USCG CFR 183.410 (Ignition Protected)
• EN 60335-1
• CE Mark
• ABS Certified (compliant with SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13)

Available Options

• Remote Panel (Model RP): Compatible with all models except PT-24-20U, PT-24-60, and PT-32-25. Features LED indicators for charger output stages and allows manual re-initialization of the three-stage charge cycle. Includes 25′ of cable. Panel dimensions: 3″ H x 4.75″ W.

Additional Specifications

• Charger Input Voltage: 115/230V
• Charger Output Amperage: 8A
• Charger Output Voltage: 24V
• Charging Banks: 3
• Inverter Input Voltage: 115/230V
• Inverter Output Voltage: 24V
• Outlet Quantity: Hardwire
• Portability: No
• Box Dimensions: 10” H x 10” W x 16” L
• Weight: 8.3 lbs

Resources

Quick Guide (PDF)
Owner's Manual (PDF)
