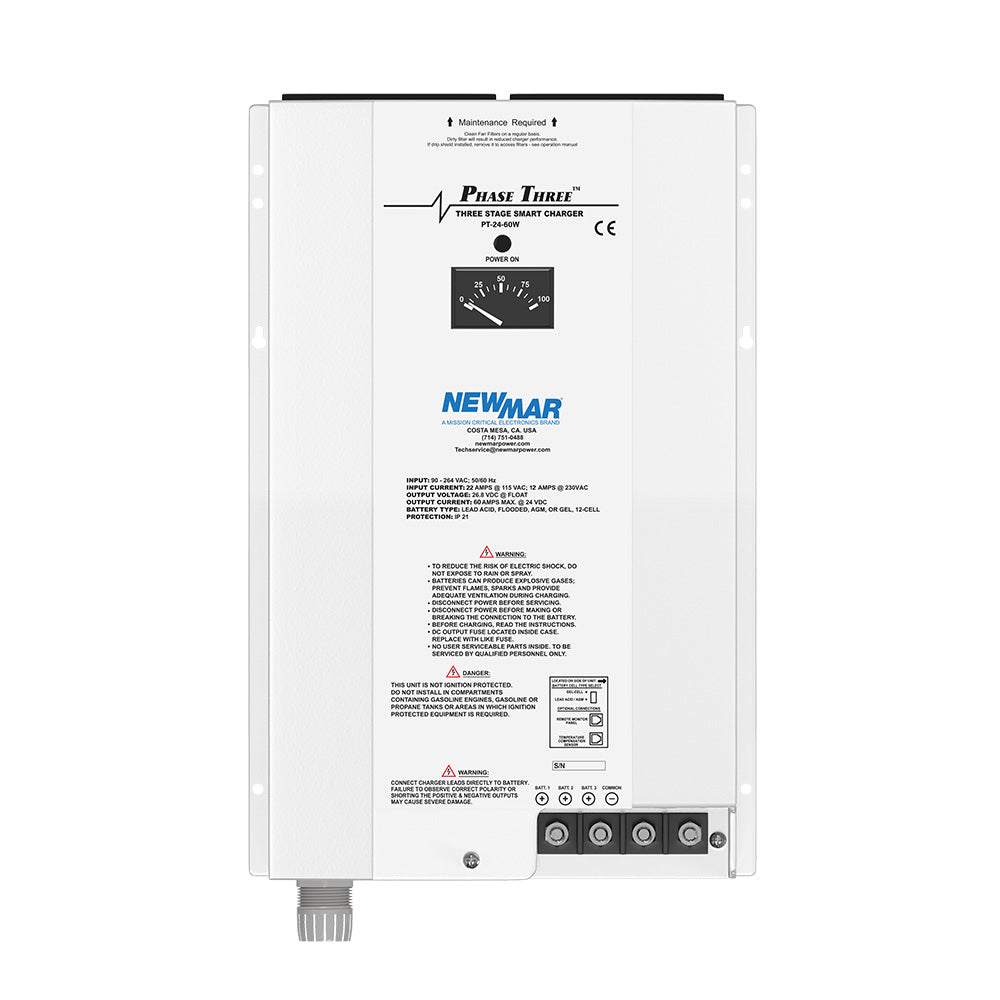

Newmar PT-24-60W Battery Charger

The PT-24-60W Battery Charger is engineered with advanced "Smart" marine charging technology, specifically designed for 24V systems on workboats, military and commercial vessels, as well as recreational boats. It ensures optimal battery performance through a precise three-stage charging process, enabling fast recovery, conditioning, and extended battery life.

Advanced Charging Technology

Utilizing intelligent circuitry, the PT-24-60W delivers a three-stage charge—bulk, absorption, and float—tailored to the specific needs of your marine batteries. This smart interaction with the battery ensures efficient charging, enhances performance, and prolongs battery lifespan.

Versatile Battery Compatibility

Equipped with a selector switch, this charger adapts to various battery types including gel-cell, flooded lead-acid, and AGM. Additionally, an optional temperature compensation sensor fine-tunes the output voltage in response to ambient temperature changes, ensuring consistent and reliable charging under different environmental conditions.

Durable and Corrosion-Resistant Construction

Housed in a robust stainless steel case with a durable white powder coat finish, the PT-24-60W is built to withstand harsh marine environments. The internal circuitry is coated with polyurethane, providing maximum resistance against corrosion and ensuring long-term reliability.

Key Features

• 24V model suitable for a wide range of marine applications
• Three-stage smart charging: bulk, absorption, float
• Selectable charge modes for Gel-cell, Flooded Lead-acid, and AGM batteries
• Multiple isolated output banks with ammeter display for total output current
• Optional temperature sensor for precise voltage adjustment based on battery temperature
• Current limiting to prevent overloading and potential damage
• Capable of functioning as a standalone power supply without a battery
• Rugged stainless steel casing with white powder coat finish and optional drip shield
• Comprehensive protection features: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Compatible with PT-MCU for enhanced control and monitoring
• ABS type approved for marine battery charging and power supplies

Technical Specifications

Specification	Details
Input Voltage (VAC, 50-60 Hz)	207-253
Input Amps @ Full Load	NA @ 115 VAC, 13 @ 230 VAC
Power Factor	0.7
Max Output Amps	60
Output Banks	3
Battery Capacity (Amp-Hours)	120-600
Operating Temperature Rating Reference	T-4
Case Size Reference	A-5
Case Dimensions (H x W x D)	17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E cm) *With Dripshield: +2” Height, +1” Depth
Weight	24.1 lbs / 11 kg
Optional Temperature Sensor Model	TP
Remote Panel Model	N/A
Compliance	EN, CE, ABS

Temperature Ratings

• Operating Temperature Range: -20°C to +50°C
• Performance derates linearly from full output as temperature changes

Output Voltage Settings

Battery Type	Charge Voltage @ 50% Load (VDC)	Float Voltage @ 0.5 Amp Load (VDC)
Gel-Cell	28.0	27.2
Flooded/AGM	28.4	26.8

Compliance and Certifications

• UL: UL 1950 (per DNV report)
• CG: USCG CFR 183.410 (Ignition Protected)
• EN: EN 60335-1
• CE: Carries the CE mark
• ABS: Meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13

Please Note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.
