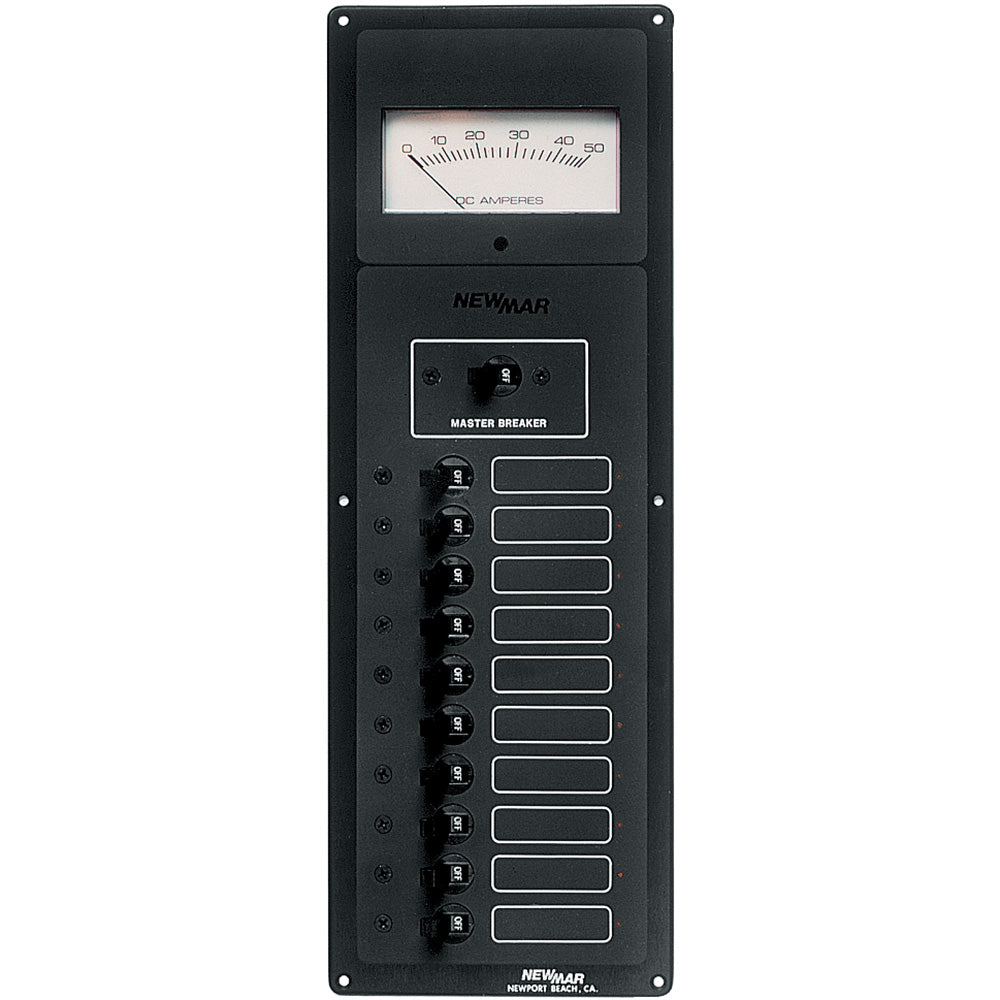

Newmar ES-7D Elite DC Panel

The ES-7D Elite DC Panel is an essential component for marine and boating enthusiasts seeking to enhance their vessel's electrical system. Designed for flexibility and reliability, this panel allows you to expand the AC or DC circuit capacity of any Elite Series panel or function seamlessly as a standalone load center, ensuring your boat's power distribution meets all your onboard requirements.

Enhanced Features for Marine Applications

• Dual Voltage Compatibility: Operate seamlessly with both AC (120/240V) and DC (12/24V) power systems, providing versatility for diverse marine electrical setups.
• Adjustable Master Breaker:
  • AC Systems: Comes standard with a double pole 50 amp breaker, with an option for a 30 amp breaker to suit different power needs.
  • DC Systems: Equipped with a single pole 100 amp breaker as standard, with optional upgrades to 50 or 75 amp breakers for enhanced performance.
• Comprehensive Circuit Capacity: Supports up to 16 branch circuits, allowing ample power distribution for various onboard electrical devices and systems.
• Customizable Branch Circuits:

  Panel Model	Branch Circuit Ratings
  ES-7A	2-10A, 5-15A, 5-20A
  ES-7D	2-5A, 3-10A, 5-15A, 2-20A

Technical Specifications

• Dimensions: 5.25 inches (W) x 15 inches (H) x 4 inches (D)
• Weight: 7 lbs (3.2 kg), ensuring easy installation without compromising durability.

Installation Guidelines

Master Breaker Selection:

• For 230 VAC line-to-line systems, a 50-amp master breaker is appropriate.
• In 230 VAC line-to-neutral systems, the master breaker should not exceed 30 amps to ensure system safety and compliance.

Integration Tips: When installing the ES-7D Elite DC Panel on your vessel, ensure it is securely mounted in a dry, ventilated area to prevent moisture ingress and overheating. Proper wiring and adherence to marine electrical standards will optimize the panel's performance and longevity.

Why Choose the ES-7D Elite DC Panel for Your Marine Electrical System?

Whether you're upgrading your boat's existing electrical infrastructure or outfitting a new vessel, the ES-7D Elite DC Panel provides unparalleled flexibility, robustness, and ease of use. Its ability to handle both AC and DC loads makes it a versatile choice for diverse marine power needs, while the extensive branch circuit capacity ensures all your devices operate reliably. Trust the ES-7D Elite DC Panel to deliver consistent power management, enhancing your boating experience with peace of mind.
