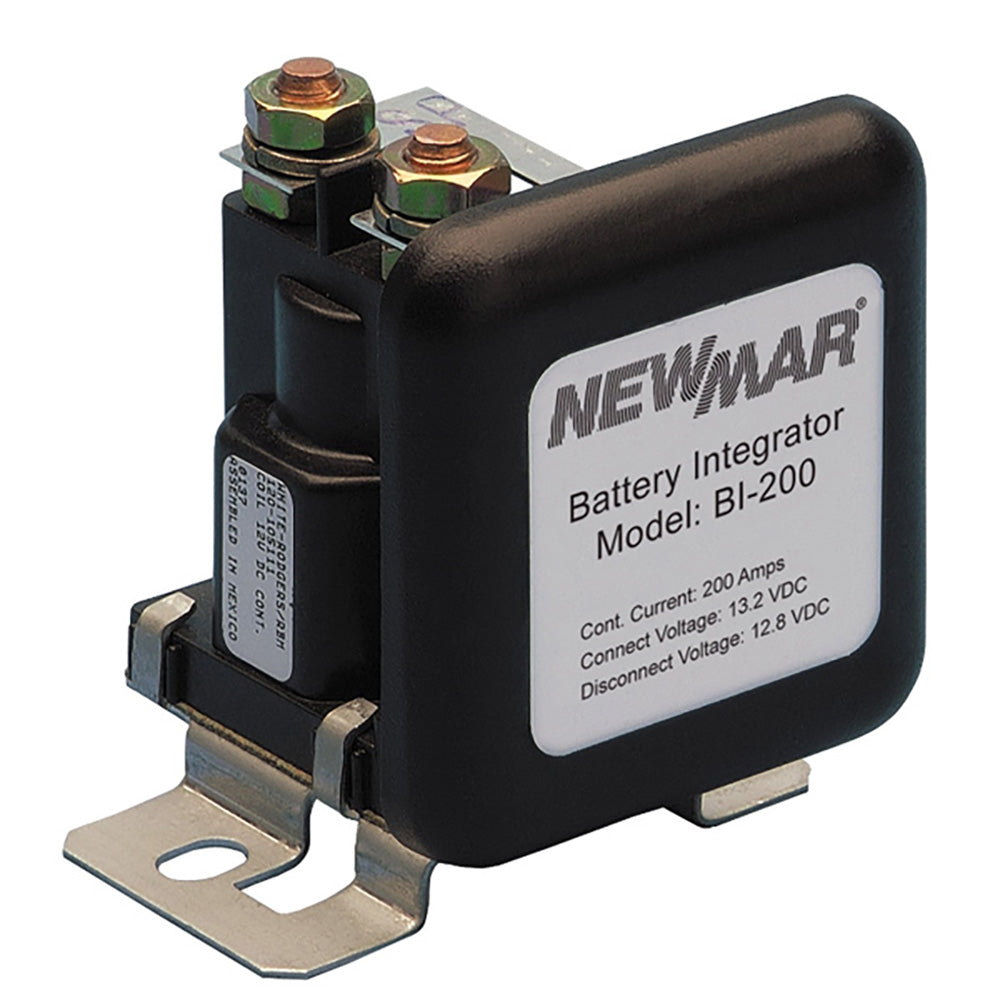

Newmar BI-200 Battery Integrator

The BI-200 Battery Integrator is an essential component for marine and boating enthusiasts, ensuring efficient and reliable management of multiple battery banks. Designed to automatically integrate and isolate batteries based on charging conditions, it enhances the performance and longevity of your vessel’s electrical system.

How the BI-200 Works

The BI-200 Battery Integrator seamlessly connects multiple battery banks only when a charge voltage is present. This integration allows simultaneous charging without the need for diode isolators. When the charging source, such as an alternator or charger, is active and provides a voltage of approximately 13.2 VDC or 26.4 VDC (depending on the model), the integrator operates as a smart switch to connect the batteries. Once the charge voltage is no longer present, the integrator automatically isolates the battery banks to prevent drain from the secondary or standby battery into the primary battery.

By maintaining this selective connection, the BI-200 ensures that each battery maintains its charge independently, avoiding voltage drops in the charging system and preventing the higher-charged bank from discharging into a lower-charged bank. Additionally, the unit can be remotely activated to provide an extra boost from the secondary battery during engine start, enhancing starting performance.

Key Features

• Enables charging of two separate banks without voltage drop while maintaining 100% isolation at all other times. For systems with three or more banks, additional units are required for each additional bank.
• Equipped with a heavy-duty silver-plated contactor, rated for continuous duty at 100 Amps or 200 Amps depending on the model.
• Designed for marine environments with voltage sense circuits, epoxy-encapsulated components, and heavy-duty continuous-rated solenoids.
• Includes an ignition protection rating to safeguard against electrical issues.
• Features an easy three-wire hookup for two-bank systems (BATT +, BATT +, GROUND).
• Provides a terminal for optional wiring of a remote light, indicating when battery banks are integrated.
• Offers optional internal connections that can be wired through the key starter or a manual override switch, allowing battery banks to tie together for an extra boost during engine start.

Specifications

Specification	Details
Terminals	5/16 in. copper alloy stud battery connections
Approvals	CE Marked
Dimensions (H x W x D)	200 Amp Models: 4 x 3.3 x 4.1 inches
Weight	2 lb.
Operating Temperature	Control: -40 to +85°C Solenoid: -28 to +48°C
Voltage	12 VDC
Battery Integration Point	13.2 VDC
Battery Disconnect Point	12.8 VDC
Max. Continuous Current	200 Amps
Peak Maximum Current	600 Amps

Why Choose the BI-200 Battery Integrator for Your Marine Setup?

The BI-200 Battery Integrator offers marine and boating enthusiasts a reliable solution for managing multiple battery banks efficiently. Its automatic integration and isolation capabilities ensure that your batteries are charged optimally while preventing unwanted drain and voltage drops. With robust construction designed for harsh marine environments and features like remote activation for engine start boosts, the BI-200 is a dependable addition to any vessel's electrical system.
