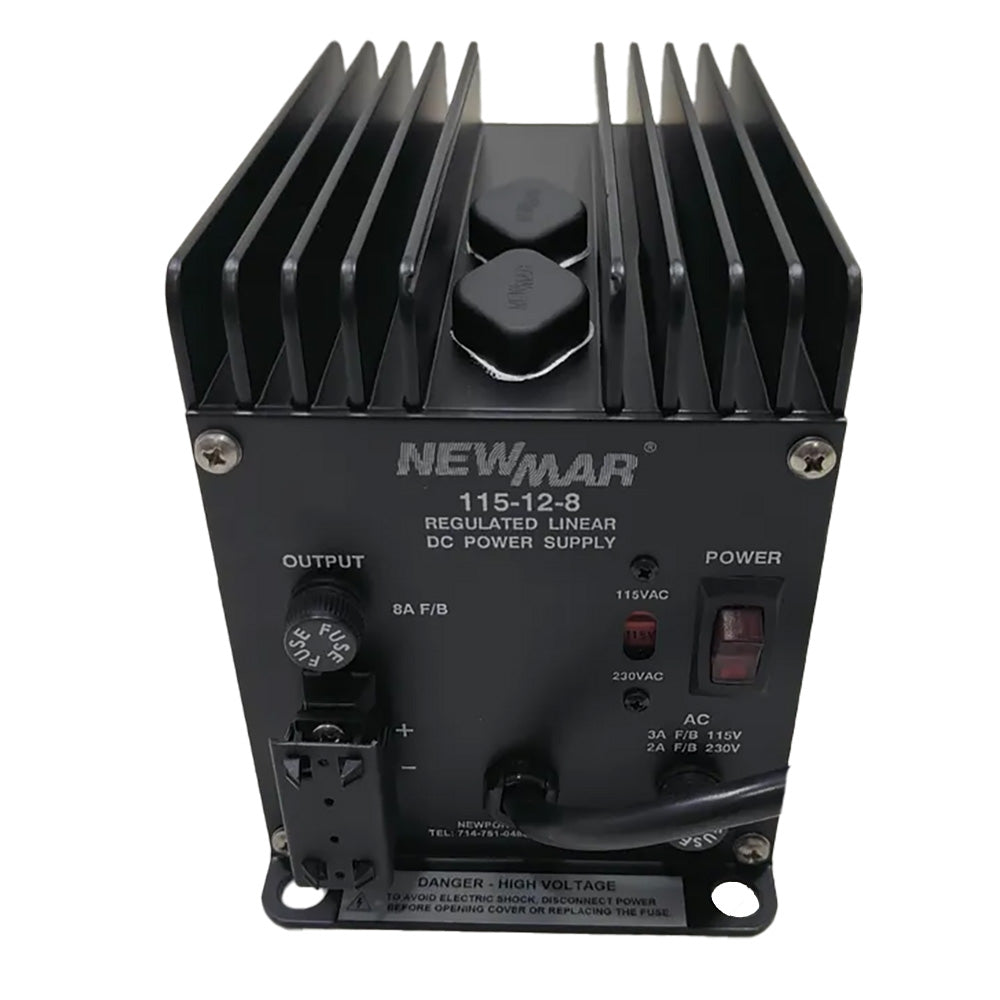

Newmar 115-12-8 Power Supply

Ensure reliable power for your marine communication and navigation systems with the 115-12-8 Power Supply. Designed for commercial vessels, this robust DC power supply delivers consistent 12-volt power, essential for critical onboard equipment, even in the most demanding maritime environments.

Key Features

• Superior Voltage Regulation: Maintains output voltage within 1% across all rated line and load conditions, ensuring stable performance.
• Durable Construction: Features a polyurethane conformal-coated PC board and a corrosion-resistant heavy-duty aluminum case with integral shock mounts, perfect for harsh marine conditions.
• Efficient Cooling: Large heat sink fins effectively dissipate heat from semi-conductors, promoting cool and reliable operation.
• Comprehensive Protection: Equipped with overvoltage protection, current limiting (set at 105% of intermittent rating), thermal overload protection, and input/output fusing to safeguard your equipment.
• Thermally Activated Cooling: Includes a cooling fan on “CD” units that activates based on temperature, ensuring optimal thermal management.

Technical Specifications

Parameter	Specification
Nominal Input Voltage	115/230 VAC
Maximum Input Current @115 VAC	2.5 A
Maximum Input Current @230 VAC	1.5 A
Output Amperage (Intermittent)	8 A
Output Amperage (Continuous)	5 A
Weight	32 lbs / 14.6 kg

Physical Dimensions

• Case Size: 6.0” (H) x 4.6” (W) x 8.5” (D)

Operating Conditions

Input Range: 105-125/210-250 VAC (selectable), 50-60 Hz. Output is derated to 50% below 110 VAC and 220 VAC.

Temperature Ratings

Standard Operating Temperature: 0-50°C. The unit derates linearly from 100% capacity at 40°C to 50% at 50°C. Thermal shutdown activates at a case temperature of 85°C to prevent overheating.

Duty Cycle

• Intermittent Use: Maximum of 20 minutes on time with a 20% duty cycle.
• Continuous Use: Can operate 24 hours a day at 100% duty cycle.

Available Options

• Conversion to a battery charger to meet specific power needs.
• Adjustable output voltage ranging from 12.6VDC to 14.5VDC.
• Installation of a transfer relay for backup battery support during power failures (ERC option).

Output Specifications

• Voltage: 13.6 VDC (adjustable internally between 12.6VDC and 14.5VDC).
• Ripple: 40mV P-P at 110-125 VAC / 220-250 VAC input.
• Regulation: Maintains 1% voltage stability under varying line and load conditions at both 110-125 VAC and 220-250 VAC input.

Mechanical Features

• Powder-coated aluminum heat sink case for enhanced durability and heat dissipation.
• Front panel terminal block for easy and secure connections.
• Heavy-duty mounting flange for stable installation on vessels.
• Conformal-coated PC board to resist corrosion and moisture in marine environments.
