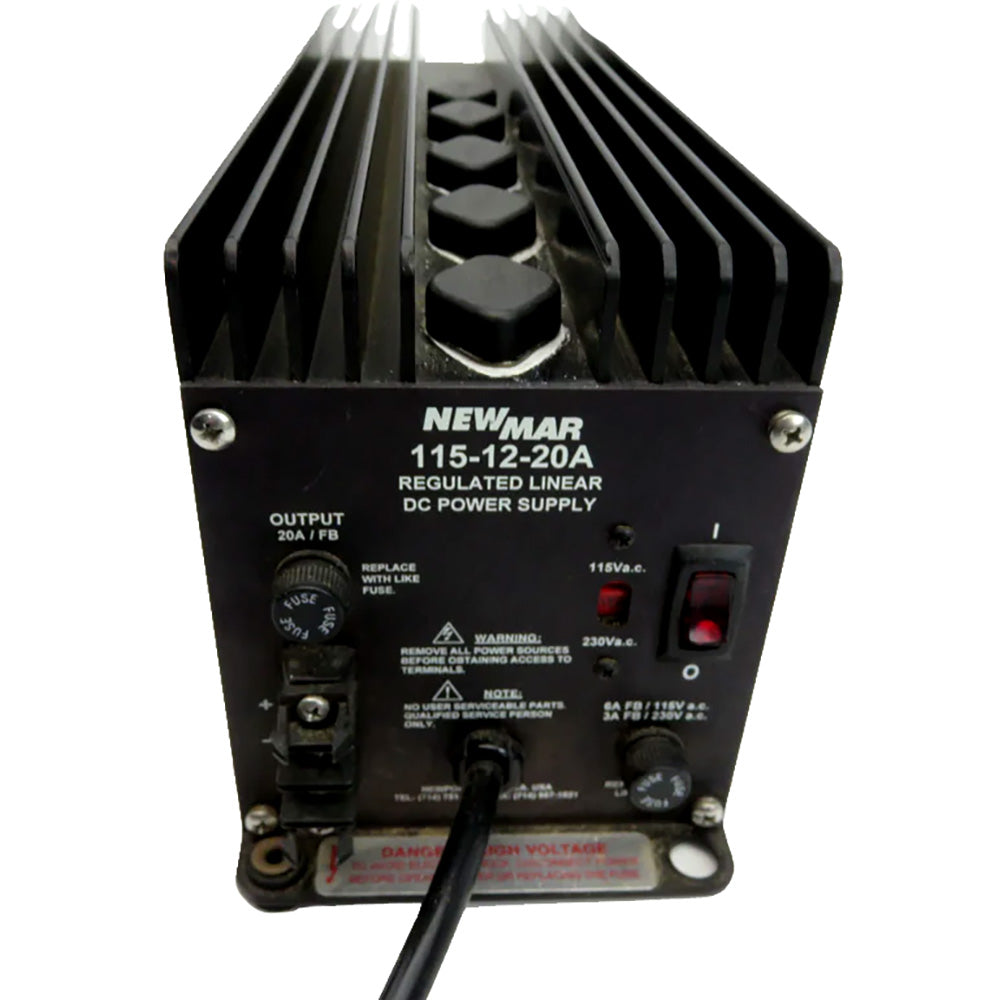

Newmar 115-12-20A Power Supply
Newmar 115-12-20A Power Supply is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
This super-rugged DC power supply is engineered specifically for marine applications, providing dependable 12-volt power to essential communication and navigation equipment on commercial vessels. With its proven linear circuit design, it delivers pure, noise-free output and ensures a long service life, making it a vital component for maintaining reliable operations at sea.
Key Features
- Exceptional Voltage Regulation: Maintains output voltage within 1% under all rated line and load conditions, ensuring stable power for critical marine electronics.
- Durable Construction: Features a polyurethane conformal-coated PCB and a corrosion-resistant heavy-duty aluminum case with integral shock mounts, guaranteeing survival in harsh marine environments.
- Efficient Thermal Management: Large heat sink fins effectively extract and dissipate heat generated by semiconductors, ensuring cool and reliable operation.
- Comprehensive Protection: Equipped with overvoltage protection, current limiting (set at 105% of intermittent rating), thermal overload protection, and input/output fusing to safeguard your equipment.
- Active Cooling: Thermally activated cooling fan on “CD” units enhances thermal management during high-demand operations.
Technical Specifications
Specification | Details |
---|---|
Nominal Input Voltage | 115/230 VAC |
Maximum Input Current @115V | 5.5 A |
Maximum Input Current @230V | 2.5 A |
Output Amperage (Intermittent) | 20 A |
Output Amperage (Continuous) | 8 A |
Weight | 20 lbs / 9.1 kg |
Case Dimensions
Dimension | Size |
---|---|
Height | 5.7” |
Width | 4.8” |
Depth | 16.3” |
Input Range
105-125/210-250 VAC (selectable), 50-60 Hz. The power supply derates to 50% output below 110 and 220 VAC.
Operating Temperature
Standard Units: Operates between 0-50°C. The output derates linearly from 100% at 40°C to 50% at 50°C, with thermal shutdown activated at a case temperature of 85°C.
Duty Cycle
- Intermittent: Maximum of 20 minutes on time with a 20% duty cycle.
- Continuous: Capable of 24 hours/day operation at 100% duty cycle.
Available Options
- Modification for use as a battery charger.
- Adjustable output voltage (see Output Voltage specifications for available range).
- Transfer relay for backup battery in the event of a power failure (ERC option).
Output Voltage
- 13.6 VDC (internally adjustable between 12.6-14.5 VDC).
- Ripple: 40mV P-P (@ 110-125 / 220-250 VAC input).
- 1% Line and Load regulation (@ 110-125 / 220-250 VAC input).
Mechanical Features
- Powder-coated aluminum heat sink case for enhanced durability and heat dissipation.
- Front panel terminal block for easy and secure connections.
- Heavy-duty mounting flange for secure installation on marine vessels.
- Conformal-coated PCB to protect against moisture and corrosion.
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
