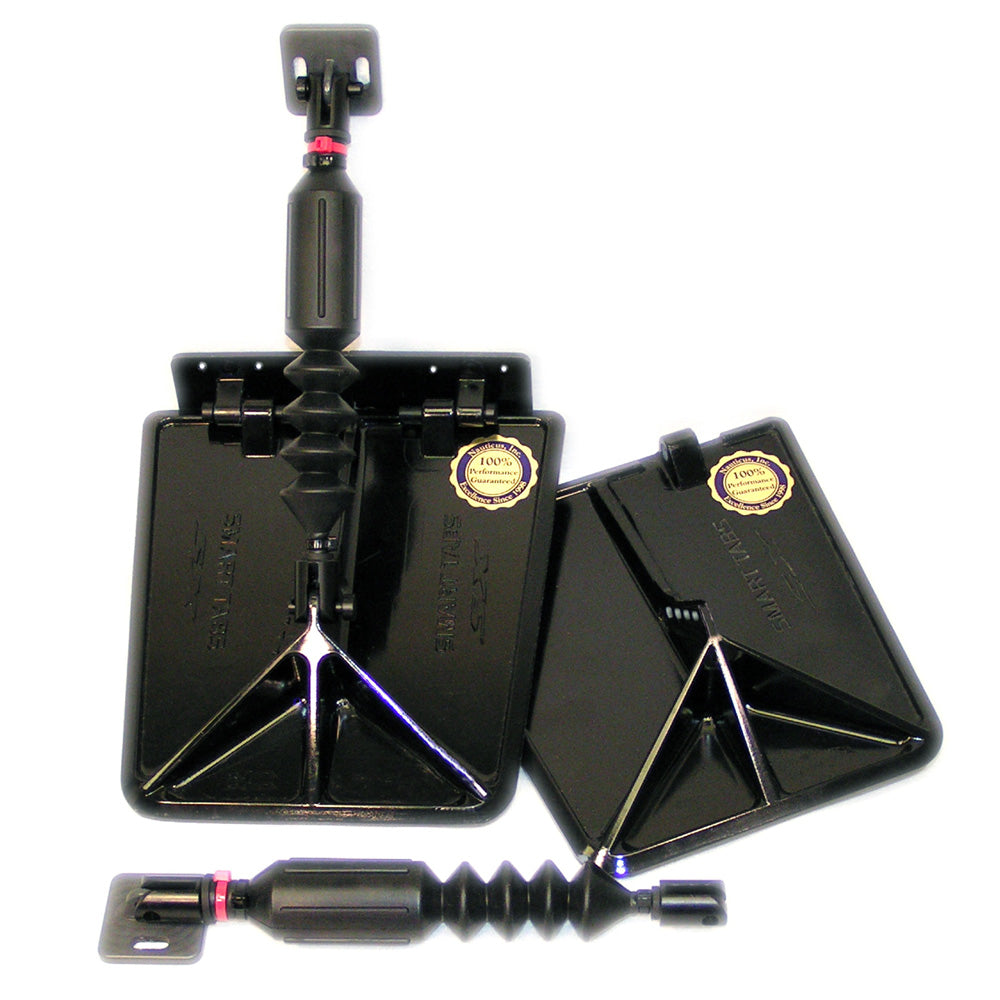

Nauticus SX9510-80 Smart Tab SX Composite Trim Tabs 9.5 x 10 - f/18-20 Boat w/150 - 240HP - Black

Upgrade your 18-20' power boat with Smart Tab SX Composite Trim Tabs, designed for engines ranging from 150 to 240HP. These black trim tabs enhance your boat's performance, ensuring smoother rides, better handling, and increased speed.

Enhance Your Boat’s Performance – Guaranteed

If the Smart Tab SX Composite Trim Tabs do not significantly improve your boat's performance, contact us within 30 days of purchase for a full guarantee.

Automatic Adjustment for Superior Performance

Why settle for manually adjusting trim tabs when you can benefit from automatic trim tabs that self-adjust for optimal performance at a fraction of the cost? The SX series incorporates all the fully automatic features of our popular Smart Tabs, ensuring enhanced performance without the hassle of manual adjustments.

Advanced Design and Durability

Constructed from molded composite materials, the Smart Tab SX trim tabs are rust and corrosion-free, making them ideal for both fresh and saltwater environments. The system requires no maintenance, providing unmatched durability and longevity. Additionally, tracking ribs have been added to improve handling at higher speeds.

Speed Regulation for Optimal Efficiency

Our innovative trim tab technology automatically adjusts in response to boat speed and load. Starting at a downward angle to maximize lift at slow speeds, the trim plates move up to a horizontal position as speed increases, eliminating drag and allowing for rapid planing.

• Reduce the minimum planning speed by up to 33%
• Faster acceleration
• Increase top speed
• Provide a level, more comfortable ride at lower speeds
• Improve fuel economy, handling, and safety

Superior Stability on the Water

Even at cruising speeds, Smart Tabs function like shock absorbers, constantly adjusting to sea conditions to provide remarkable stability during turns, when crossing waves, cruising, and running at maximum speeds. Say goodbye to sliding, porpoising, and chine walking.

Unique, Industry-Leading Technology

The Smart Tab SX system features a unique internal valve system that intelligently controls your boat's performance. The nitrogen gas actuator lifts the trim plate during acceleration, with the lift determined by the actuator's load rating and trim plate adjustment at installation. The internal valve system dampens trim plate movement, ensuring smooth, undetectable reactions to speed changes for a consistently comfortable ride.

Easy Installation Process

Installing Smart Tab SX trim tabs is straightforward and quick. With just a drill, small drill bit, Phillips screwdriver, and two wrenches, most users can install the trim tabs in under an hour. Professional installers can complete the job in 30 minutes or less. All mounting hardware, instructions, and templates are included, and no through hull drilling is required.

Product Specifications

Feature	Details
Actuator Type	Gas (Nitrogen)
Construction	Composite
Box Dimensions	5"H x 11"W x 13"L
Weight	4.4 lbs
UPC	698690951186

Learn More – Resources

Quick Guide (PDF)
