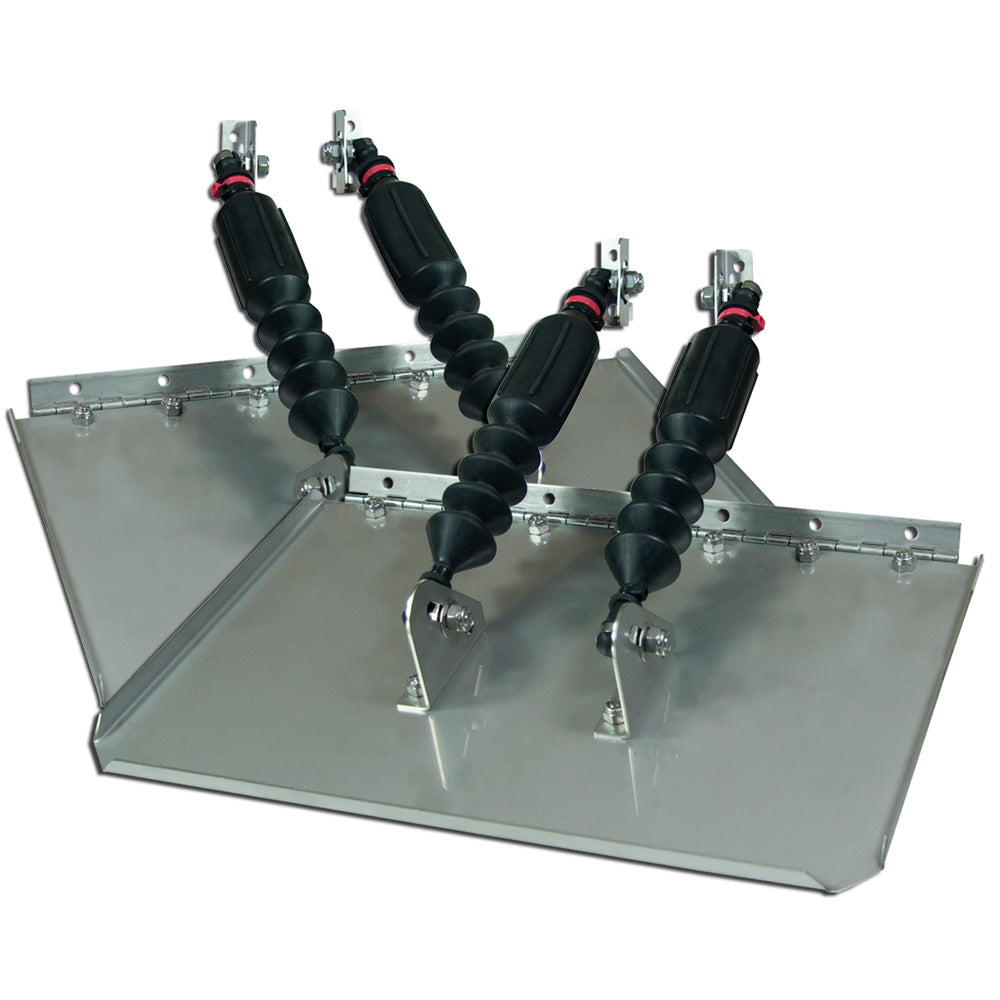

Nauticus ST1610-160 Smart Tabs II Series Trim Tabs 16 X 10 f/23-30' Boats - 8500lbs Max

The Smart Tabs II Series Trim Tabs are engineered to enhance the performance and stability of boats ranging from 23 to 30 feet, handling up to 8,500 lbs. These automatic trim tabs provide seamless adjustments to optimize your boating experience without the need for manual intervention.

Enhance Your Boat's Performance

Experience a significant boost in your boat's overall performance with Smart Tabs II Series Trim Tabs. If you're not satisfied with the performance improvement, contact us within 30 days of purchase for a guaranteed solution.

Why Choose Automatic Trim Tabs?

Unlike manually adjusting trim tabs, Smart Tabs II automatically self-adjust to provide superior performance at a lower cost. This advanced system ensures your boat remains stable and handles smoothly in various water conditions.

Designed for Versatile Boat Types

Smart Tabs II Series Trim Tabs are ideal for:

• Boats between 23' and 30' in length
• Transom widths up to 10 feet
• Boats made of Fiber Glass, Aluminum, or RIB designs
• Trailerable boats weighing up to 8,500 lbs gross weight

This heavy-duty system provides an active suspension, enhancing stability and ensuring a smooth ride even in rough seas.

Advanced Nitrogen Gas Actuators

The ST1610 Series features two nitrogen gas actuators per plate, offering increased stern lift and enhanced dampening. This design eliminates instant reactions to water pressure variances, ensuring a smooth and balanced ride.

Key Benefits

• Reduce minimum planning speed by up to 33%
• Faster acceleration and increased top speed
• Level, more comfortable ride at lower speeds
• Improved fuel economy, handling, and safety

Smart Speed Regulation

Smart Tabs II automatically adjust their angle based on boat speed. At slow speeds, trim plates are angled downward to maximize lift. As speed increases, water pressure pushes the trim plates upward to minimize drag, allowing the boat to plane efficiently.

Boat Stabilizers for Enhanced Handling

Smart Tabs II continuously adapt to sea conditions, acting like shock absorbers. They provide remarkable stability during turns, wave crossing, cruising, and high-speed runs, preventing sliding, porpoising, and chine walking.

Unique Intelligent Valve System

The internal valve system of Smart Tabs II is uniquely designed to control your boat's performance intelligently. It dampens trim plate movements, providing smooth and undetectable reactions to speed changes and water conditions.

Easy Installation

Installing Smart Tabs II is straightforward and can be completed in under an hour with basic tools:

• Electric drill
• Small drill bit
• Phillips screwdriver
• Two wrenches

Professional installers can complete the installation in 30 minutes or less. All necessary mounting hardware, instructions, and templates are included. Additionally, Smart Tabs II require no through hull drilling.

Technical Specifications

Specification	Details
Actuator Type	Hydraulic
Construction	Stainless Steel
Box Dimensions	3"H x 11"W x 17"L
Weight	9.6 lbs
UPC	698690161080

Additional Resources

Download the Owner's Manual (PDF)
