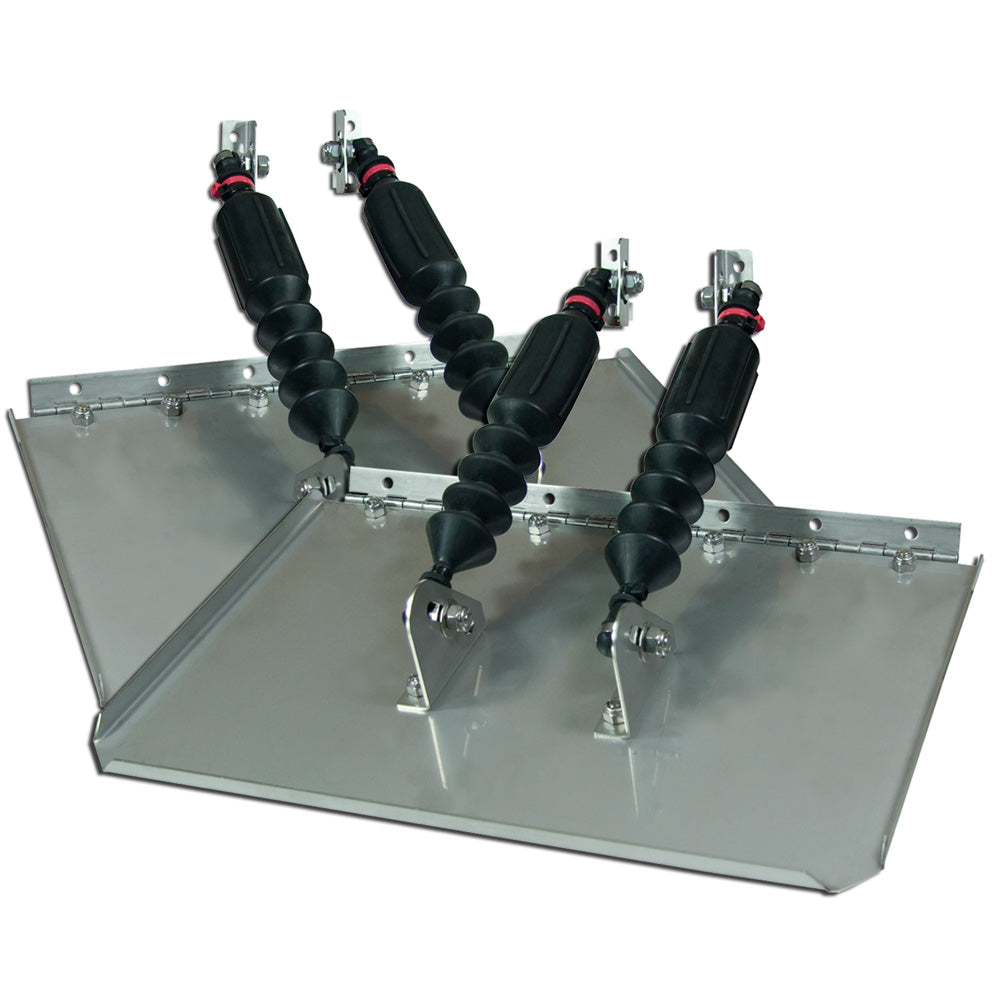

Nauticus ST1610-120 Smart Tabs II Series Trim Tabs 16 X 10 f/23-30' Boats - 6500lbs Max

The Smart Tabs II Series Trim Tabs are engineered to enhance the performance and stability of your boat, ensuring a smooth and efficient ride. Designed for boats between 23' and 30' with transom widths up to 10 feet and a maximum weight of 6,500 lbs, these trim tabs are perfect for fiberglass, aluminum, and RIB designs. Experience automatic self-adjustment without the need for electrical or hydraulic systems, allowing you to focus on enjoying your time on the water.

Enhanced Performance Guaranteed

We are confident that our Smart Tabs II Series will significantly improve your boat’s performance. If you don’t notice a remarkable difference, contact us within 30 days of purchase for a full refund.

Why Choose Automatic Trim Tabs?

Manual trim tabs require constant adjustments and can be less efficient. Our automatic trim tabs self-adjust based on your boat’s load and maneuvering, offering superior performance at a lower cost.

Key Features

• Designed for boats 23' - 30' and up to 6,500 lbs
• Suitable for low-profile fiberglass, aluminum, and RIB boats with transom widths under 10 feet
• Two nitrogen gas actuators per plate for increased stern lift and enhanced dampening
• Fully automatic operation without switches, electric, or hydraulic connections
• Constructed from durable stainless steel
• Easy installation with included hardware and instructions

Benefits

• Reduced Minimum Planning Speed: Decrease your planning speed by up to 33%, allowing for easier handling at slower speeds.
• Faster Acceleration: Experience quicker acceleration without compromising stability.
• Increased Top Speed: Achieve higher top speeds with improved fuel efficiency.
• Enhanced Ride Comfort: Maintain a level and comfortable ride even in rough seas.
• Improved Fuel Economy, Handling, and Safety: Optimize your boat’s performance while enhancing overall safety on the water.

Advanced Speed Regulation

The Smart Tabs II Series start with a downward angle to maximize lift at slow speeds. As your boat accelerates, water pressure naturally adjusts the trim plates, minimizing bow rise and enabling quick planing. Once water pressure exceeds the actuator load rating, the trim plates move to a horizontal position, eliminating drag and ensuring optimal performance.

Superior Boat Stabilization

These trim tabs act as shock absorbers, continuously adjusting to sea conditions. This results in exceptional stability during turns, while crossing waves, cruising, and running at maximum speeds. Say goodbye to sliding, porpoising, and chine walking with Smart Tabs II Series.

Unique Intelligent Design

The Smart Tabs II Series features an exclusive internal valve system that intelligently controls your boat’s performance. This system dampens trim plate movements, providing smooth and undetectable adjustments to maintain a level ride regardless of speed or water conditions.

Easy Installation

Installing the Smart Tabs II Series is straightforward and can be done in under an hour with basic tools such as an electric drill, small drill bit, Phillips screwdriver, and two wrenches. Professional installers can complete the installation in 30 minutes or less. All necessary mounting hardware, instructions, and templates are included, and no through hull drilling is required.

Specifications

Feature	Description
Actuator Type	Hydraulic
Construction	Stainless Steel
Box Dimensions	3" H x 11" W x 17" L
Weight	9.5 lbs
UPC	698690161066

Additional Resources

Owner's Manual (PDF)
