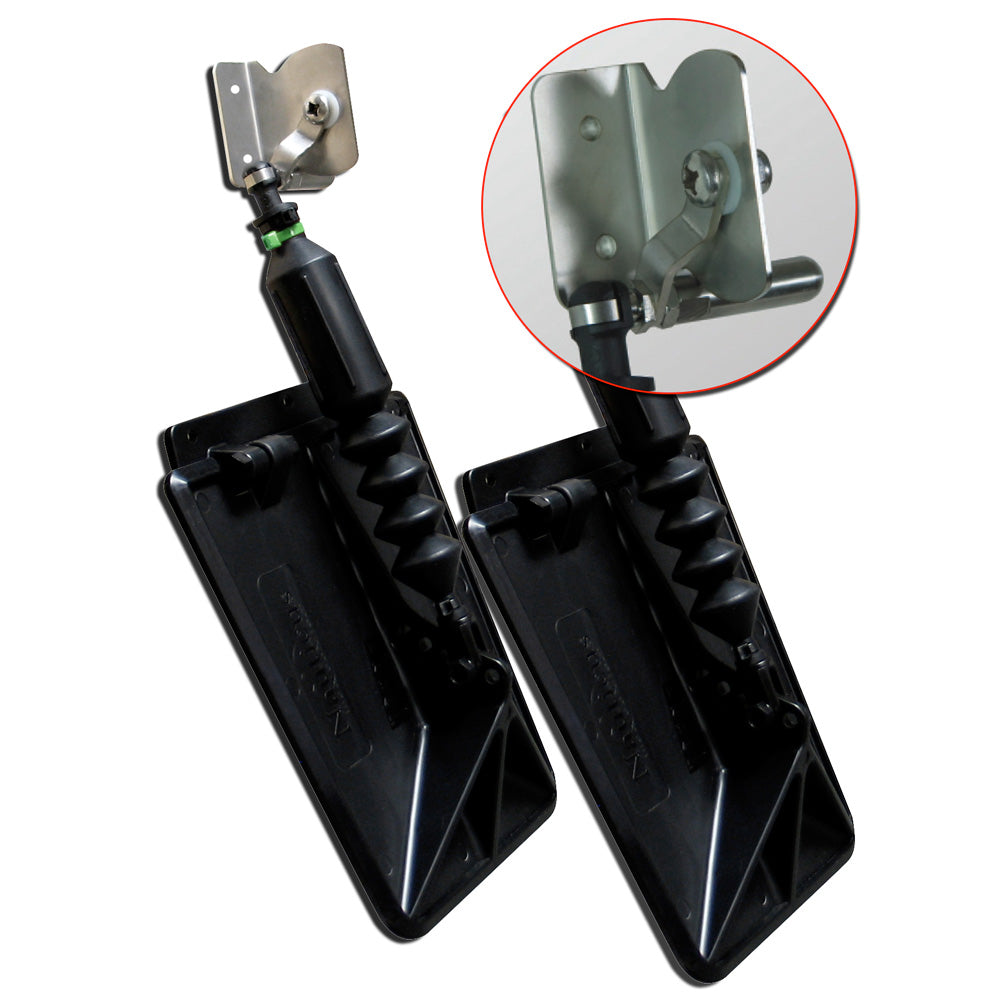

Nauticus PT9510-60 SX ProTroller Series Trim Tabs 9.5 X 10 f/17-20 Boats w/80-175 HP

The SX ProTroller Series Trim Tabs are the ultimate solution for enhancing the performance and stability of your 17-20' boat with 80-175 HP engines. Combining the functionality of trim tabs and trolling brakes into one innovative system, the ProTroller ensures a superior boating experience whether you're cruising or trolling.

Dual Functionality: Trim Tabs and Trolling Brakes

The ProTroller Series seamlessly switches between trim tabs and trolling brakes with a simple lever movement. This versatile system allows you to optimize your boat’s performance based on your current activity:

Trolling Brakes

When the lever is in the down position, the trim plates extend downward, providing equal braking on both sides of the boat. This ensures straight tracking at ultra-low speeds without restricting the propeller, maintaining precise steering control.

Trim Tabs

Moving the lever up engages the trim tab mode, automatically adjusting to enhance your boat’s ride and handling. Benefits include:

• Improved ride comfort and handling
• Faster acceleration and increased top speed
• Enhanced fuel economy
• Customizable settings tailored to your boat and preferences

These SMART TABS are fully automatic and can be fine-tuned for unmatched performance, guaranteed to elevate your boating experience.

Enhanced Performance and Efficiency

The SX ProTroller Series is designed to significantly boost your boat's overall performance:

• Reduce the minimum planning speed by up to 33%
• Achieve faster acceleration and higher top speeds
• Experience a level, more comfortable ride at lower speeds
• Improve fuel economy, handling, and safety

If you don't notice an outstanding performance increase, contact us within 30 days of purchase for a satisfaction guarantee.

Advanced Automatic Adjustment

Featuring breakthrough technology, the ProTroller trim tabs automatically adjust without any manual intervention while underway. Key components include:

• Nitrogen Gas Actuator: Provides lift at the stern during acceleration by holding the trim plate down. The lift is adjustable based on the actuator load rating and trim plate settings during installation.
• Speed Regulation: Trim tabs start at a downward angle to maximize lift at low speeds. As the boat accelerates, water pressure lifts the trim plates to a horizontal position, reducing drag and allowing efficient planing.

Superior Stability

Even while cruising, the SMART TABS act as shock absorbers, continuously adjusting to sea conditions to provide remarkable stability. Benefits include:

• Enhanced stability during turns and while crossing waves
• Prevention of sliding, porpoising, and chine walking
• Consistent performance at maximum speeds

Durable and Low Maintenance

The SX ProTroller Series is constructed from rust and corrosion-resistant molded composite materials, ensuring longevity and durability in both fresh and saltwater environments. Key features:

• No hydraulics or electric switches required
• Maintenance-free operation
• Tracking ribs for improved handling at higher speeds

Easy Installation

Installing the ProTroller trim tabs is straightforward and can be completed in minutes with minimal tools:

• Tools Required: Electric drill with a 3/16" bit, Phillips screwdriver, and two wrenches
• Installation Time: Less than an hour for DIY enthusiasts, 30 minutes or less for professional installers
• Includes all mounting hardware, instructions, and templates
• No through hull drilling necessary

Specifications

Feature	Details
Actuator Type	Hydraulic
Construction	Composite
Box Dimensions	5" H x 11" W x 13" L
Weight	4.05 lbs
UPC	698690951605

Why Choose SX ProTroller Series Trim Tabs?

Unlike manually adjusting trim tabs, the SX ProTroller Series offers automatic self-adjustment for optimal performance without additional costs. Its unique internal valve system intelligently manages your boat’s performance, providing a smooth and responsive ride in any condition.

Upgrade to the SX ProTroller Series Trim Tabs and experience the pinnacle of boating performance and stability today!
