Metro Marine High-Output Submersible Underwater Light w/Intelligent Full Spectrum LEDs - RGBW, 90 Beam

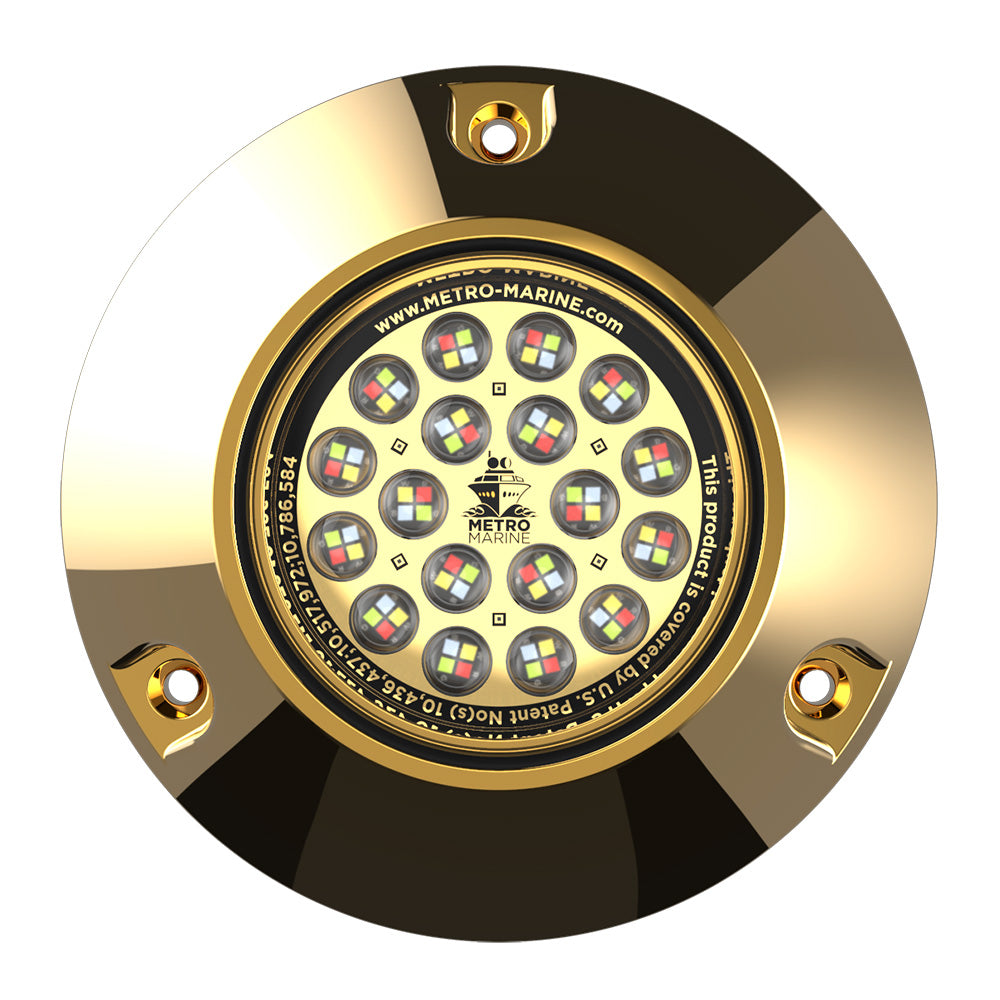

The Metro Marine F-BMR1-FS-90 from the F-Series is a high-output submersible underwater light engineered for marine and boating applications. Designed to deliver vibrant, full-spectrum RGBW illumination with a 90° beam angle, this luminaire ensures uniform and dynamic lighting for yachts, docks, sea walls, fountains, and theme park installations.

Durable Marine-Grade Construction

Constructed with watertight AB2 aluminum bronze housings and silicon bronze hardware, the F-Series luminaires are built to withstand harsh underwater environments. These robust materials ensure long-lasting performance, making them ideal for both residential and commercial marine settings.

Advanced LED Technology for Superior Lighting

Leveraging Metro Marine’s expertise in optics and LED control technology, the F-BMR1-FS-90 features a unique LED array with 72 high-output LEDs per fixture. This innovative configuration allows for close adjacent fixture placement, providing fully mixed and uniform light throughout the installation area. Additionally, each of the 18 individually optically lensed RGBW LEDs integrates a separate white LED, resulting in higher-quality whites and richer color blends compared to traditional RGB+White fixtures.

Clear Lens Technology

Biofouling, or the aggressive growth of marine organisms, can obstruct light output and cause overheating in underwater fixtures. The F-BMR1-FS-90 addresses this challenge with patented Clear Lens Technology, utilizing UVC LEDs to prevent and eliminate biofouling. This ensures that the lenses remain crystal clear indefinitely, maintaining optimal light performance without manual cleaning.

Anti-Condensation Assembly

Condensation within underwater lighting fixtures can lead to internal corrosion and eventual failure. Metro Marine has eradicated this issue through a scientific approach and patent-pending assembly methodology. Manufactured in a Class 1000 Clean Room, the F-BMR1-FS-90 is designed to completely eliminate condensation formation, ensuring the fixture remains protected from the inside out.

Technical Specifications

Feature	Details
Beam Angle	90°
Input Voltage	10VDC - 30VDC
Power Consumption	86W
Dimensions	5.47" (Diameter) x 1.12" (Depth)
Weight	3.54 lbs
Lens Material	Clear Quartz
Operating Temperature	-40°F to 122°F
Color	Full Color RGBW
Material	AB2 Aluminum Bronze
Mounting Style	Surface Mount
Box Dimensions	4"H x 9"W x 10"L
Package Weight	5.45 lbs
UPC	850050884088

Additional Resources

Download Quick Guide (PDF)
