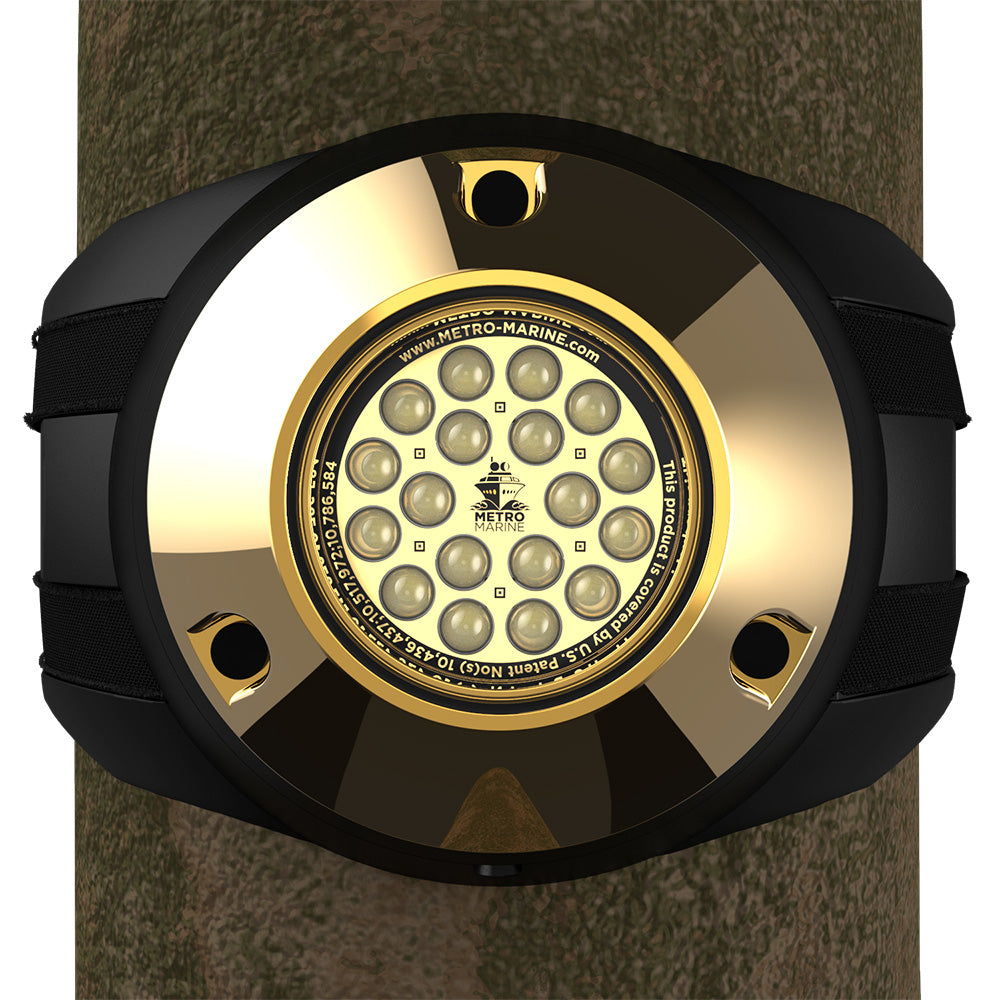

Metro Marine High-Output Piling Mount Underwater Light w/Intelligent Monochromatic LEDs - White, 45 Beam

Illuminate your marine environment with the High-Output Piling Mount Underwater Light, featuring intelligent monochromatic white LEDs and a precise 45° beam angle. Engineered for durability and performance, this lighting solution is ideal for yachts, docks, sea walls, fountains, and theme park installations, ensuring vibrant and uniform lighting even in the most demanding underwater settings.

Exceptional Durability for Marine Applications

The F-Series underwater marine lighting fixtures are built to withstand the harshest underwater conditions, capable of being mounted at depths of up to 4.6 meters (15 feet). Constructed with watertight aluminum bronze housings and silicon bronze hardware, these luminaires are resistant to corrosion and biofouling, ensuring long-lasting performance and reliability in marine environments.

Advanced LED Technology for Superior Lighting

Leveraging Metro Marine’s legacy of innovation in optics and LED control, the F-Series features a unique LED array with 18 high-output LEDs per fixture. This configuration allows for closely spaced installations while maintaining fully mixed and uniform light distribution. The F-PMR1-W3-45 model delivers a powerful white light with a 45° beam angle, making it perfect for illuminating mid to large-scale structures and yachts ranging from 10 meters (32 feet) to 30 meters (100 feet).

Innovative Clear Lens Technology

Biofouling, the aggressive growth of marine organisms on lenses, is a common issue that can block light and cause overheating. Metro Marine's patented Clear Lens Technology utilizes UVC LEDs to continuously prevent biofouling, keeping the lenses crystal clear and ensuring optimal light output indefinitely. This breakthrough technology eliminates the need for frequent maintenance, providing hassle-free operation.

Patent-Pending Anti-Condensation Assembly

Condensation inside underwater lighting fixtures can lead to internal corrosion and device failure. Metro Marine addresses this critical issue with a patent-pending assembly methodology, manufactured in a Class 1000 Clean Room. This innovative process completely eliminates the formation of condensation, safeguarding the fixture from internal damage and extending its lifespan.

Technical Specifications

Feature	Specification
Beam Angle	45°
Input Voltage	10VDC - 30VDC
Power Consumption	44W
Dimensions	10" (W) x 7" (H) x 2.87" (D)
Weight	2.71 lbs
Lens Material	Clear Quartz
Operating Temperature	-40° to 122° F

Additional Specifications

• Color: White
• Material: AB2 Aluminum Bronze
• Mounting Style: Piling
• Voltage - Input Range (Volts): 10-30V
• Watts: 44W

Quick Start Guide

For detailed installation instructions and maintenance tips, please refer to our Quick Guide (PDF).
