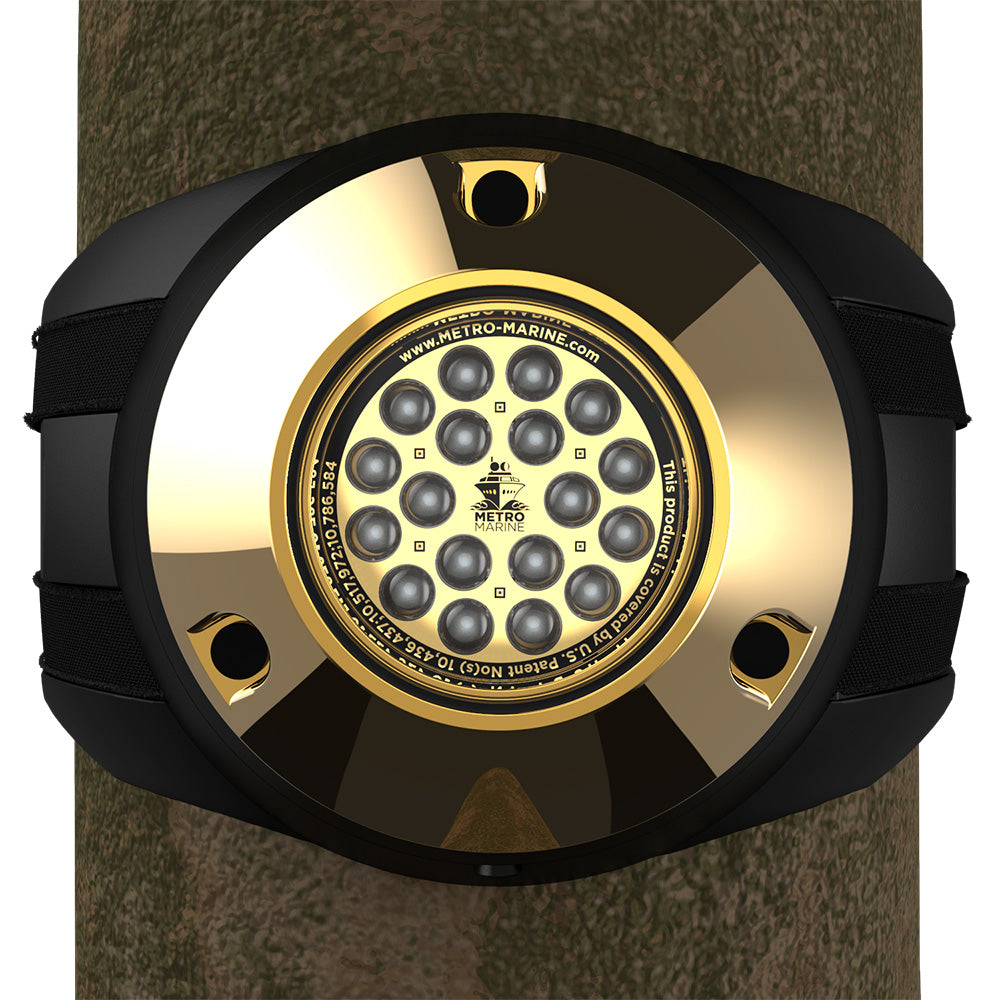

Metro Marine High-Output Piling Mount Underwater Light w/Intelligent Monochromatic LEDs - Blue, 90 Beam

Illuminate your marine environment with the F-PMR1-B3-90 High-Output Piling Mount Underwater Light. Engineered for superior performance, this underwater luminaire delivers vibrant blue light with a precise 90° beam angle, making it ideal for yachts, docks, sea walls, fountains, and theme park installations. Built to withstand depths of up to 15 feet, its durable aluminum bronze housing ensures longevity and reliability in demanding marine settings.

Advanced LED Technology

The F-Series lighting fixtures feature Metro Marine’s innovative LED array, integrating 18 high-output LEDs per unit. This configuration allows for closely spaced installations without compromising light uniformity. Whether you're illuminating a large-scale structure or a premium yacht, the F-PMR1-B3-90 provides consistent color control and high efficiency, covering areas from 32 to 100 feet with ease.

Clear Lens Technology

Biofouling, the aggressive growth that can obstruct underwater lights, is a common challenge in marine lighting. The F-PMR1-B3-90 addresses this issue with Metro Marine’s patented Clear Lens Technology. By incorporating UVC LEDs, the system continuously prevents biofouling from accumulating on the clear quartz lenses, ensuring your lights remain crystal clear and operational without maintenance.

Anti-Condensation Assembly

Condensation can lead to internal corrosion and damage underwater lighting fixtures over time. Our patent-pending assembly methodology eliminates the formation of condensation entirely. Manufactured in a Class 1000 Clean Room, the F-PMR1-B3-90 is built to resist condensation, ensuring long-term durability and performance even in challenging underwater environments.

Technical Specifications

Feature	Details
Beam Angle	90°
Input Voltage	10VDC-30VDC
Power Consumption	44W
Dimensions	10" (W) x 7" (H) x 2.87" (D)
Weight	2.71 lbs
Lens Material	Clear Quartz
Operating Temperature	-40°C to 122°C

Product Specifications

Attribute	Specification
Color	Blue
Material	AB2 Aluminum Bronze
Mounting Style	Piling
Voltage - Input Range (Volts)	10-30V
Watts	44W
