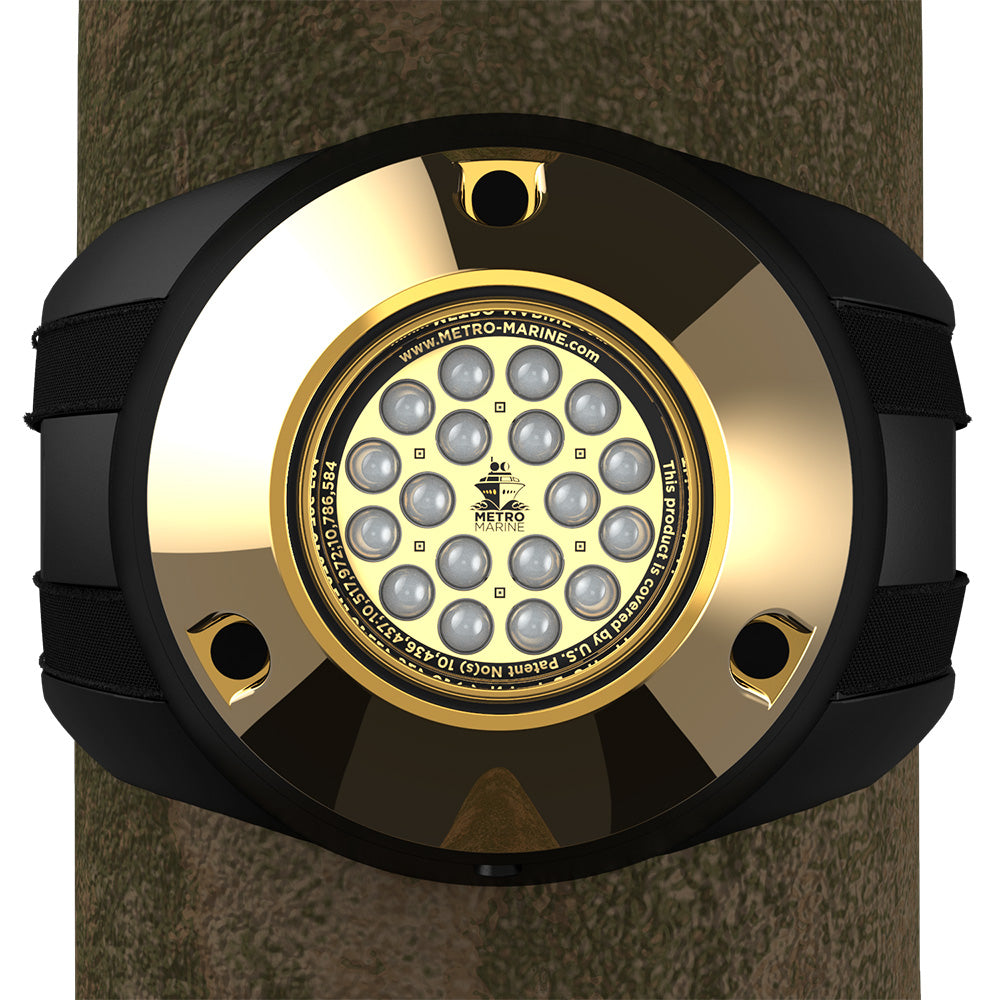

Metro Marine High-Output Piling Mount Underwater Light w/Intelligent Monochromatic LEDs - Blue, 45 Beam

The F-PMR1-B3-45 is a high-output piling mount underwater light designed for marine and boating applications. Equipped with intelligent monochromatic blue LEDs and a 45° beam angle, this luminaire delivers vibrant and uniform lighting for yachts, docks, sea walls, fountains, and theme park installations.

Exceptional Marine-Grade Construction

The F-Series underwater marine lighting fixtures are engineered to perform at depths of up to 4.6 meters (15 feet) below the water’s surface. Constructed with watertight AB2 aluminum bronze housings and silicon bronze hardware, these fixtures ensure long-lasting durability and reliability in harsh marine environments.

Advanced LED Technology for Superior Lighting

Metro Marine’s F-Series introduces a cutting-edge LED array featuring 18 high-output LEDs per fixture. This innovative design allows for closely spaced fixture placement, providing fully-mixed and uniform light distribution essential for mid to large-scale marine structures and yachts ranging from 10 meters (32 feet) to 30 meters (100 feet).

Key Features

• Beam Angle: 45° – Perfect for targeted and expansive lighting.
• Color: Blue – Enhances underwater aesthetics and visibility.
• Input Voltage: 10VDC-30VDC – Flexible power compatibility.
• Power Consumption: 44W – Efficient energy usage.
• Dimensions: 10" (W) x 7" (H) x 2.87" (D)
• Weight: 2.71 lbs – Lightweight for easy installation.
• Lens Material: Clear Quartz – Durable and high-transparency lens.
• Operating Temperature: -40°C to 122°C – Reliable in extreme conditions.

Clear Lens Technology

Biofouling, the aggressive growth that can attach to clear lenses, is a common issue with underwater marine lighting fixtures. This growth can block light and cause fixtures to overheat. Metro Marine has developed and patented a unique system that utilizes UVC LEDs to keep the lenses on our fixtures crystal clear indefinitely, ensuring consistent lighting performance without interruption.

Innovative Anti-Condensation Assembly

Condensation inside underwater lighting fixtures can lead to internal corrosion and ultimately compromise the fixture’s integrity. Metro Marine addresses this critical issue with a patent-pending assembly methodology, manufactured in a Class 1000 Clean Room environment. This approach completely eliminates the formation of condensation, guaranteeing the longevity and reliability of our fixtures.

Technical Specifications

Specification	Details
Beam Angle	45°
Input Voltage	10VDC-30VDC
Power Consumption	44W
Dimensions	10" (W) x 7" (H) x 2.87" (D)
Weight	2.71 lbs
Lens Material	Clear Quartz
Operating Temperature	-40°C to 122°C
Color	Blue
Material	AB2 Aluminum Bronze
Mounting Style	Piling
Voltage - Input Range	10-30V
Watts	44W

Downloadable Resources

Download the Quick Guide (PDF)
