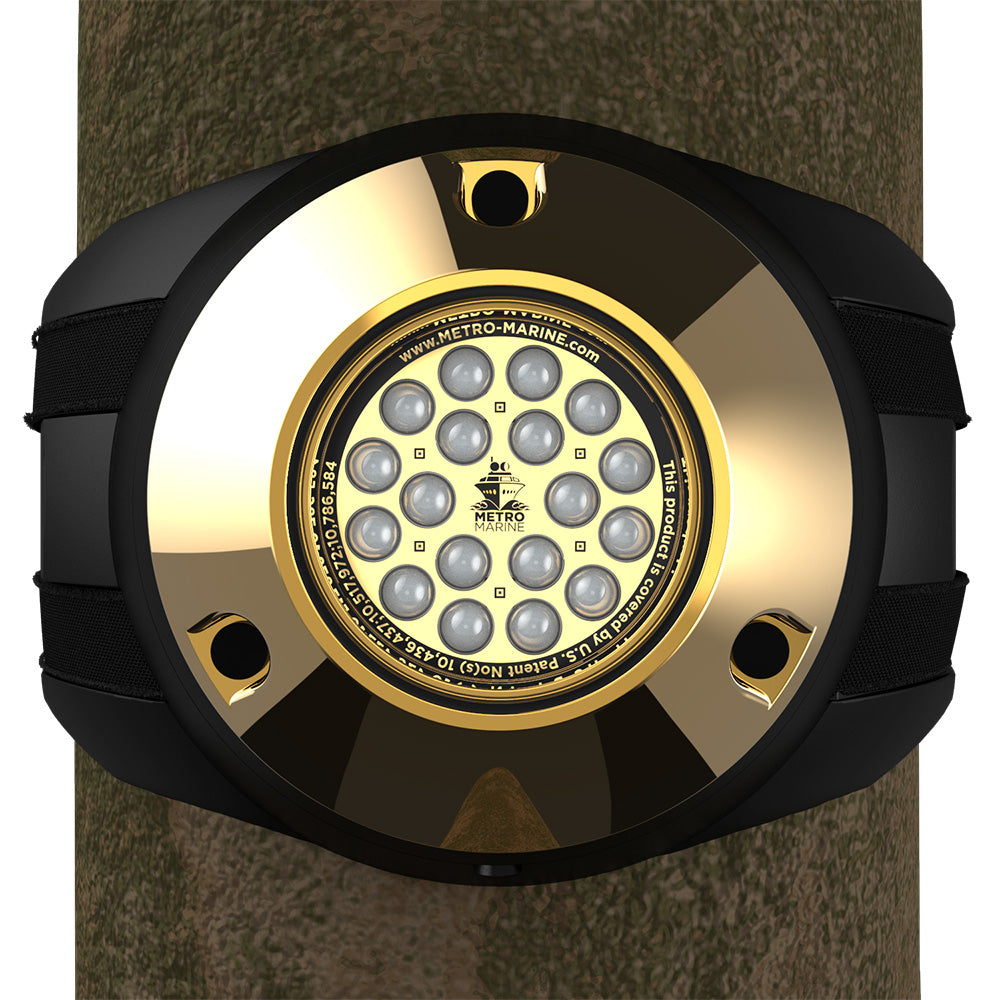

Metro Marine High-Output Piling Mount Underwater Light w/Intelligent Monochromatic LEDs - Aqua, 45 Beam

The F-PMR1-A3-45 from Metro Marine is a high-output piling mount underwater light engineered for marine environments. Equipped with intelligent monochromatic Aqua LEDs and a precise 45° beam angle, this luminaire delivers vibrant, uniform lighting for yachts, docks, sea walls, fountains, and theme park installations up to 15 feet below the water's surface.

Key Features

• High-Intensity Aqua LED Array with 18 high-output LEDs per fixture
• 45° Beam Angle for focused and uniform illumination
• Watertight AB2 Aluminum Bronze Housing with Silicon Bronze Hardware
• Designed for mounting at depths up to 4.6 meters (15 feet)
• Efficient Power Consumption of 44W with an Input Voltage Range of 10VDC-30VDC
• Compact Dimensions: 10" (W) x 7" (H) x 2.87" (D) and Lightweight at 2.71 lbs

Advanced Clear Lens Technology

Marine environments often challenge underwater lighting with biofouling, where algae and other organisms attach to lenses, diminishing light output and causing overheating. The F-PMR1-A3-45 addresses this with patented UVC LED technology that continuously cleans the clear quartz lens, ensuring crystal clear visibility and consistent performance over time.

Anti-Condensation Assembly Methodology

Condensation can lead to internal corrosion, compromising the integrity of underwater lights. Metro Marine's innovative assembly process, conducted in a Class 1000 Clean Room, employs a patent-pending methodology that effectively prevents condensation within the luminaire, ensuring long-term reliability and durability in harsh marine conditions.

Technical Specifications

Feature	Specification
Beam Angle	45°
Input Voltage	10VDC-30VDC
Power Consumption	44W
Dimensions	10" (W) x 7" (H) x 2.87" (D)
Weight	2.71 lbs
Lens Material	Clear Quartz
Operating Temperature	-40 to 122°F
Color	Aqua
Material	AB2 Aluminum Bronze
Mounting Style	Piling

Installation and Maintenance

Designed for easy mounting to various marine structures such as yachts, docks, and sea walls, the F-PMR1-A3-45 ensures a secure and stable installation. Its robust construction and advanced technologies minimize maintenance requirements, allowing you to enjoy consistent and reliable underwater lighting with minimal effort.

Additional Resources

Download the Quick Guide (PDF)
