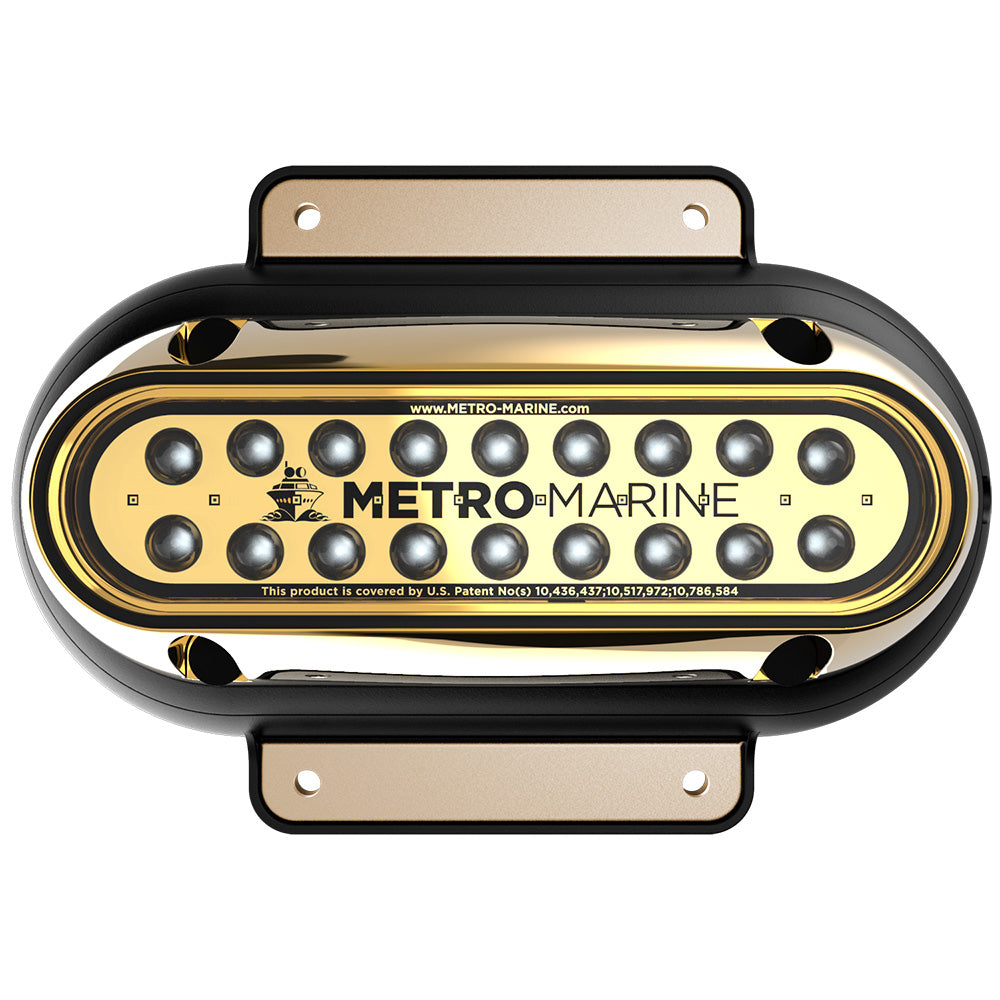

Metro Marine High-Output Elongated Surface Mount Light w/Intelligent Monochromatic LEDs - Green, 90 Beam

The F-SME1-H-G3-90 from Metro Marine is a high-performance underwater lighting solution designed specifically for marine and boating applications. Engineered to deliver vibrant green illumination with a precise 90° beam angle, this surface mount luminaire ensures your yacht, dock, or sea wall stands out with exceptional clarity and uniformity.

Exceptional Underwater Illumination

The F-Series line is built to perform at depths of up to 4.6 meters (15 feet) below the water’s surface, providing brilliant green light that enhances underwater visibility and aesthetics. Whether you’re illuminating a yacht, dock, sea wall, or even decorative fountains and theme park installations, the F-SME1-H-G3-90 offers reliable and stunning lighting performance.

Durable Construction for Marine Environments

Constructed with watertight AB2 Aluminum Bronze housings and silicon bronze hardware, the F-SME1-H-G3-90 is designed to withstand the harsh marine environment. Its robust build ensures longevity and performance, making it an ideal choice for both commercial and recreational marine applications.

Advanced LED Technology

Leveraging Metro Marine’s expertise in optics and LED control technology, this luminaire features a unique array of 18 high-output LEDs per fixture. This configuration allows for close adjacent fixture placement, resulting in fully mixed and uniform light distribution essential for large-scale structures and yachts ranging from 10 meters (32 feet) to 30 meters (100 feet).

Clear Lens Technology

One common issue with underwater lighting is biofouling, where organic growth clogs the lenses, blocking light and causing overheating. Metro Marine has patented an innovative system utilizing UVC LEDs to maintain crystal-clear lenses indefinitely, ensuring consistent light output and fixture longevity.

Anti-Condensation Assembly

Condensation can lead to internal corrosion, compromising the integrity of underwater lighting fixtures. Metro Marine addresses this by manufacturing the F-SME1-H-G3-90 in a Class 1000 Clean Room environment. Their patent-pending assembly methodology effectively eliminates condensation, safeguarding the fixture from inside-out damage.

Technical Specifications

Feature	Specification
Beam Angle	90°
Input Voltage	10VDC - 30VDC
Power Consumption	45.5W
Dimensions	8.47" (W) x 5.73" (H) x 2.34" (D)
Weight	2.42 lbs
Lens Material	Clear Quartz
Operating Temperature	-40°C to 122°C

Additional Specifications

• Color: Green
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range: 10-30V
• Watts: 45.5W

Why Choose the F-SME1-H-G3-90?

• High Efficiency: Delivers powerful illumination while maintaining low power consumption.
• Uniform Light Distribution: The 90° beam angle and LED array ensure consistent lighting across large areas.
• Durability: Built to withstand the demanding conditions of marine environments.
• Low Maintenance: Patented clear lens technology reduces the need for regular cleaning and maintenance.
• Easy Installation: Surface mount design allows for straightforward installation on various marine structures.

Applications

The F-SME1-H-G3-90 is versatile and suitable for a wide range of marine applications, including:

• Yachts and Boats
• Docks and Piers
• Sea Walls
• Fountains and Water Features
• Theme Park Water Installations

Guaranteed Performance

Metro Marine stands behind the quality and performance of the F-SME1-H-G3-90. With advanced engineering and rigorous manufacturing standards, you can trust this luminaire to deliver exceptional underwater lighting for years to come.
