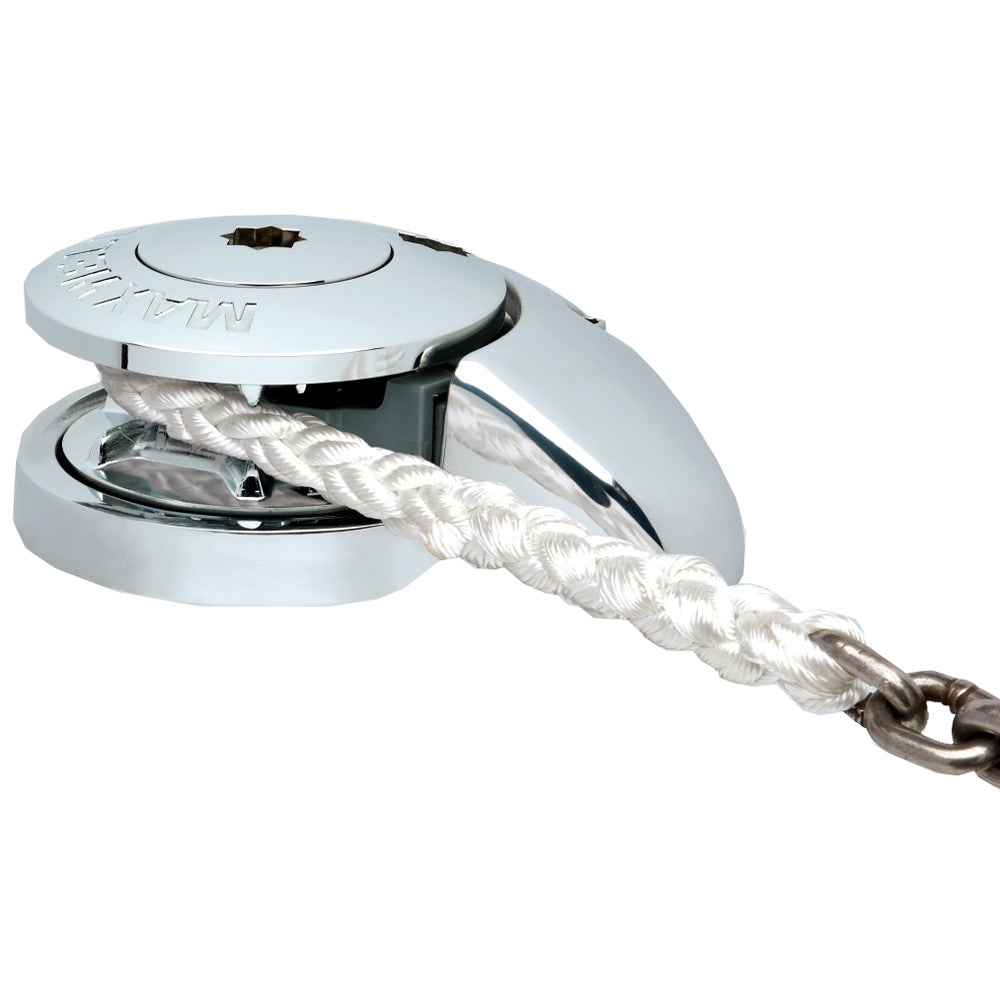

Maxwell RC8-8 12V Windlass - for up to 5/16" Chain, 9/16" Rope

The RC8 Series Windlass is a top-of-the-line marine anchoring system, engineered for exceptional durability and performance. Crafted from marine-grade 316 stainless steel, it ensures long-term reliability even in the harshest marine environments. Whether you're a seasoned mariner or a boating enthusiast, the RC8 Series offers the perfect blend of strength, versatility, and ease of installation to meet all your anchoring needs.

Key Features

• Maximum Pull Capacity: Capable of handling up to 1320lbs, ensuring your vessel stays securely anchored.
• Versatile Compatibility: The RC8-8 model accommodates 8mm (5/16") chain spliced to 14mm (9/16") three-strand or 8-plait rope, providing flexibility for various anchoring setups.
• Innovative Gypsy Design: The uniquely engineered rope/chain gypsy can manage a wide range of chain pitch differences within the specified diameters, making it ideal for use with the entire RC8 Series.
• Customizable Drum Options: Choose from sleek, low-profile or MAX-grip capstan drum versions to match your personal preference and boat aesthetics.
• Easy Installation: Features a simple two-piece installation process that saves both time and money, allowing for seamless retrofitting without the need to disassemble the windlass.
• Flexible Mounting: The unique spacer tube design fits virtually any deck thickness, while multiple mounting positions and a self-aligning gearbox ensure optimal placement of the gearbox and motor in any installation scenario.
• Maintenance-Friendly: Full disassembly capability of top works using the provided handle, screwdriver, and Allen key makes maintenance straightforward.
• Durable Construction: Manufactured from marine-grade 316 stainless steel, the heavy-duty pressure arm efficiently grasps the rope/chain splice, delivering unparalleled performance.
• Consistent Control: Equipped with a heavy-duty, large wire diameter stainless steel pre-loaded spring, the pressure arm maintains maximum control pressure at all times.
• Elegant Design: Works seamlessly with all-chain rodes, offering a low-profile and stylish windlass option for your foredeck.
• Enhanced Rode Management: A large through-deck hawse pipe throat ensures easy entry and exit of the rope/chain rode into and out of the anchor locker.
• Cone Type Clutch/Brake: Allows for manual, free-fall anchoring, providing additional control over your anchoring process.
• Emergency Features: Includes a manual override with an emergency crank handle for added safety and reliability.
• High-Efficiency Drive: The sealed oil bath and marine-grade hard anodized alloy gearbox deliver a high-efficiency output drive through a precision worm and worm wheel mechanism.
• Comprehensive Kit: Each kit includes the windlass, an on/off breaker panel, a reversing solenoid, an up/down panel switch, and a handle, ensuring you have everything needed for installation.

Specifications

Feature	Details
Chain Diameter	5/16" (8mm)
Rope Diameter	9/16" (14mm)
Maximum Pull	1320 lbs
Freefall	Yes
Installation Orientation	Vertical
Box Dimensions	11"H x 18"W x 20"L
Weight	44 lbs
UPC	1000000004908

What's Included

• RC8 Series Windlass
• On/Off Breaker Panel
• Reversing Solenoid
• Up/Down Panel Switch
• Handle

Note: Anchor rode is sold separately.
