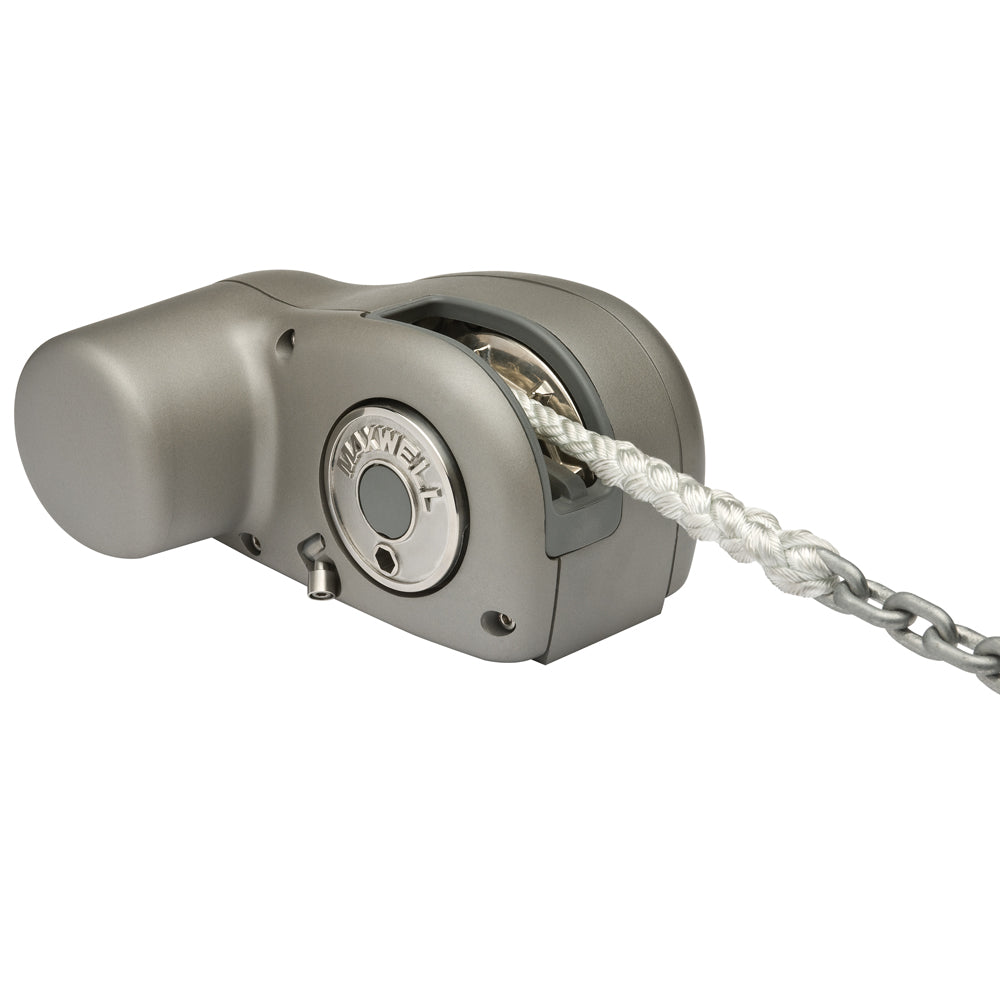

Maxwell HRC8 12V Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope

The Maxwell HRC8 is a state-of-the-art horizontal automatic rope and chain windlass designed for marine and boating enthusiasts seeking reliability and efficiency. Combining innovative technology with durable construction, the HRC8 ensures smooth anchor handling and effortless on-deck installation, making it an essential addition to any vessel.

Key Features

• Easy "bolt down" installation for quick and hassle-free on-deck setup
• Seamless transition from rope to chain with Maxwell's patented pressure arm system within a safe, enclosed design
• Integrated composite nylon through-deck hawse pipe for straightforward installation and snag-free operation
• High-efficiency spur gearbox featuring a robust non-backwind mechanism
• Rapid, jam-free retrieval of rope and chain controlled via a remote Up/Down switch panel
• Emergency "free fall" function activated during onboard power failures
• Revolutionary chainwheel design for enhanced performance
• Heavy-duty, dual-direction motor with integrated wiring for quick electrical installation and easy removal for routine electric brush maintenance
• Maxwell's automatic free-fall technology allows effortless anchor release and retrieval through simple control operations
• Elegant above-deck design encapsulates the motor and drive in a watertight case, conserving below-deck space and simplifying maintenance
• Durable die-cast, marine-grade alloy case with hard anodized finish for superior marine protection
• Comprehensive kits include windlass, on/off breaker panel, reversing solenoid, up/down panel switch, and a clutch release handle

Specifications

Model	HRC8
Maximum Pull	900 lbs
Chain Short Link	5/16"
Rope Size (Nylon)	9/16"
Line Speed (Anchor Retrieval)	108 ft/min
Power Supply (DC)	12V
Motor Power	600W
Net Weight	25 lbs
Chain Diameter	5/16"
Freefall	Yes
Orientation	Horizontal
Box Dimensions	10"H x 14"W x 15"L
Weight	29 lbs
UPC	9414761104029

Additional Information
