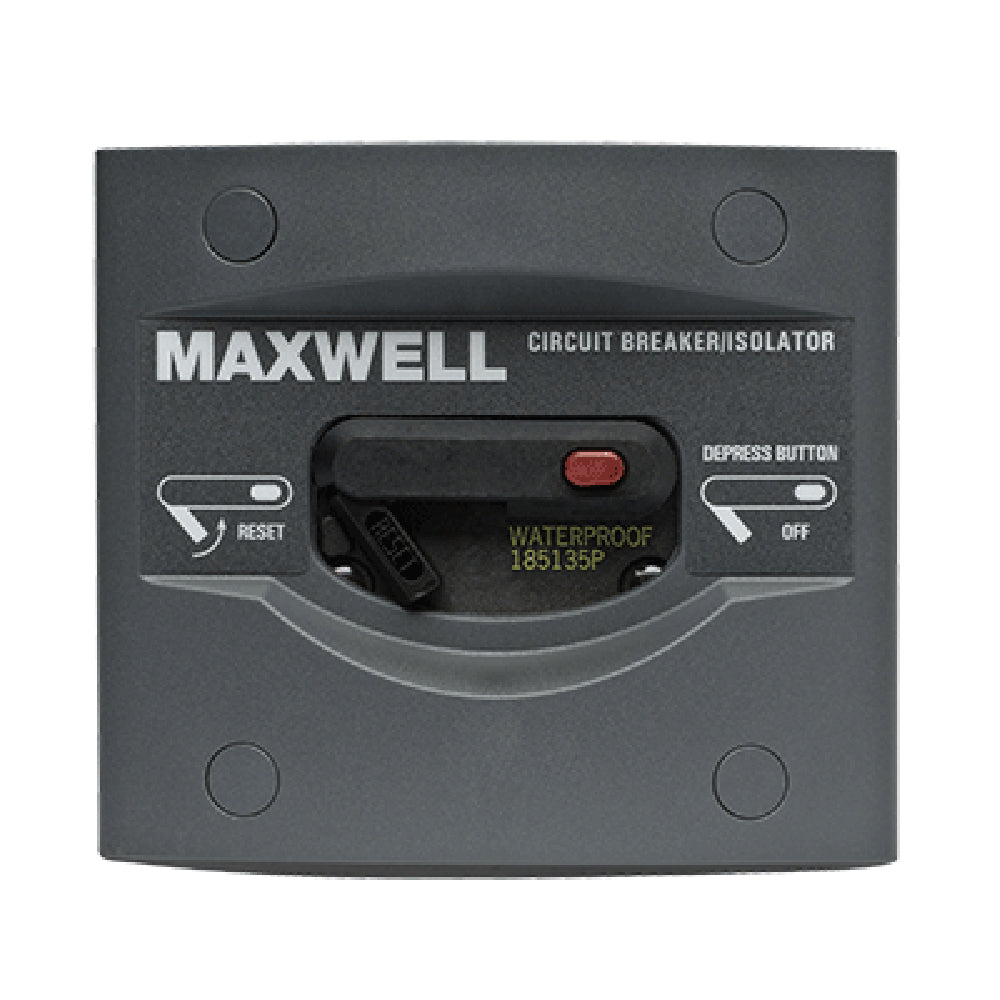

Maxwell 135Amp 12/24V Windlass Isolator

The Maxwell 135Amp 12/24V Windlass Isolator is a vital component for ensuring the safety and efficiency of your marine windlass systems. Engineered to protect your boat’s electrical circuits, this isolator is compatible with a wide range of windlasses, making it an essential addition to any boating setup.

Product Overview

The Maxwell circuit breaker and isolator panel is rated at 135 Amps and operates on both 12V and 24V systems. It is specifically designed to work seamlessly with all 800 to 3500 Series 12V windlasses and 4000 Series 24V windlasses, providing versatile protection for various marine applications.

Key Features

• Comprehensive Circuit Protection: Safeguards the main conductor circuit for DC winches and the control circuit for hydraulic winches, preventing potential electrical damage.
• Strategic Mounting: Designed to be installed as close as possible to the battery power source, ensuring immediate protection against short circuits and minimizing the risk of DC motor burn-out during winch overloads.
• Power Isolation Capability: Allows you to easily isolate the battery or electrical supply when the winch is not in use, enhancing safety and conserving battery life.
• Dual Voltage Compatibility: Suitable for both 12V and 24V DC systems, offering flexibility for various boating electrical configurations.

Technical Specifications

Parameter	Specification
Current Rating	135 Amps
Voltage Options	12V / 24V
Compatibility	800 to 3500 Series 12V Windlasses, 4000 Series 24V Windlasses
Mounting Location	Near Battery Power Source

Benefits for Marine Applications

Integrating the Maxwell 135Amp Windlass Isolator into your boat’s electrical system offers several advantages:

1. Enhanced Safety: Protects against electrical shorts and overloads, reducing the risk of fire hazards onboard.
2. Prolonged Equipment Lifespan: Prevents damage to windlasses and electrical components, ensuring long-term durability and reliability.
3. Energy Efficiency: Isolates the power supply when not in use, conserving battery power for extended voyages.
4. Easy Installation: Designed for straightforward mounting and integration into existing marine electrical systems.

Installation Guide

Follow these steps to install the Maxwell 135Amp Windlass Isolator for optimal performance:

1. Mounting: Install the isolator panel as close to the boat’s battery as possible to ensure maximum protection and reduce wiring length.
2. Connection: Connect the main power cable from the battery to the isolator’s input terminal.
3. Windlass Integration: Attach the output terminal to your windlass system, ensuring all connections are secure and properly insulated.
4. Verification: Test the installation by operating the windlass and confirming that the isolator effectively cuts off power when necessary.

Why Choose Maxwell?

Maxwell is a trusted name in the marine industry, renowned for producing high-quality electrical components that meet the rigorous demands of boating enthusiasts. The 135Amp Windlass Isolator exemplifies our dedication to safety, reliability, and performance, making it the ideal choice for sailors and boaters seeking dependable electrical protection for their windlass systems.
