Mastervolt  |  SKU: LOS-57546  |  Barcode: 816882020643

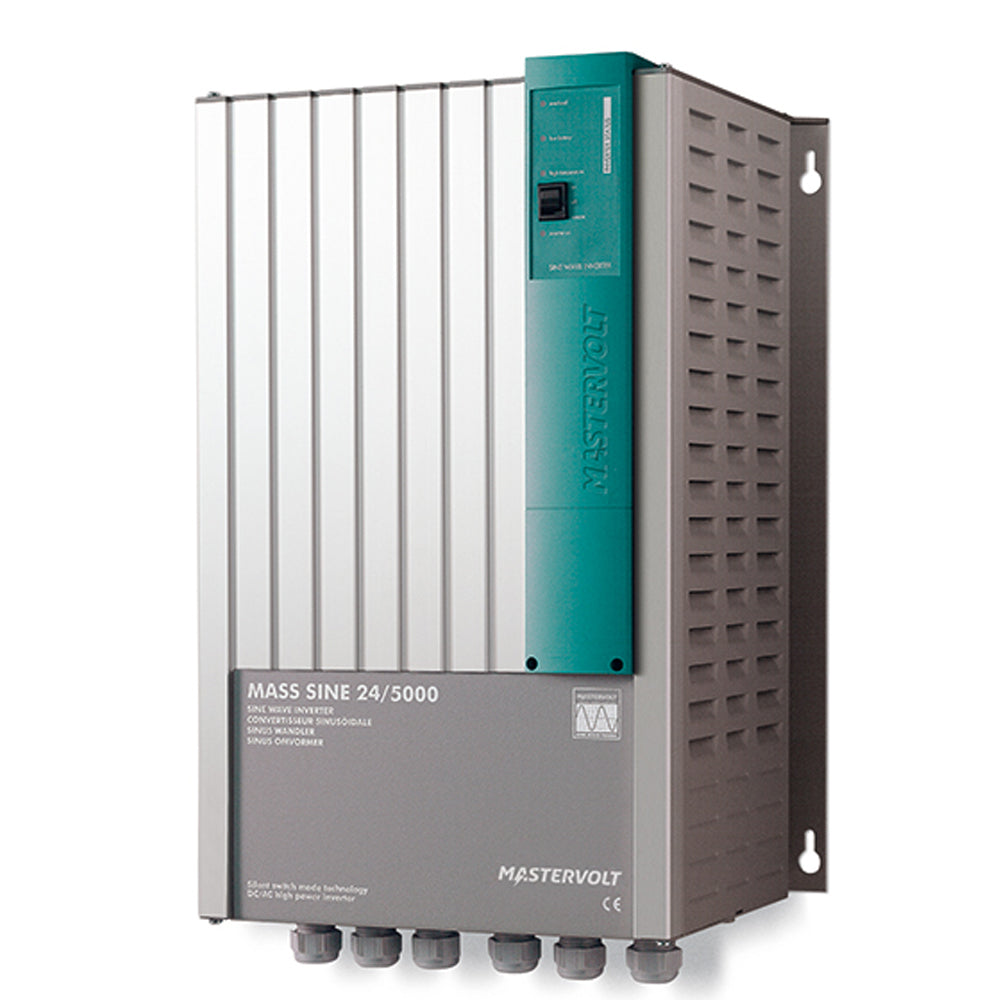

Mastervolt Mass Sine Wave Inverter 24/5000 (230V/50Hz)

$5,436.99 USD $9,741.20

Product Description

The Mass Sine Wave Inverter 24/5000 (230V/50Hz) is the ultimate power solution for marine and boating applications. Engineered to withstand harsh marine environments, this inverter ensures a reliable and continuous power supply for all your onboard electrical needs, from navigating systems to sensitive communication equipment.

Built for the Demands of Maritime Use

The Mass Sine series inverters are specifically designed to handle the rigorous conditions encountered at sea. Whether you are a professional mariner, a recreational boater, or managing a semi-professional vessel, these inverters deliver uninterrupted power even in the most challenging situations. With an impressive Mean Time Between Failures (MTBF) of 280,000 hours at full capacity and continuous 24/7 operation, the Mass Sine Wave Inverter is your dependable partner on every voyage.

Advanced Technology for Optimal Performance

Mastervolt has enhanced the Mass Sine inverters with the latest technological advancements while maintaining their classic dimensions and connections. This evolution ensures seamless integration and easy replacement with minimal downtime, allowing for efficient maintenance and upgrades on your vessel.

Mastervolt Green by Heart: Sustainable Power Solutions

Committed to eco-friendly and long-lasting solutions, Mastervolt's Green by Heart program incorporates the following benefits into the Mass Sine inverters:

  • Exceptional input current efficiency (cos φ > 0.98)
  • High-quality, durable components for extended lifespan
  • Reduced weight and space requirements
  • Minimized use of installation materials

Key Features and Benefits

  • Power Capacity: Ranges from 800 W to 5 kW, accommodating a wide variety of onboard systems.
  • High Starting Loads: Capable of handling up to 200% of rated power for brief periods, ideal for motors and other high-demand equipment.
  • Pure Sine Wave Output: Delivers stable 230V/50Hz power without faults or noise, ensuring the reliable operation of sensitive marine electronics.
  • MasterBus Compatibility: Easily integrates with AC Power Analyser or MasterBus Inverter Interface for centralized monitoring and control.
  • Reliability: Proven performance over two decades makes Mastervolt inverters the trusted choice for marine applications.

Seamless Integration with MasterBus Systems

The Mass Sine Inverter seamlessly connects within a MasterBus network using the MasterBus Inverter Interface or AC Power Analyser. A single cable connection simplifies installation, while the MasterView panel offers centralized monitoring, configuration, and operation of your entire power system, enhancing both efficiency and ease of use on board.

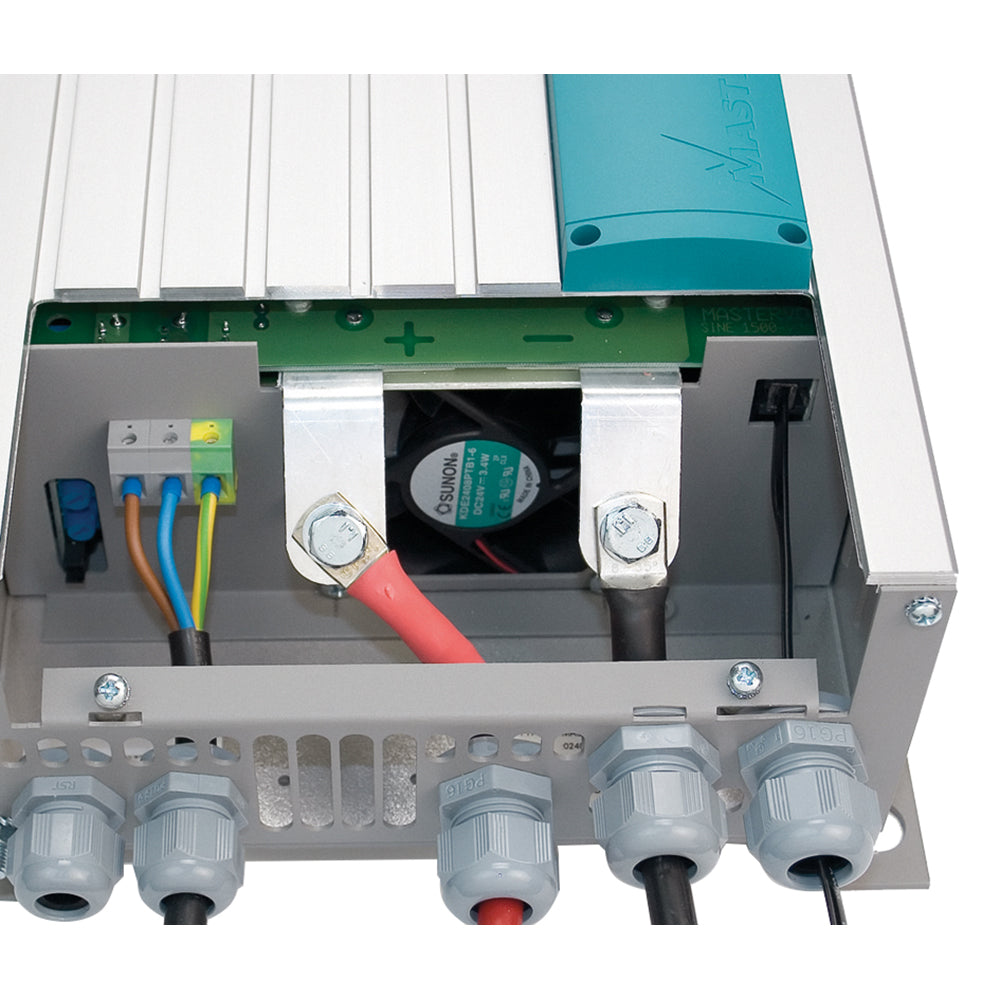

Easy and Safe Installation

Designed with marine installation in mind, Mass products feature certified industrial connection technology. Larger inverter models come with internal connections for secure wiring, while smaller models utilize a cable and plug & play socket for quick and hassle-free setup.

Automatic Power Source Switching

The Mass Sine Inverter is equipped to automatically switch between mains and generator power sources or combine them using the Masterswitch or Systemswitch system. This feature ensures continuous power availability, crucial for the safety and functionality of your vessel’s electrical systems.

Technical Specifications

Specification Details
AC Connection Type Hardwire
DC Connection Type Hardwire
GFCI No
Outlet Quantity None
Inverter Surge Rating 9000 W
Inverter Input Voltage 24 V
Inverter Output Voltage 230 V
Waveform True Sine Wave
Continuous Output Wattage 4000 W
Box Dimensions 14"H x 17"W x 23"L
Weight 49.2 lbs
UPC 816882020643

Safety Information

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation and operation instructions, please refer to the Owner's Manual (PDF).
