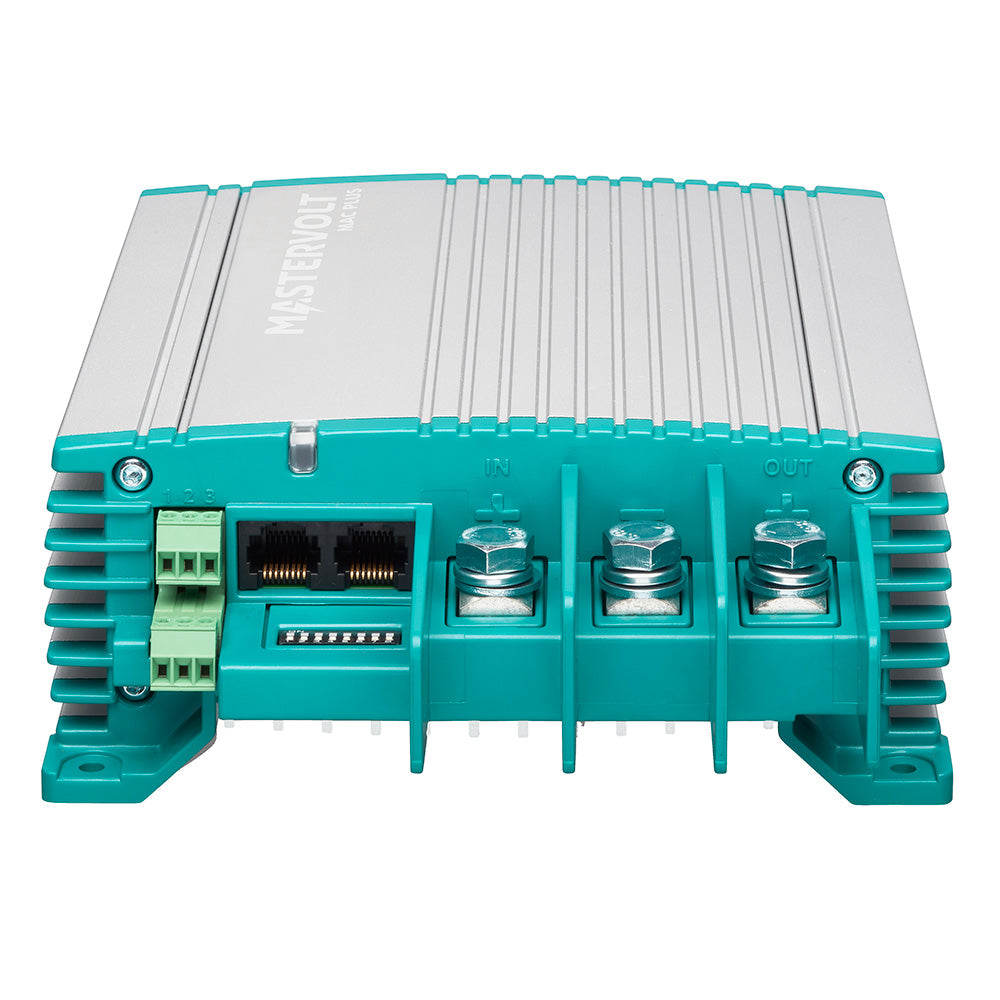

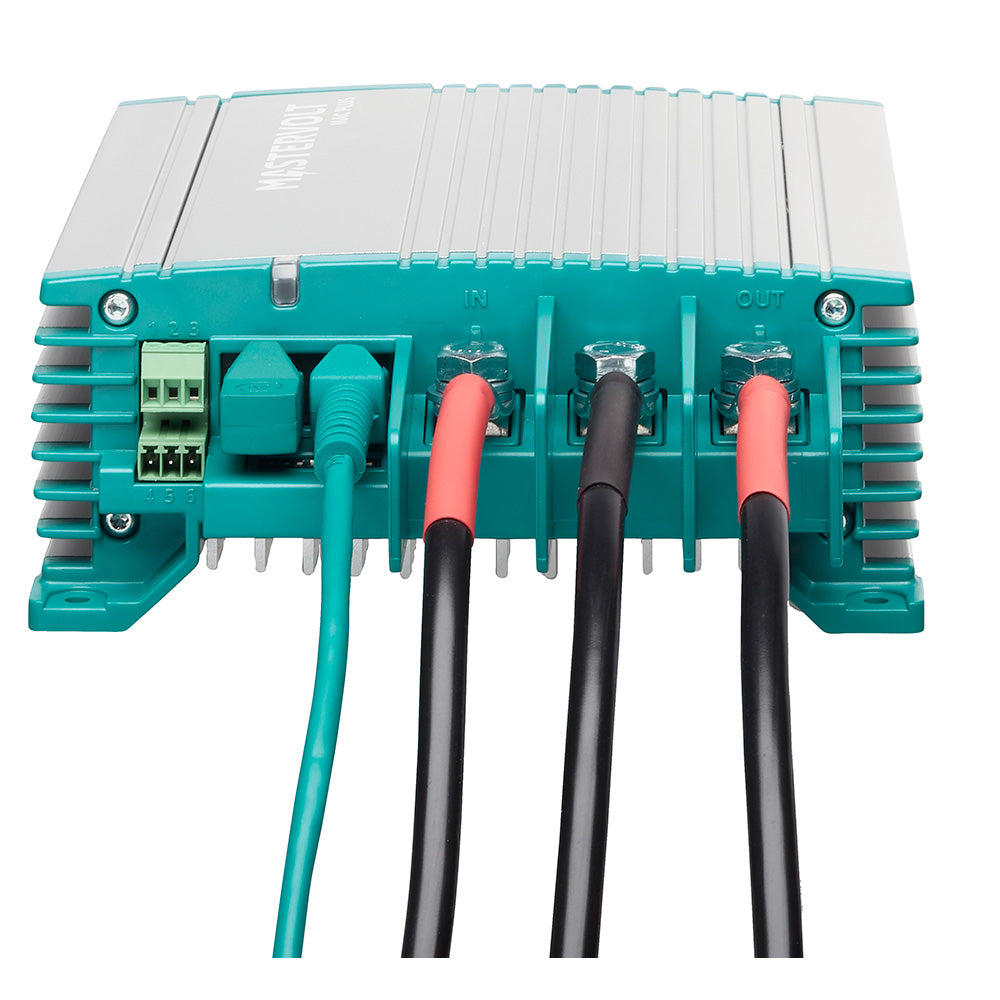

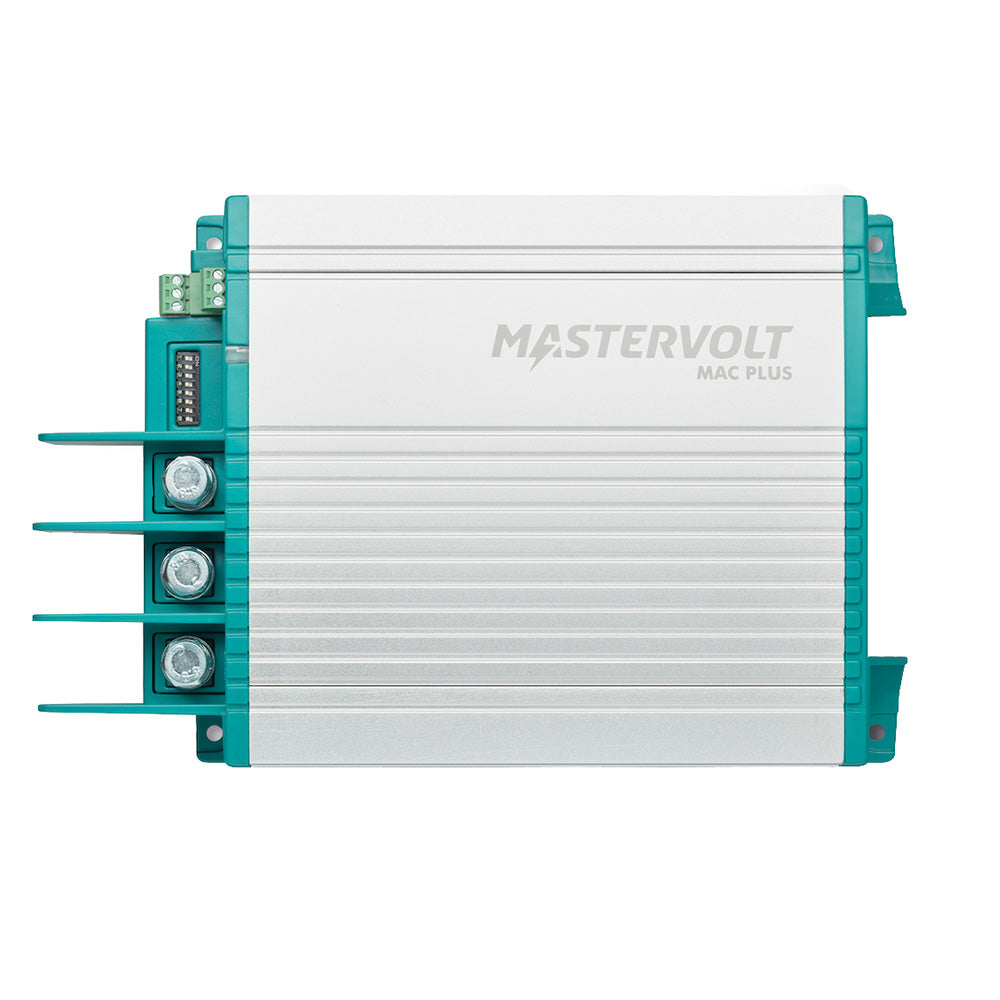

Mastervolt Mac Plus 12/24-30 + CZone
Mastervolt Mac Plus 12/24-30 + CZone is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Mac Plus 12/24-30 + CZone is a high-performance DC-DC charger designed specifically for marine and boating applications. It ensures your service battery receives a fast, safe, and reliable charge, even in vessels equipped with smart alternators and start/stop systems. With advanced features and robust construction, the Mac Plus is the ideal solution for maintaining your boat's electrical system.
Reliable Battery Charging for Your Marine Needs
Service batteries on boats often suffer from inadequate charging due to smart alternators and start/stop systems, which can lead to slow and insufficient charges. The Mac Plus DC-DC charger addresses this issue by delivering a consistent and rapid charge to your service battery. It intelligently detects when the engine is running, ensuring that the starter battery is never drained, providing peace of mind for boaters.
Exceptional Quality with Mastervolt Technology
Experience the superior quality of Mastervolt with the Mac Plus charger. Utilizing the proven 3-step+ charge algorithm, it efficiently charges even completely flat batteries. The charger features a durable aluminum housing that protects against dust and water ingress, making it perfect for the harsh marine environment. Additionally, the fanless design ensures silent operation, maintaining the tranquility of your boat.
Key Features:
- Fast and safe charging, even during short trips
- Fanless design for silent operation
- Compatible with flooded, Gel, AGM, and Li-Ion batteries, including LiFePO4
- Efficiently charges fully depleted batteries
- Engine run detection to protect the starter battery
- Adjustable current limits for Euro 5/6 compliance
- Voltage stabilization to protect sensitive equipment and lights
- Parallel operation capability to achieve over 100 Amps
- Compatible with MasterBus, CZone, and NMEA 2000 for intelligent system monitoring and automation
- Temperature compensation and voltage sensing for optimal charging
- E-Mark/R10 certified for mobile applications
- Power supply mode for stable power to sensitive loads
- Heavy-duty connections for easy installation and quick setup via DIP switches
Flexible Power Management
The Mac Plus offers total power flexibility with its wide DC input range, allowing it to operate with all DC sources. It can charge two batteries from a single alternator or charger and supports a full range of battery chemistries, including lithium. The charger seamlessly integrates with modern alternators like Euro 5 and 6, maintaining constant power even when the alternator is inactive. For larger power demands, up to ten units can be configured in parallel to provide over 100 amperes, ensuring your vessel's electrical system runs smoothly.
Advanced Monitoring and Control
Enhance your boat’s electrical system with the Mac Plus’s superior monitoring and control capabilities. It is fully compatible with CZone®, NMEA 2000®, and MasterBus, making integration into existing marine systems effortless. Utilize various controllers and high-quality MOSFETs to achieve optimal performance. Configuration is simple with MasterAdjust, the CZone configuration tool, or the on-board DIP switches, allowing you to tailor the charger to your specific needs.
Comprehensive Specifications
General Specifications:
| Feature | Specification |
|---|---|
| Battery Temperature Sensor | Yes, included |
| Battery Voltage Sense | Yes |
| Status Indicator | Yes, 3-color LED |
| Communication Protocol | MasterBus, CZone & NMEA 2000 |
| Output Voltage | 20-30 V |
| Nominal Output Voltage | 24 V |
| Output Voltage Stabilization | ±2% under various conditions |
| Output Voltage Ripple | Max. 1% peak-to-peak |
| Max. Output Power | 725 W |
| Nominal Output Power | 675 W |
| Max. Output Current | 30 A |
| Output Charge Current (3-step mode) | 30 A |
| Nominal Input Voltage | 12 V |
| Input Voltage Range | 10-16 V |
| Max. Input Current | 50 A |
| Galvanic Isolation | No |
| Voltage Limited | Yes |
| Efficiency | > 95% (at nominal input voltage, full load); peak 97% |
| Parallel Configuration | Yes |
| Alarm Contact | Yes, through MasterBus |
| MasterBus Powering | No |
| Engine Run Signal Input | Yes (active high/active low) |
| DIP Switches | Yes, for basic setup |
| Dimensions (H x W x D) | 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 in) |
| Weight | 2 kg (4.4 lb) |
| Compliance | CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected |
Technical Specifications:
| Feature | Specification |
|---|---|
| No-load Consumption | < 2 mA |
| Charge Characteristic | 3-step+ |
| Battery Types | Flooded, Gel, AGM, Spiral, Lithium Ion, Traction, User-defined |
| 3-Step Charge Option | Yes (via DIP switch settings) |
| DC Consumption | < 5 mA |
| Connections | 3 x M8 terminals for cables (10-50 mm²); 8-pole screw connection for remote on/off, temperature sensor, voltage measurement (0.75-1.5 mm²) |
| Temperature Range (Ambient) | -25°C to 60°C; derating > 40°C |
| Cooling | Natural cooling |
| Protections | Overload, Over Temperature, DC Short Circuit, Reversed Polarity (fuse) |
| MasterBus Compatible | Yes |
Additional Specifications:
| Feature | Specification |
|---|---|
| Charger Input Voltage | 12 V |
| Charger Output Amps | 30 A |
| Charger Output Voltage | 20-30 V |
| Box Dimensions | 4" H x 9" W x 15" L |
| Weight | 5.55 lbs |
| UPC | 816882023507 |
