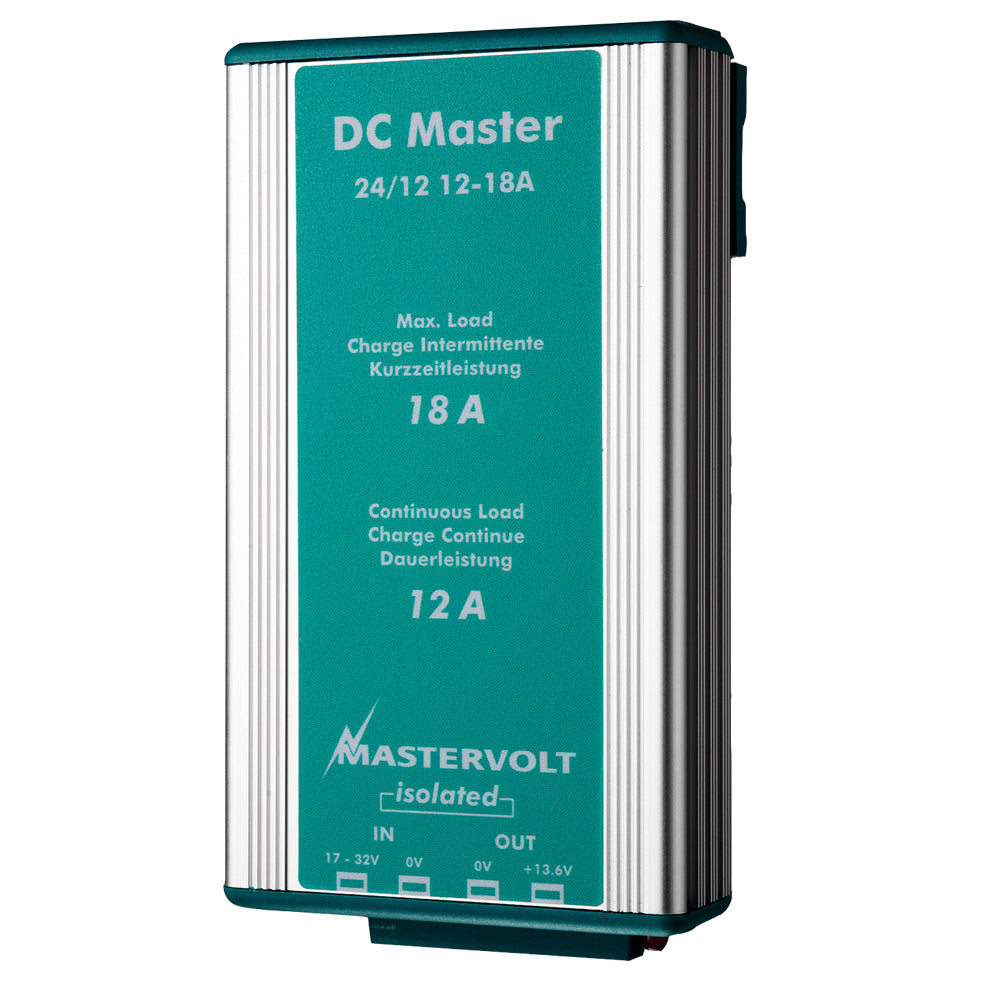

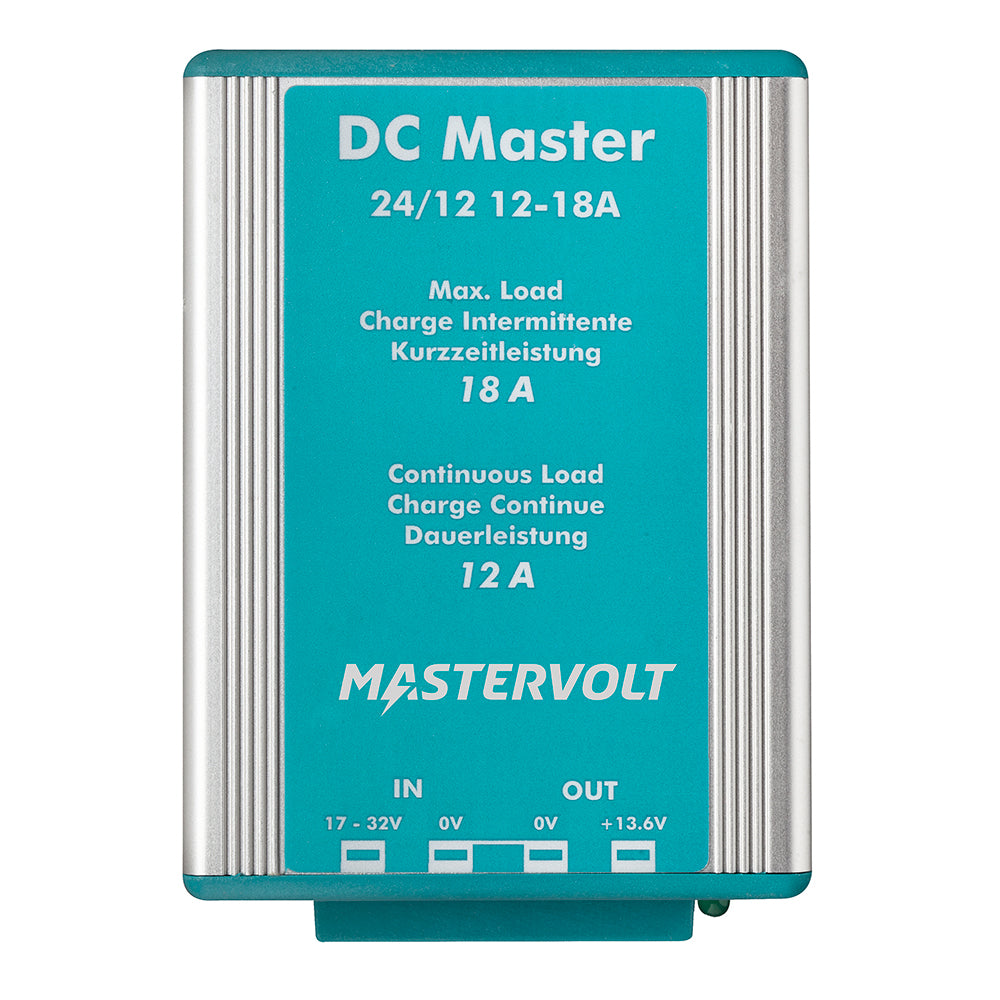

Mastervolt DC Master 24V to 12V Converter - 12 Amp
Mastervolt DC Master 24V to 12V Converter - 12 Amp is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The DC Master 24V to 12V Converter by Mastervolt is the ideal solution for marine and boating enthusiasts seeking a reliable and efficient power supply. Designed to seamlessly integrate into your vessel’s electrical system, this converter ensures you have the dependable power you need for all your onboard equipment.
Key Features
- Optimized for both recreational and semi-professional marine use

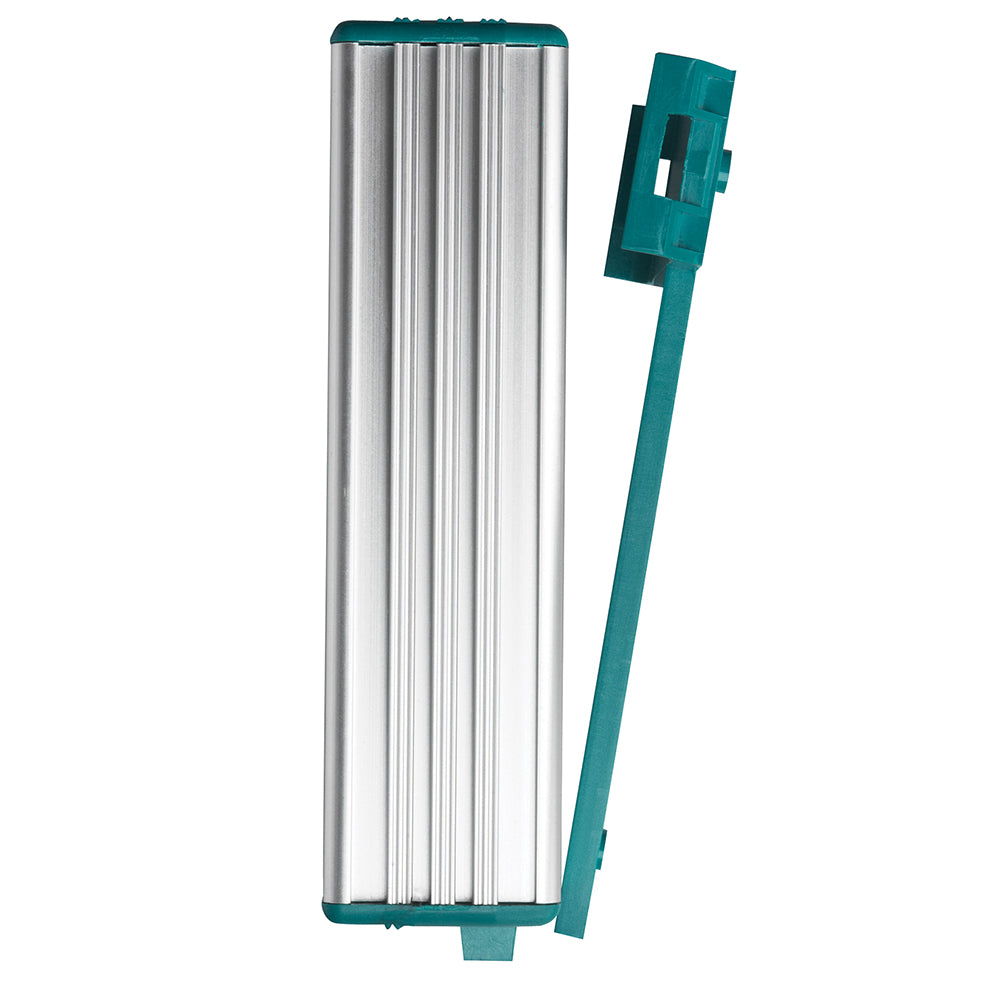

- Easy installation with included mounting bracket, screws, and fasteners
- Advanced smart electronics minimize heat generation for enhanced safety
- Continuous output of 12 Amps ensures steady power for all devices
- Provides two minutes of additional power for short-term power boosts
- Exceptional price-to-performance ratio for maritime applications
Why Choose Mastervolt DC-DC Converters?
Mastervolt's DC-DC converters are engineered to meet the varying voltage requirements of marine equipment. Whether your boat operates on a 24V or 12V battery system, our compact and custom-built converters deliver stable and precise power, ensuring all your onboard devices function flawlessly.
General Specifications
| Parameter | Specification |
|---|---|
| Nominal Output Voltage | 13.6 V |
| Maximum Output Power | 245 W |
| Nominal Output Power | 164 W |
| Maximum Output Current (for 2 min. intervals) | 18 A |
| Continuous Output Current | 12 A |
| Nominal Input Voltage | 24 V |
| Input Voltage Range | 20-32 V DC (35 V max.) |
| Galvanic Isolation | No |
| Stabilized | Yes |
| Dimensions (HxWxD) | 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inches |
| Weight | 0.405 kg 0.9 lb |
| Compliance | CE |
Technical Specifications
- DC Consumption: < 15 mA
- Connections: Fast-on connectors for secure and quick hookups
- Temperature Range (Ambient): -25 °C to 80 °C, derating > 30
- Cooling: Natural cooling to prevent overheating
- Protection Degree: IP53 for enhanced durability in marine environments
Safety and Compliance
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Specifications
| Specification | Details |
|---|---|
| Charger Input Voltage | 24 V |
| Charger Output Amps | 12 A |
| Charger Output Voltage | 12 V |
| Box Dimensions | 2"H x 4"W x 6"L |
| Weight | 0.95 lbs |
| UPC | 852968002806 |
