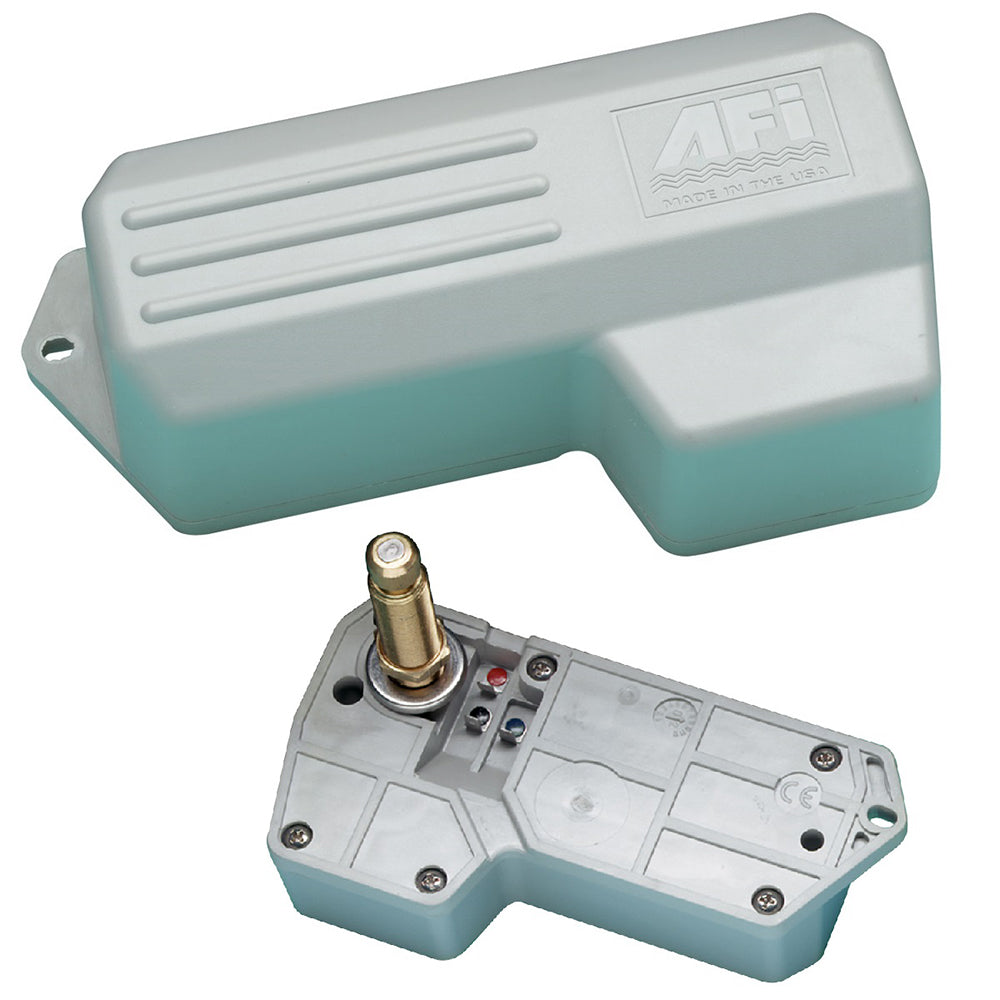

Marinco Wiper Motor 1000 Series - 12V - 2.5" Shaft - 80

The 1000 Series Waterproof Wiper Motor is engineered specifically for marine and boating applications, ensuring reliable performance in harsh marine environments. With its robust construction and versatile functionality, it provides seamless operation for your vessel's windshield wipers, enhancing visibility and safety during your voyages.

Key Features

• Adjustable Sweep Angles: Factory pre-set to 80° or 110°, adjustable to 50°, 65°, 80°, or 110°, allowing customized wiper coverage to suit varying weather conditions.
• Durable Construction: Crafted from UV stabilized, high-temperature, high-impact thermoplastic for maximum resistance against the corrosive marine environment.
• Efficient Power: 12-volt heavy-duty motor designed to handle the demanding needs of marine applications with an anti-rotation drive shaft for enhanced durability.
• Precision Drive System: Features a knurled 0.625" diameter shaft (16 mm) and a solid brass arm drive nut for smooth and reliable wiper movement.
• Advanced Parking Mechanism: Coast to park with adjustable right or left self-parking ensures wipers return to the optimal position after use.
• Safety and Protection: Includes an RF shielded circuitry to prevent interference from other marine electronics, ensuring uninterrupted wiper operation.
• Easy Installation: Available in two shaft lengths: 1.5" and 2.5" (includes 0.5" length of knurled arm fitting) to fit a variety of marine windshield setups.
• Comprehensive Package: Retail version includes a 5-amp fuse and holder for added electrical protection (on/off switch not included).

Specifications

Parameter	Details
Voltage	12V
Shaft Diameter	0.625" (16 mm)
Shaft Length	1.5" and 2.5"
Housing Dimensions	6.625" L x 3.375" W x 2" D
Weight	1.75 lbs
Stall Torque	55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall Current	9.8-10.0 amps
No Load Current	0.8-1.2 amps+

Compatibility

The 1000 Series Wiper Motor is compatible with:

• 18" Deluxe arm and 18" Deluxe blade combinations at sweep sets of 80° or less
• 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110°

Why Choose the 1000 Series Wiper Motor for Your Boat?

Designed to withstand the rigorous demands of marine environments, the 1000 Series ensures your windshield wipers perform reliably even in the toughest conditions. Its waterproof and sealed housing protects against saltwater corrosion, while the adjustable sweep angles provide optimal visibility during rain, spray, or fog. Invest in the 1000 Series Wiper Motor for enhanced safety and performance on every voyage.
