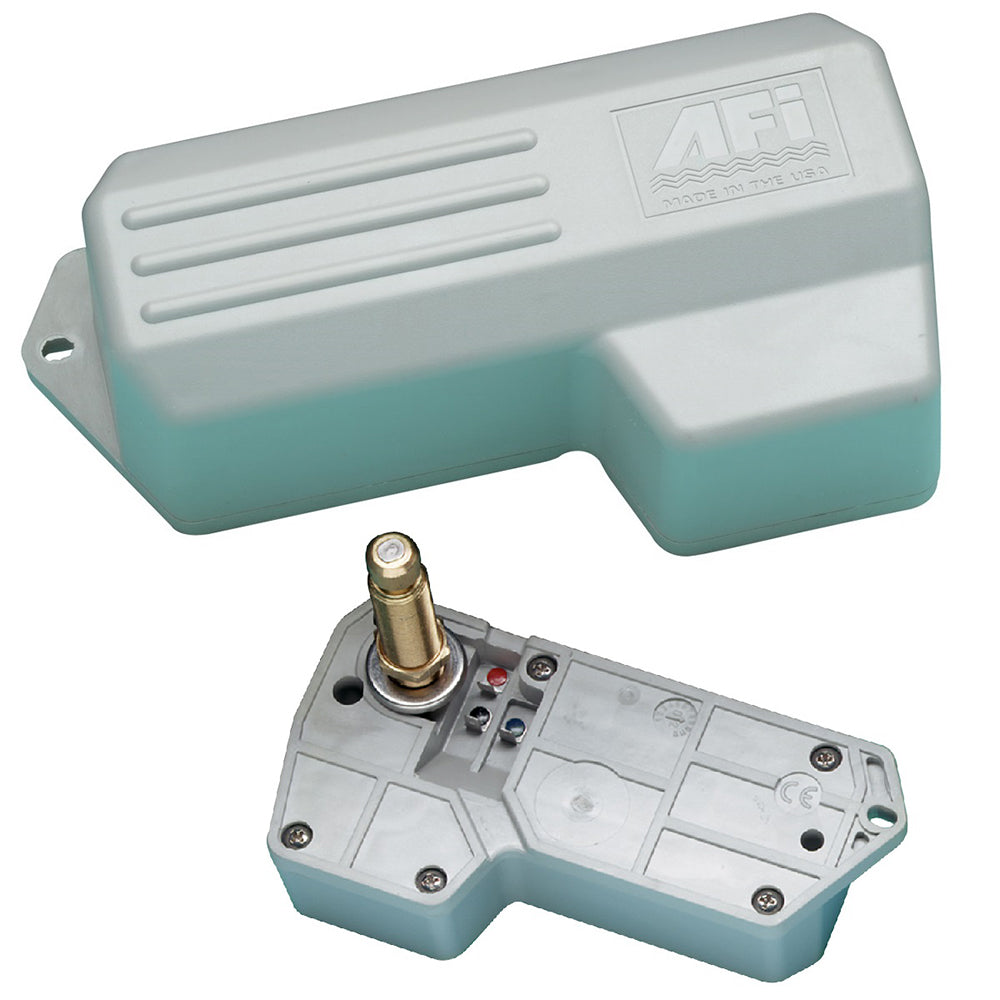

Marinco Wiper Motor 1000 Series - 12V - 2.5" Shaft - 110

The 1000 Series Marine Wiper Motor is specifically designed to withstand the harsh marine environment, ensuring reliable performance for your boat’s windshield wipers. With its robust construction and versatile features, this 12V motor provides smooth and efficient wiping action, making it an essential component for maintaining clear visibility on the water.

Key Features

• Factory pre-set sweep angles of 80° or 110°, adjustable to 50°, 65°, 80°, or 110°
• Durable 0.625" (16 mm) diameter shaft
• 12V heavy-duty motor equipped with an anti-rotation drive shaft
• Knurled drive shaft paired with a solid brass arm drive nut for secure attachment
• Coast to park functionality with adjustable right or left self-parking
• Includes a 5 amp fuse and holder in the retail version (on/off switch not included)
• RF shielded circuitry to prevent interference
• Lightweight design at 1.75 lbs
• Available shaft lengths: 1.5" and 2.5" (includes 0.5" length of knurled arm fitting)
• Compact dimensions: approximately 6.625" L x 3.375" W x 2" D
• High stall torque of 55 in-lbs (6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps+

Technical Specifications

Voltage	12V
Shaft Diameter	0.625" (16 mm)
Shaft Lengths Available	1.5" and 2.5" (includes 0.5" knurled arm fitting)
Dimensions	6.625" L x 3.375" W x 2" D
Weight	1.75 lbs
Stall Torque	55 in-lbs (6.2 Nm)
Stall Current	9.8-10.0 amps
No Load Current	0.8-1.2 amps+

Application and Compatibility

The 1000 Series Wiper Motor is ideal for marine applications, providing reliable performance for various boat windshield wiper setups. It is compatible with:

• 18" Deluxe arm and 18" Deluxe blade combinations with sweep angles of 80° or less
• 16" Deluxe arm and 16" Deluxe blade combinations with sweep angles of 110°

Installation and Usage

Installing the 1000 Series Marine Wiper Motor is straightforward, thanks to its user-friendly design. The knurled drive shaft and solid brass arm drive nut ensure a secure and easy attachment to your wiper arms. With adjustable sweep angles and coast-to-park functionality, you can customize the wiper operation to suit your specific needs.

Durability and Protection

Built with a fully sealed waterproof housing made from UV-stabilized, high-temperature, high-impact thermoplastic, this wiper motor is designed to endure the demanding conditions of the marine environment. The RF shielded circuitry adds an extra layer of protection against electrical interference, ensuring consistent performance.

What's Included

• 1000 Series Wiper Motor
• 5 amp fuse and holder (retail version only)
• Installation instructions

Customer Support

Our dedicated support team is here to assist you with any questions or issues you may encounter during installation or usage. Ensure your boating experience remains smooth and safe with our reliable marine wiper motor solutions.
