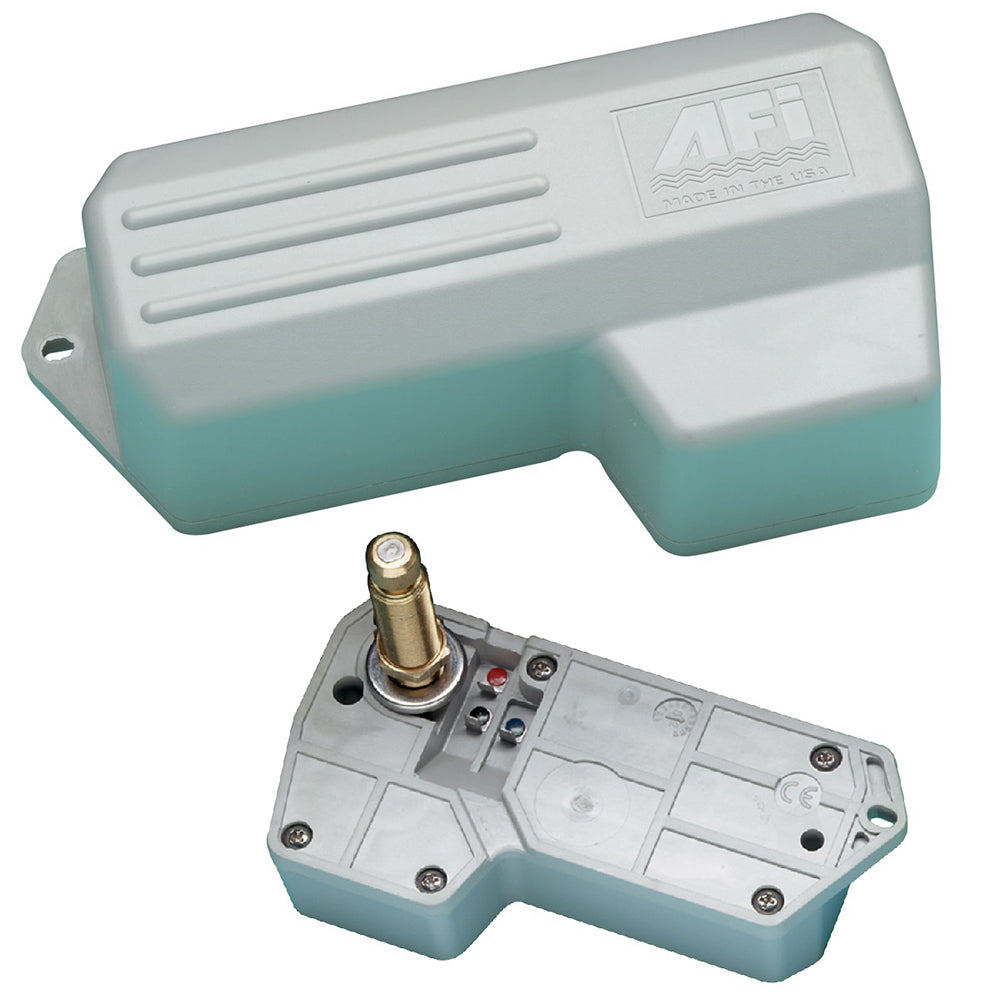

Marinco Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80

Ensure clear visibility on your vessel with the 1000 Series Waterproof Wiper Motor, specifically engineered for marine environments. Its durable construction and reliable performance make it the perfect choice for boating enthusiasts seeking dependable windshield wiper functionality.

Product Overview

The 1000 Series Wiper Motor features a fully sealed waterproof housing crafted from UV-stabilized, high-temperature, high-impact thermoplastic. Designed to withstand the harsh conditions of marine settings, this 12V heavy-duty motor powers both 18" and 16" Deluxe arm and blade combinations, providing smooth and efficient wiping action.

Features

• Adjustable Sweep Angles: Factory pre-set to 80° or 110°, adjustable to 50°, 65°, 80°, or 110° to fit various windshield sizes and shapes.
• Durable Shaft: Equipped with a 0.625" diameter (16 mm) knurled drive shaft and solid brass arm drive nut for secure and lasting connections.
• Heavy-Duty Performance: 12V motor with an anti-rotation drive shaft ensures consistent operation even in demanding marine conditions.
• Coast to Park: Features adjustable right or left self-parking, allowing the wipers to return to a preferred side when not in use.
• Electrical Protection: Includes a 5 amp fuse and holder for enhanced safety (on/off switch not included).
• RF Shielded Circuitry: Minimizes interference with other onboard electronic systems, ensuring smooth operation.
• Lightweight Design: Weighs only 1.75 lbs, making installation and maintenance hassle-free.

Specifications

Voltage	12V
Shaft Diameter	0.625" (16 mm)
Shaft Length	Available in 1.5" and 2.5" (includes 0.5" length of knurled arm fitting)
Dimensions	6.625" L x 3.375" W x 2" D
Weight	1.75 lbs
Stall Torque	55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall Current	9.8-10.0 amps
No Load Current	0.8-1.2 amps+

Compatibility

The 1000 Series Wiper Motor is compatible with:

• 18" Deluxe arm and 18" Deluxe blade combinations at sweep sets of 80° or less
• 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110°

What's Included

• 1000 Series Waterproof Wiper Motor
• 5 amp fuse and holder
• Optional shaft lengths (1.5" or 2.5")

Installation Instructions

Installing the 1000 Series Wiper Motor is straightforward. Follow these steps to ensure optimal performance:

1. Secure the motor to your vessel’s windshield frame using the provided mounting hardware.
2. Connect the drive shaft to the wiper arm, ensuring the knurled drive shaft and brass arm drive nut are tightly fastened.
3. Wire the motor to your boat’s electrical system, incorporating the included 5 amp fuse and holder for protection.
4. Adjust the sweep angle to your preference using the adjustable settings.
5. Test the wipers to confirm proper operation and adjust the self-parking direction as needed.

Why Choose the 1000 Series Wiper Motor?

Designed with marine enthusiasts in mind, the 1000 Series Wiper Motor offers exceptional durability, versatility, and performance. Its waterproof construction ensures reliable operation in all weather conditions, while the adjustable sweep angles provide customized coverage for any windshield size. Invest in the 1000 Series Wiper Motor to maintain clear visibility and enhance your boating experience.
