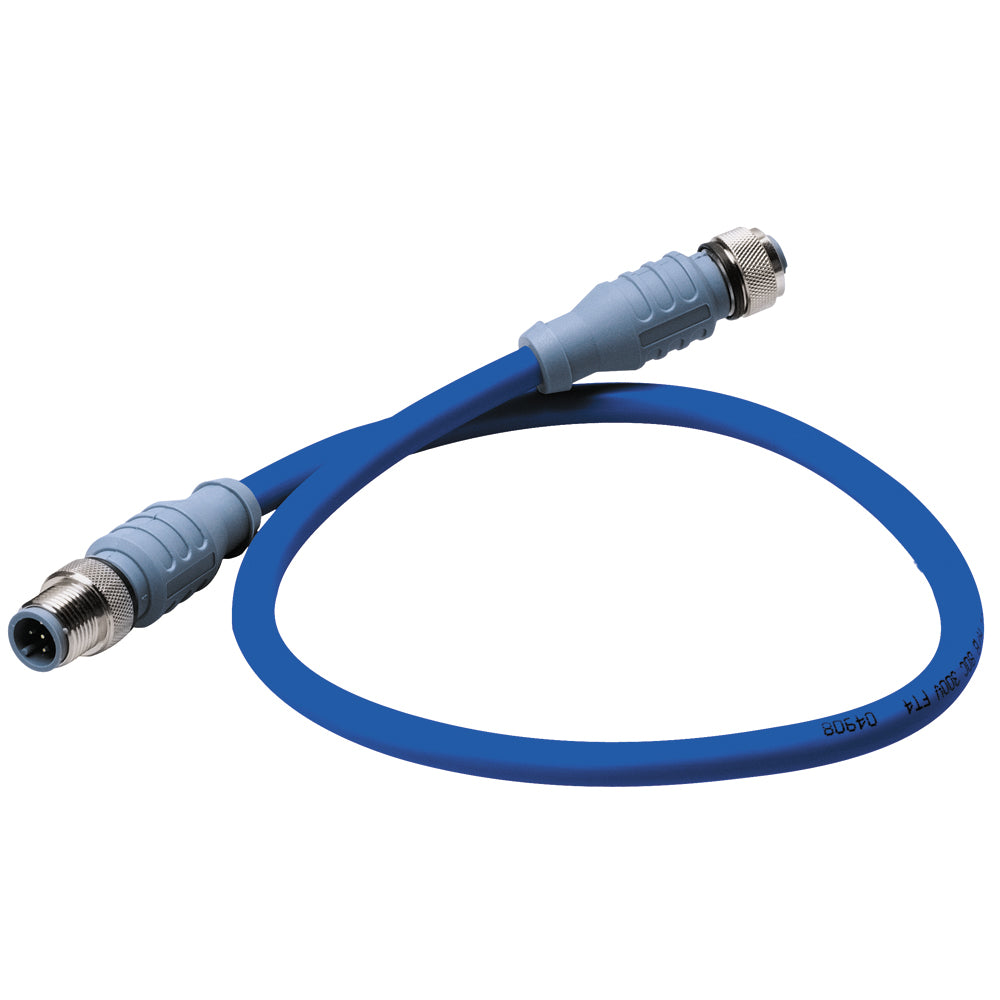

Maretron Mid Double-Ended Cordset - 6 Meter - Blue

The Maretron Mid Double-Ended Cordset - 6 M Blue is an essential component for marine and boating applications, providing reliable and high-performance connectivity between your onboard devices. Designed to withstand the harsh marine environment, this cordset ensures seamless communication and power transmission, enhancing the safety and functionality of your vessel.

Mechanical Features

• Contact Carrier Material/Color: Thermoplastic PUR in Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR in Blue-Gray
• Contact Material/Plating: Brass with Gold Plating
• Coupling Nut Material/Plating: Brass with Nickel Plating
• Connector Outside Diameter: 0.59 inches

Electrical Specifications

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Details

Feature	Specification
Outer Jacket Material/Color	PVC in Gray
Conductor Insulation Material	PE (data pair), PVC (power pair)
Number of Conductors	2x16 AWG (1.29mm) for power, 2x20 AWG (0.81mm) for data, and 20 AWG (0.81mm) Drain Wire
Shielding (3 Levels)	Foil shielding overall, foil shielding for power pair, and foil shielding for data pair

Environmental Ratings

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Approvals

• UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3 Compliant

Specifications

Attribute	Details
Cable Length	20 feet
Box Dimensions	1" H x 6" W x 6" L
Weight	1.4 lbs
UPC	873804001951

Why Choose the Maretron Mid Double-Ended Cordset?

When outfitting your vessel with reliable and durable electrical connections, the Maretron Mid Double-Ended Cordset stands out as a top choice. Its robust construction with high-quality materials ensures longevity and resistance to marine elements such as saltwater, UV exposure, and temperature fluctuations. The double-ended design facilitates easy installation and connectivity between multiple devices, making it a versatile addition to any marine electrical system.

Installation and Compatibility

Designed for ease of installation, this cordset seamlessly integrates with the Maretron NMEA 2000 network, ensuring consistent and accurate data transmission across your onboard devices. Its comprehensive shielding minimizes electromagnetic interference, providing clear and reliable signals essential for navigational and monitoring equipment.

Customer Reviews

Our customers appreciate the Maretron Mid Double-Ended Cordset for its dependable performance and excellent build quality. Many highlight its straightforward installation process and the peace of mind that comes with knowing their marine electrical connections are secure and weather-resistant.

Conclusion

Investing in the Maretron Mid Double-Ended Cordset - 6 M Blue ensures that your marine electrical system remains efficient, safe, and reliable. Whether you're a seasoned mariner or a boating enthusiast, this cordset provides the quality and performance needed to keep your vessel running smoothly.
