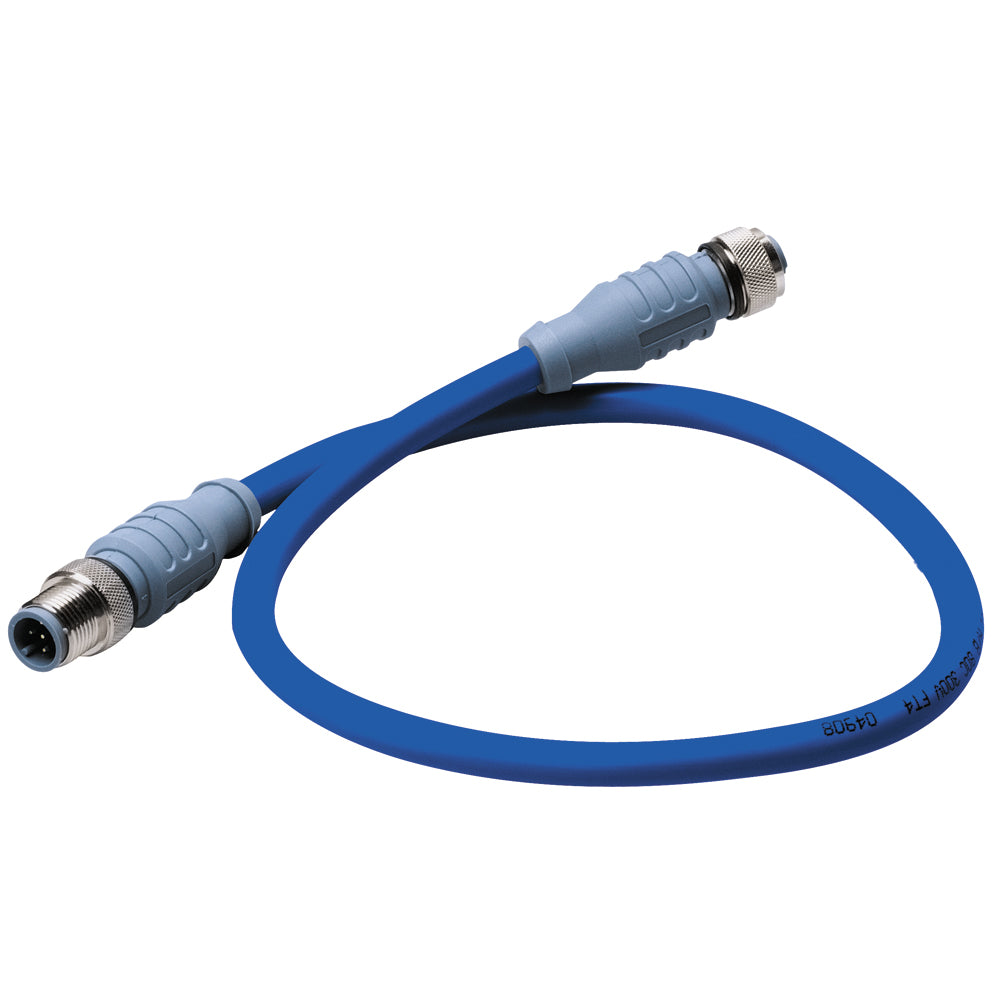

Maretron Mid Double-Ended Cordset - 4 Meter - Blue

The Maretron Mid Double-Ended Cordset - 4 M Blue is a high-performance solution tailored for marine and boating applications. Engineered with premium materials and advanced shielding, this cordset ensures reliable data communication and power transmission even in the most demanding marine environments.

Mechanical Specifications

Component	Material / Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat / Plating	Brass / Gold
Coupling Nut Mat / Plating	Brass / Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Rating
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Details

Feature	Description
Outer Jacket Material / Color	PVC / Gray
Conductor Insulation Material	PE (data pair), PVC (power pair)
Number of Conductors	2x16 (1.29mm) AWG Data 2x20 (0.81mm) AWG 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels)	Foil (Overall) Foil (Power Pair) Foil (Data Pair)

Environmental Protection

Specification	Details
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Certifications & Approvals

• Cable UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• Cable CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

Product Specifications

Specification	Details
Cable Length	13' (4 M)
Box Dimensions	1" H x 7" W x 10" L
Weight	1 lb
UPC	873804001937
