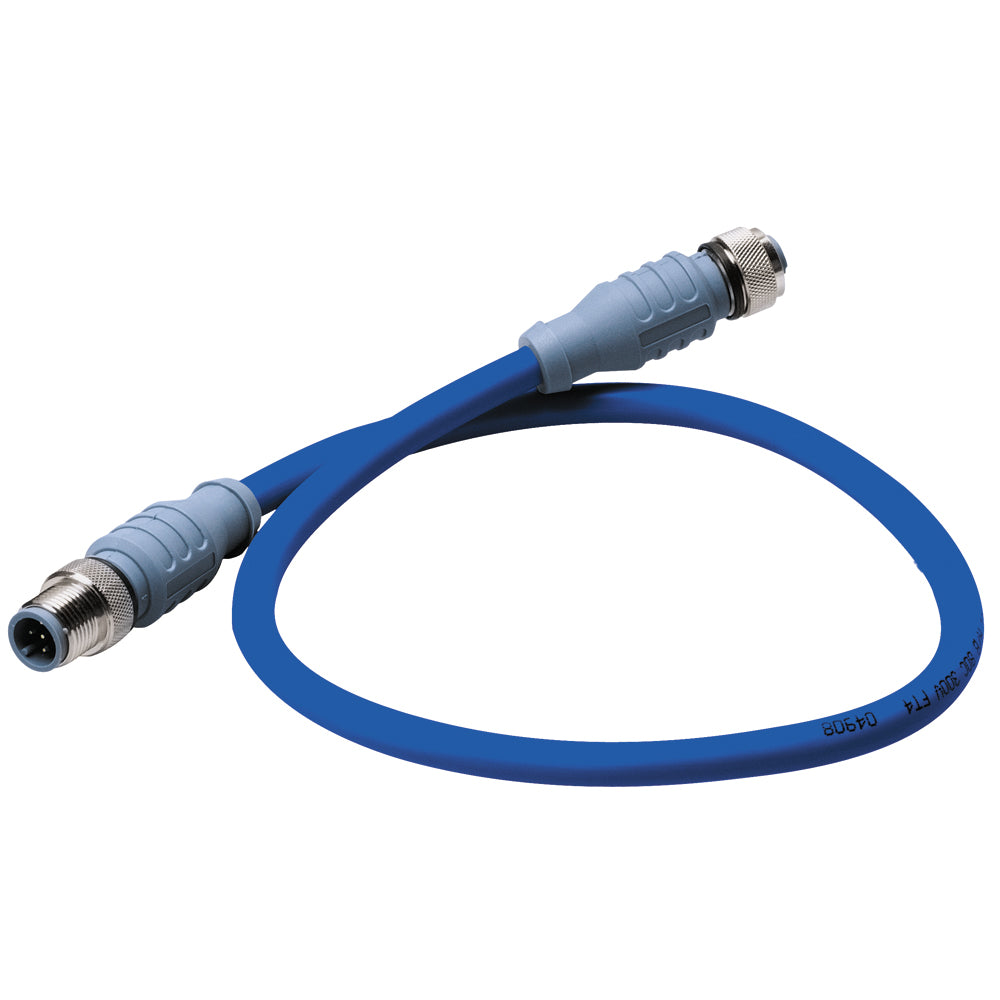

Maretron Mid Double-Ended Cordset - 3 Meter - Blue

The Maretron Mid Double-Ended Cordset - 3 M Blue is a crucial accessory for marine and boating applications, ensuring seamless and reliable connections between your Maretron electronic devices. Engineered to endure the demanding conditions of the marine environment, this cordset guarantees optimal performance and durability, enhancing your vessel's monitoring and control systems.

Mechanical Features

Component	Material / Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat / Plating	Brass / Gold
Coupling Nut Mat / Plating	Brass / Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Rating
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Construction

Feature	Specification
Outer Jacket Material / Color	PVC / Gray
Conductor Insulation Material	PE (data pair), PVC (power pair)
Number of Conductors	2x16 AWG (1.29mm) – Power 2x20 AWG (0.81mm) – Data 20 AWG (0.81mm) – Drain Wire
Shielding	Three Levels: Foil (Overall), Foil (Power Pair), Foil (Data Pair)

Environmental Ratings

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Certifications & Approvals

• UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

Product Specifications

Specification	Details
Cable Length	10 Feet
Box Dimensions	1" H x 7" W x 9" L
Weight	0.7 lbs
UPC	873804001920
