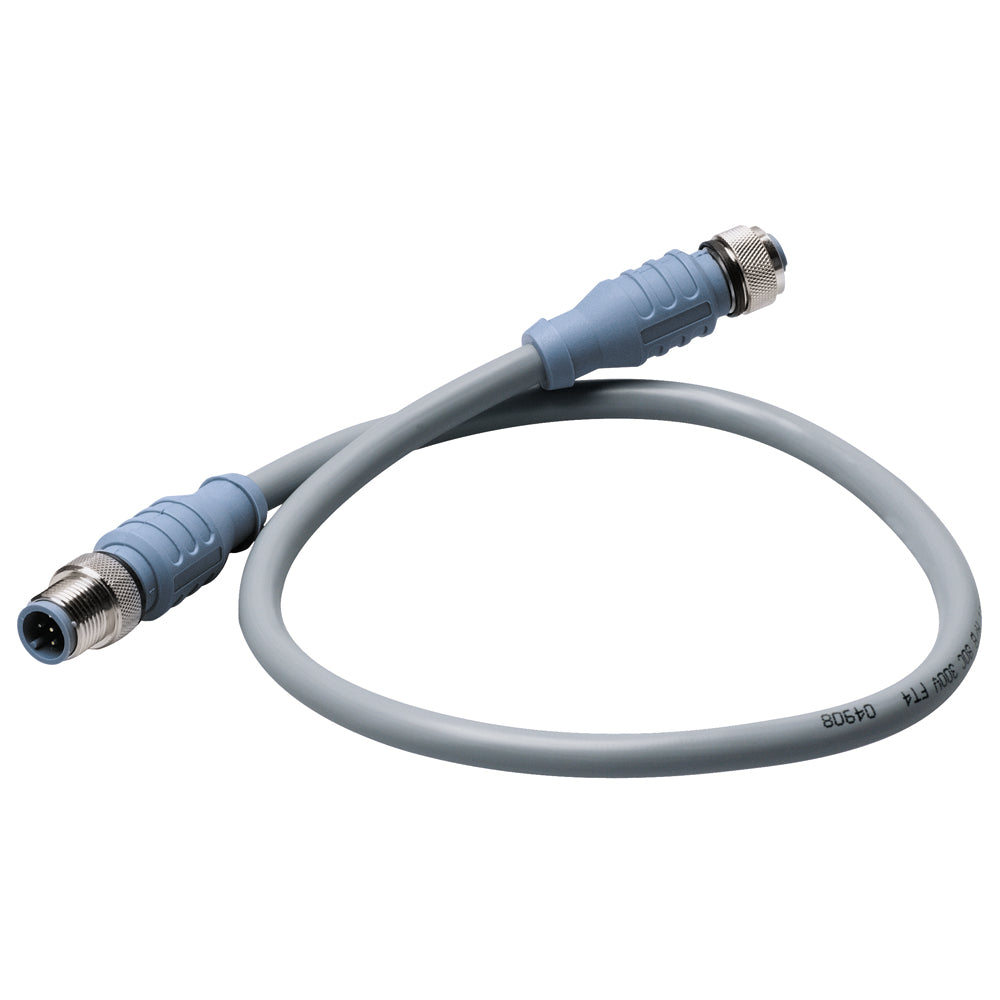

Maretron Mid Double-Ended Cordset - 0.5 Meter - Gray

The Maretron Mid Double-Ended Cordset - 0.5M Gray is a premium-grade electrical connector designed specifically for marine and boating applications. Engineered for durability and performance, this cordset ensures seamless and reliable connections between your marine electronics systems, even in the most demanding environments.

Product Overview

The Maretron Mid Double-Ended Cordset features a robust construction with high-quality materials to withstand the harsh conditions found on boats and yachts. Its double-ended design allows for easy and secure connections, reducing the risk of loose connections and ensuring consistent performance of your onboard systems.

Technical Specifications

Mechanical Features

Component	Material / Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat / Plating	Brass / Gold
Coupling Nut Mat / Plating	Brass / Nickel
Connector Outside Diameter	0.59 inches

Electrical Specifications

Specification	Details
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Details

Feature	Description
Outer Jacket Material / Color	PVC / Gray
Conductor Insulation Material	PE (Data Pair), PVC (Power Pair)
Number of Conductors	2x16 AWG (1.29mm) for power, Data 2x20 AWG (0.81mm), 20 AWG Drain Wire (0.81mm)
Shielding	Overall: Aluminum/Polyester Foil Power Pair: Foil Data Pair: Foil

Environmental Ratings

Feature	Details
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Certifications & Approvals

• Cable UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• Cable CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA 2000 Approved
• IEC 61162-3 Compliant

Dimensions and Packaging

Specification	Details
Cable Length	2 feet
Box Dimensions	1" H x 5" W x 7" L
Weight	0.15 lbs
UPC	873804001760

Why Choose Maretron?

Maretron is renowned in the marine industry for delivering high-quality, reliable products that meet the rigorous demands of life at sea. The Mid Double-Ended Cordset is no exception, offering superior performance, unparalleled durability, and comprehensive environmental protection. Whether you're installing new electronics or upgrading your existing system, this cordset is the perfect choice to ensure your marine systems operate flawlessly.
