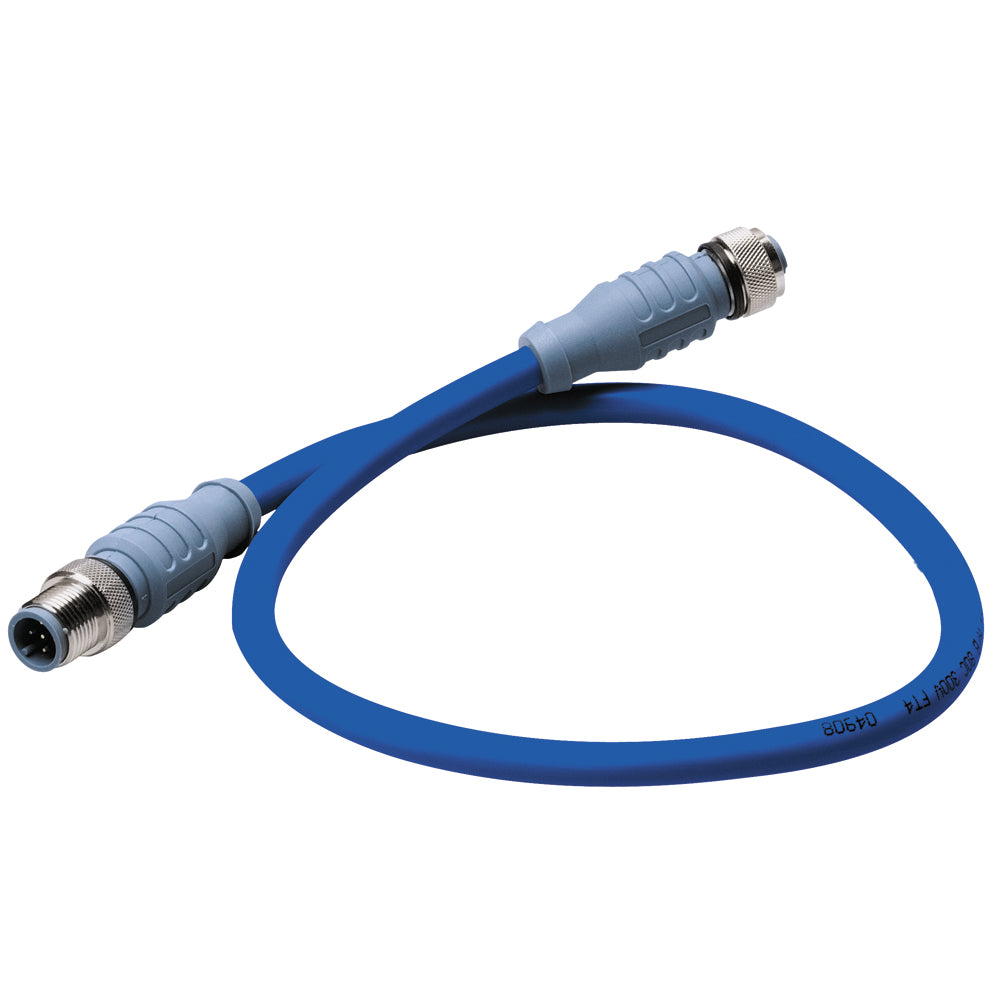

Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue

The Maretron Mid Double-Ended Cordset in vibrant blue is engineered for seamless and reliable connections in marine and boating environments. Whether you're outfitting your vessel's electrical systems or integrating advanced marine electronics, this cordset provides the durability and performance needed to withstand the harsh conditions at sea.

Key Features

Mechanical Specifications

• Contact Carrier Material/Color: Thermoplastic PUR in Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR in Blue-Gray
• Contact Material/Plating: Brass with Gold Plating for enhanced conductivity
• Coupling Nut Material/Plating: Brass with Nickel Plating for corrosion resistance
• Connector Outside Diameter: 0.59 inches

Electrical Specifications

• Current Rating: 4.0 Amps, suitable for various marine electronics
• Voltage Rating: 250 V, ensuring safe and efficient power transmission

Cable Details

• Outer Jacket Material/Color: Durable PVC in Gray, designed to resist abrasion and environmental factors
• Conductor Insulation: PE (Polyethylene) for data pairs and PVC (Polyvinyl Chloride) for power pairs, providing optimal insulation for different wire types
• Number of Conductors:
  • 2x16 AWG (1.29mm) for power
  • Data: 2x20 AWG (0.81mm)
  • Drain Wire: 20 AWG (0.81mm)
• Shielding:
  • Overall Foil Shielding for maximum interference protection
  • Foil Shielding for Power Pairs to ensure clean power delivery
  • Foil Shielding for Data Pairs to maintain signal integrity

Environmental Ratings

• Protection Class: Complies with IEC IP68 and NEMA ratings 1, 3, 4, and 6P, ensuring protection against dust, water, and corrosion
• Temperature Range: Operational from -40°C to 80°C (-40°F to 176°F), suitable for various marine climates

Certifications and Approvals

• UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: Approved for NMEA 2000 networking, ensuring compatibility with a wide range of marine electronics
• IEC: Meets IEC 61162-3 standards for marine communication networks

Product Specifications

Attribute	Details
Cable Length	0.5 M (2 Feet)
Box Dimensions	1" H x 5" W x 6" L
Weight	0.2 lbs
UPC	873804001890

Why Choose the Maretron Mid Double-Ended Cordset?

Designed specifically for the marine industry, the Maretron Mid Double-Ended Cordset offers unmatched reliability and performance. Its high-grade materials and rigorous certifications ensure that your marine electronics stay connected and protected, no matter the conditions. Easy to install and built to last, this cordset is an essential component for any serious boater looking to maintain a robust and efficient electrical system on their vessel.
