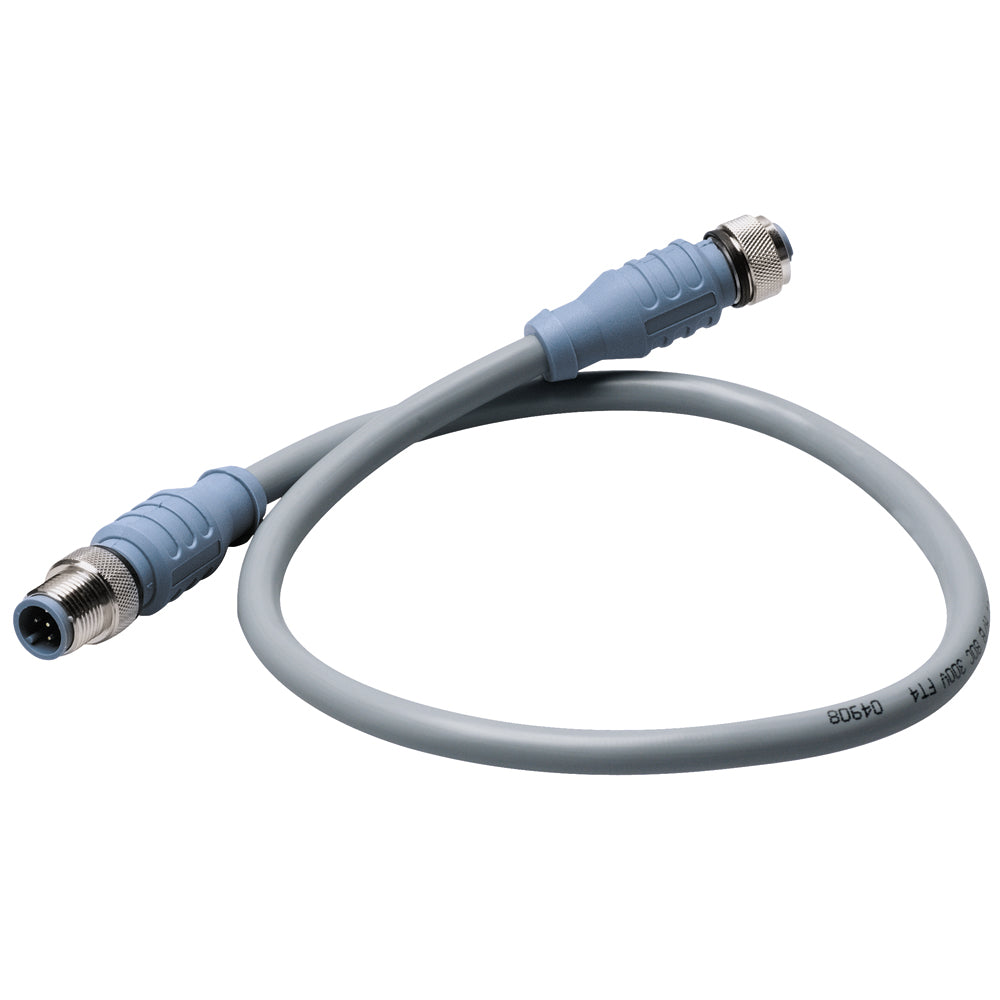

Maretron Micro Double-Ended Cordset - 0.5M

The Micro Double-Ended Cordset - 0.5M is a crucial component for marine and boating applications, offering robust connectivity and exceptional durability to withstand harsh marine environments.

Product Features

Mechanical Specifications

Feature	Specification
Contact Carrier Material/Color	Thermoplastic PUR / Blue-Gray
Molded Body Material/Color	Thermoplastic PUR / Blue-Gray
Contact Material/Plating	Brass / Gold
Coupling Nut Material/Plating	Brass / Nickel
Connector Outside Diameter	0.59" Electrical
Current Rating	4.0 Amps
Voltage Rating	250 V Cable
Outer Jacket Material/Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4x22 AWG, 22 AWG Drain Wire
Shielding (3-Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Ratings

Feature	Specification
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40° C to 80° C (-40° F to 176° F)
Cable UL Approvals	PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
Cable CSA Approvals	CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
NMEA	NMEA 2000 Approved

Technical Specifications

Specification	Detail
Cable Length	2 feet
Data Interface	NMEA 2000
Box Dimensions	1" H x 5" W x 5" L
Weight	0.1 lbs
UPC	873804001500
