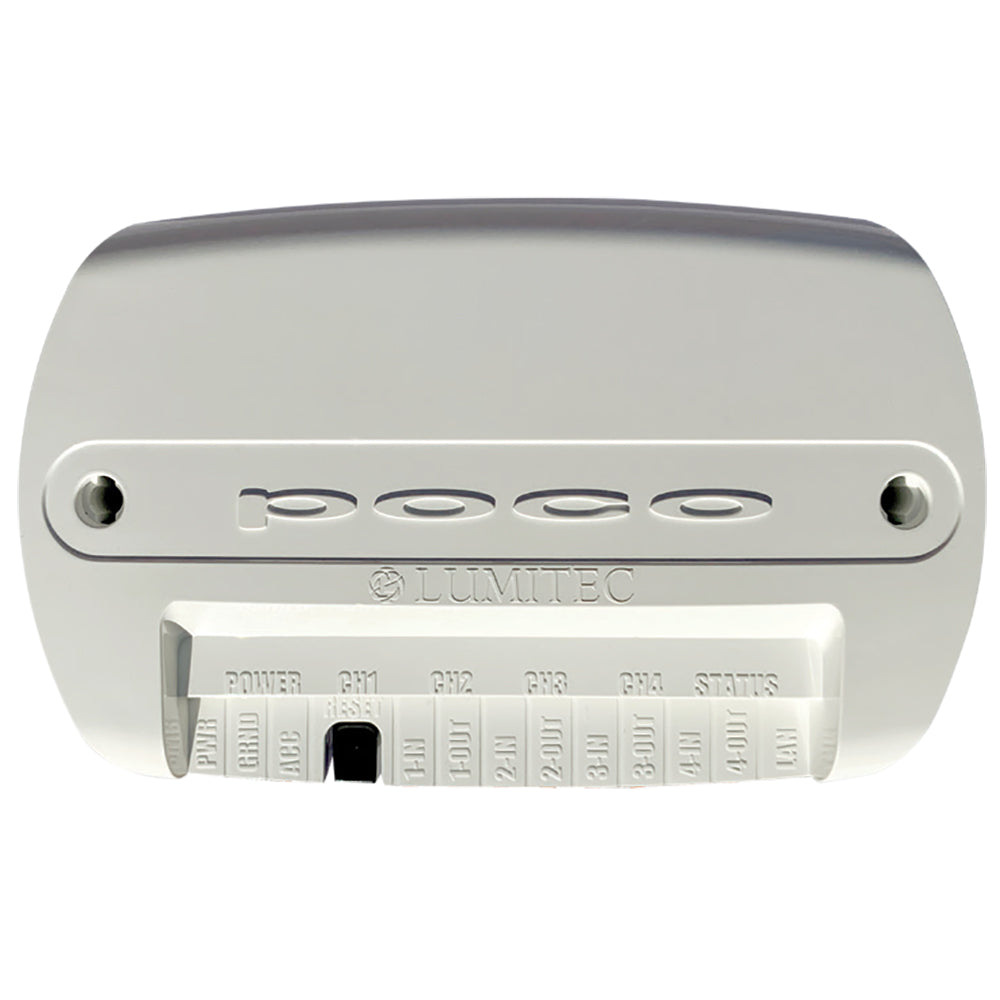

Lumitec Poco Digital Lighting Control 3.0

Poco Digital Lighting Control 3.0 is the advanced lighting management system tailored for marine and boating environments. Enjoy seamless dimming and color control of your Lumitec PLI-enabled lights directly from any compatible multifunction display (MFD) or smart device. The 3.0 version introduces enhanced wireless security, an external API for integration with third-party automation systems, and a versatile "Triggers" feature for activating virtual switches via external inputs, all within a responsive interface optimized for mobile use.

Key Features

• Comprehensive Control: Full dimming and color management for all Lumitec PLI-enabled lighting fixtures.
• Wireless Security: Enhanced security protocols to protect your lighting system from unauthorized access.
• External API: Seamless integration with networked third-party automation systems for expanded functionality.
• Triggers Feature: Activate Poco virtual switches through external inputs, allowing for customized automation scenarios.
• User-Friendly Interface: Responsive design ensures easy navigation and control via mobile devices.

Technical Specifications

Connection	Specifications
PWR	Positive 10-30 VDC POCO supply power. Fuse with a 3 Amp ATC blade fuse or equivalent. Can be Constant ON or Switched with ACC Line.
GRND	Negative 10-30 VDC POCO supply power.
ACC	Positive 10-30 VDC, low current enable line to activate POCO from remote devices (e.g., MFD). Must be powered to enable Poco.
1-4 IN	Channel Input power. Fuse each line with a 10 Amp ATC blade fuse or equivalent. Use 14 AWG 300V, 16-inch long cables.
1-4 OUT	Channel Output power to lighting circuits. Maximum 10 Amp load per channel, up to 40 Amps total. Suitable for Lumitec PLI-enabled, PWM dimmable lighting, or standard ON-OFF devices. Use 14 AWG 300V, 16-inch long cables.
LAN	10/100 Base T Local Area Network connection. Requires standard CAT-5 cable with RJ45 connector via sealed network cable adapter. Includes 18-inch cable with Link indicator light.

Indicator Lights

• POWER: Green when POCO is powered (both PWR and ACC lines have 10-30 VDC).
• CH1-4:
  • Red: Power supplied from fuse/breaker panel.
  • Green: Power supplied to channel input and channel activated within POCO controller (PLI enabled lights may be OFF).
  • Orange (Flashing): PLI data is being transmitted.
  • Orange (Solid): Channel is dimmed via PWM signal.
• STATUS:
  • WiFi: Green blinking light indicates connection status:
    • 0 blinks: WiFi disabled.
    • 1 blink: WiFi-enabled but not connected to any peers.
    • 2 blinks: WiFi connected to one or more peers.
  • Bluetooth-LE: Blue blinking light indicates connection status:
    • 0 blinks: Bluetooth-LE disabled.
    • 1 blink: Bluetooth-LE enabled but not connected.
    • 2 blinks: Bluetooth-LE connected.

Installation and Setup

Installing Poco Digital Lighting Control 3.0 is straightforward for marine settings. Ensure all connections are properly fused and use the recommended cable specifications for optimal performance and safety. Refer to the provided Quick Guide and Owner's Manual for detailed instructions.
