Lumitec  |  SKU: LOS-44468  |  Barcode: 089300103604

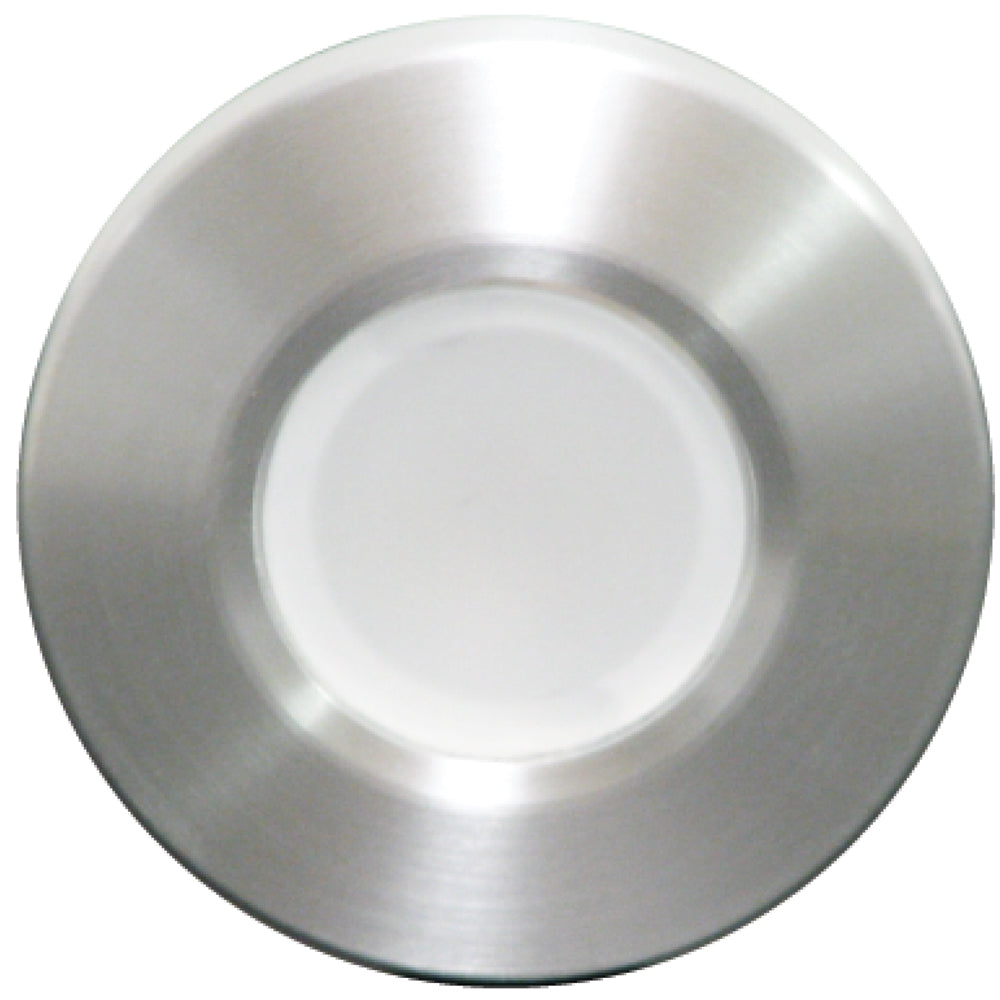

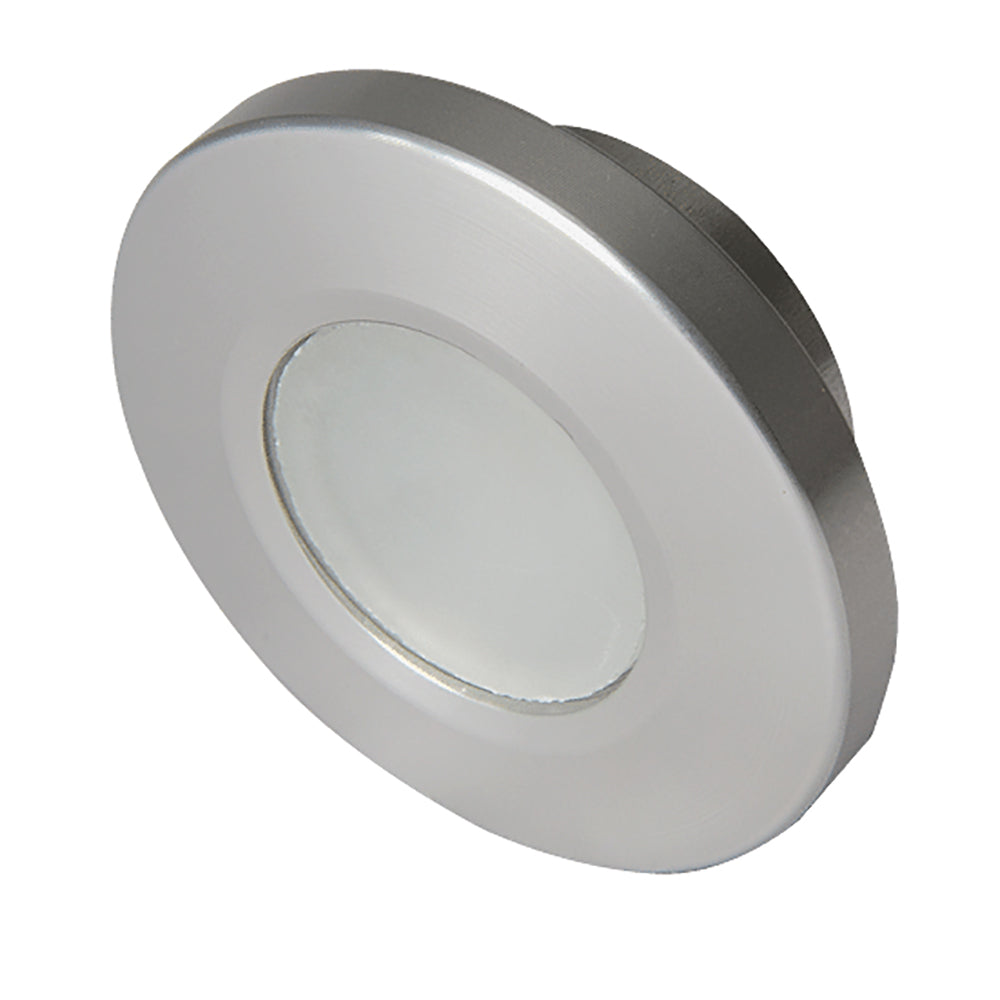

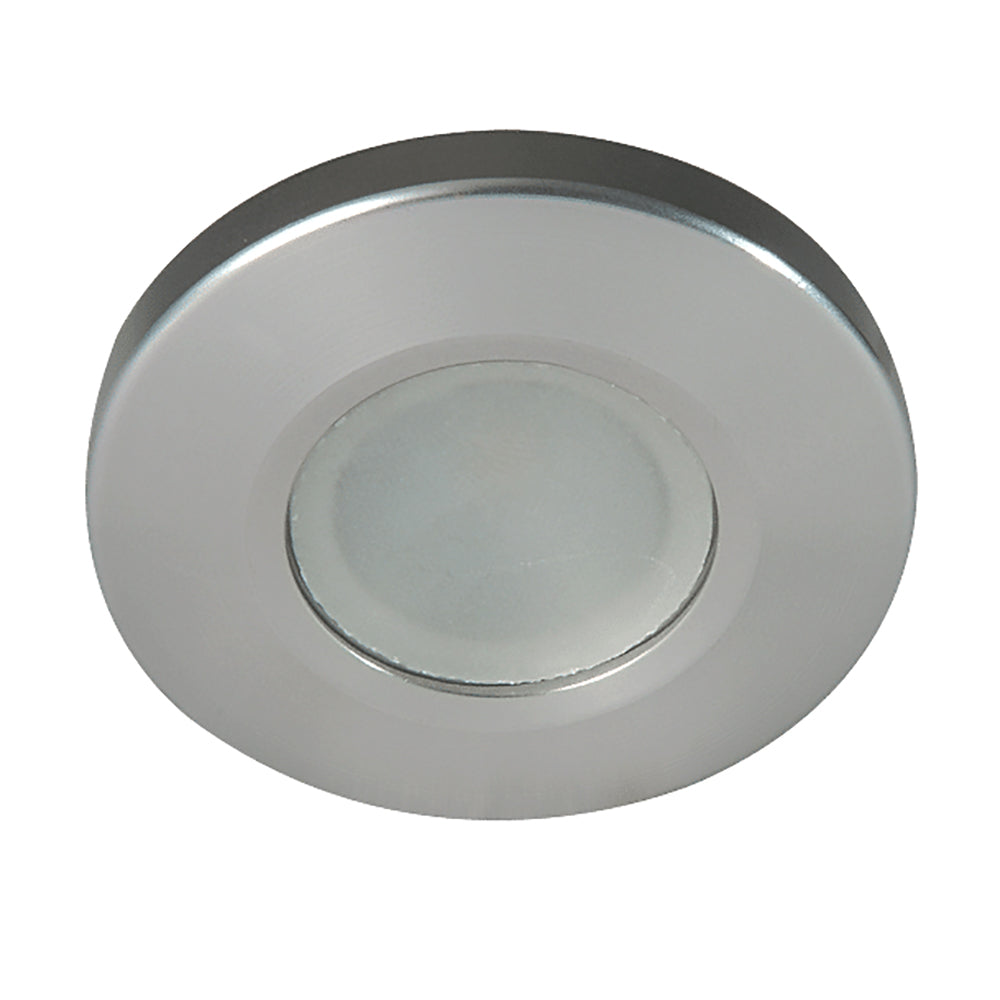

Lumitec Orbit - Flush Mount Down Light - Brushed Finish - 3-Color Blue/Red Non Dimming w/White Dimming Light

$128.09 USD $130.19

Product Description

The Orbit Flush Mount Down Light by Lumitec is specifically designed for marine and boating applications, offering superior illumination with a sleek brushed finish. Its compact, shallow-depth profile and secure composite mounting system make it an ideal choice for various onboard locations, including salons, staterooms, helm stations, flybridges, and hardtops. With IP67 weatherproofing and intelligent circuitry, the Orbit ensures reliable performance and advanced lighting features without the need for additional control modules or wiring.

Key Features

  • Class-leading light output with 136 lumens in white
  • Weatherproof construction rated IP67 for full sealing against elements
  • Shallow-depth profile (½" mounting depth) for easy installation
  • Secure composite mounting system tailored for marine environments
  • Intelligent circuitry enabling dimming and multi-color control
  • 3-color options: White (dimmable), Blue, and Red
  • Energy-efficient LED technology with low power consumption
  • Operating temperature range from -35°C to +55°C

Technical Specifications

Parameter Specification
Voltage 10 - 30V DC
Current Draw 12V DC: 300mA
24V DC: 160mA
Correlated Color Temperature (CCT) 5000K
Color Rendering Index (CRI) 70+
Rated Power 4 Watts
Lumens (White) 136 lm
Operating Temperature -35°C to +55°C
-31°F to +131°F

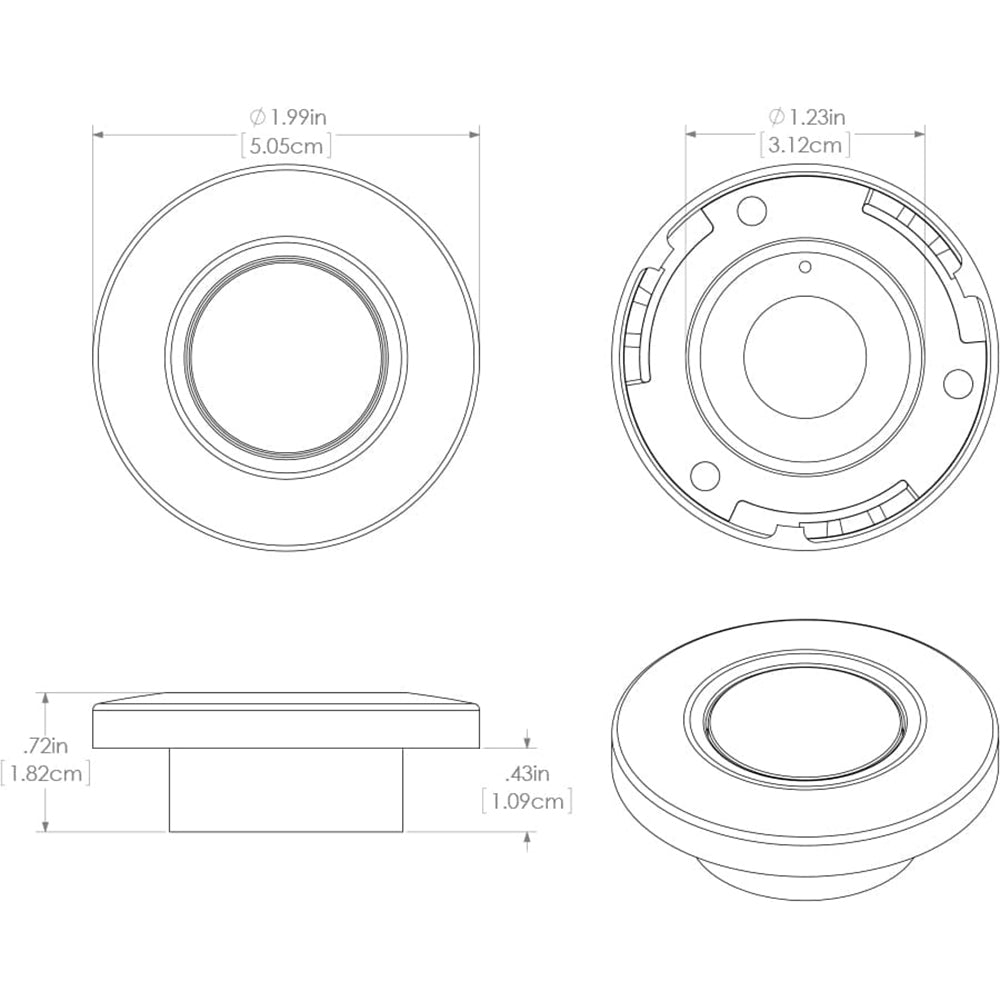

Dimensions Width: 1.99" (5.05 cm)
Height: 1.99" (5.05 cm)
Depth: 0.72" (1.82 cm)
Housing Finish Brushed
LED Colors White, Blue, Red
Box Dimensions 3"H x 3"W x 3"L
Weight 0.3 lbs
UPC 089300103604

Installation

The Orbit Flush Mount Down Light features a composite mounting system that ensures a secure and straightforward installation process. Its shallow-depth profile requires less than ½ inch of mounting depth, making it suitable for various onboard areas without the need for significant modifications. Whether installing in tight spaces like helm stations or on larger surfaces such as flybridges and hardtops, the Orbit provides a reliable and aesthetically pleasing lighting solution.

Compliance and Safety

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
